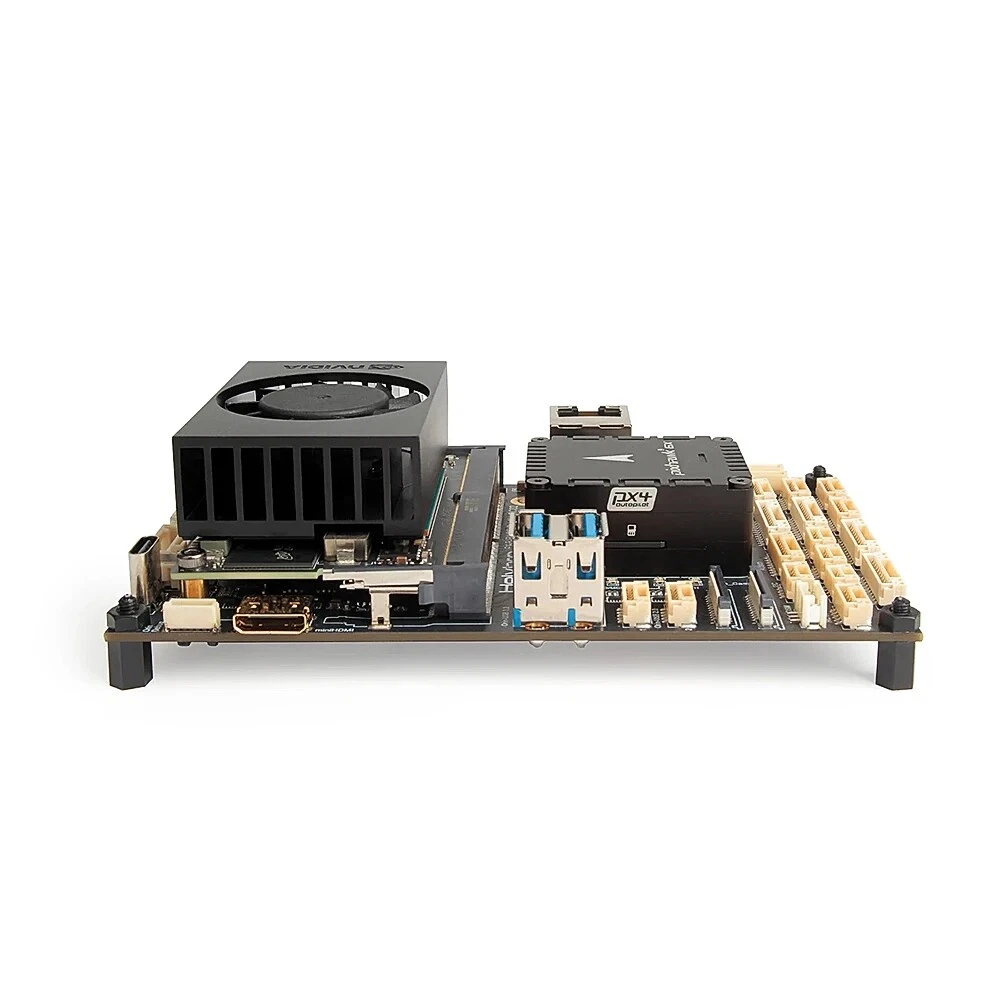

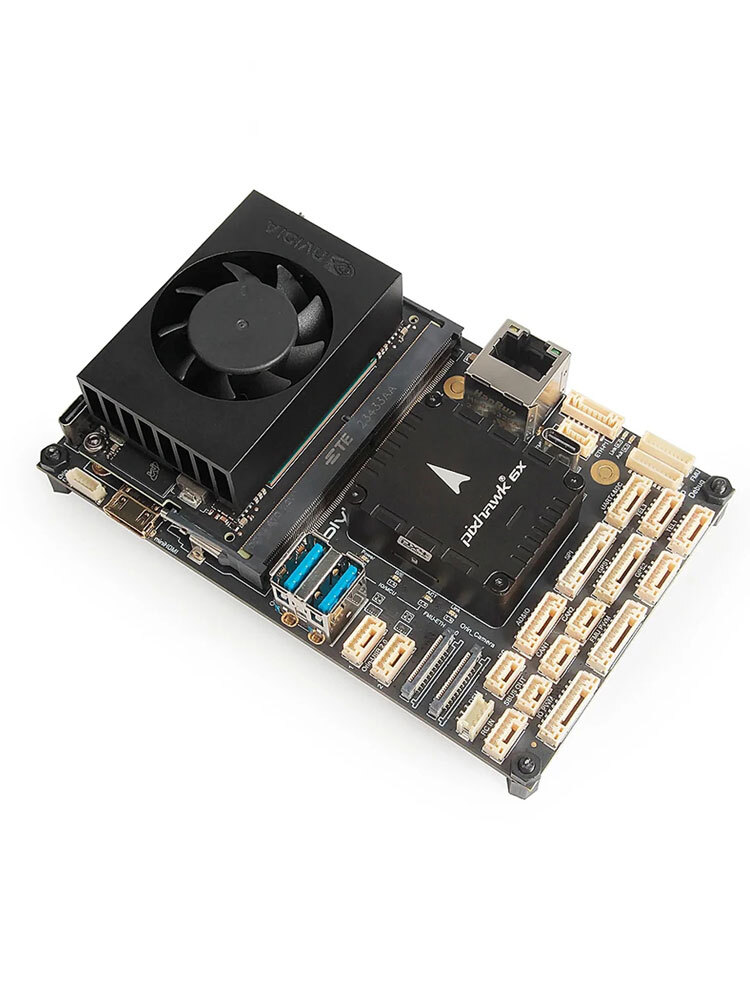

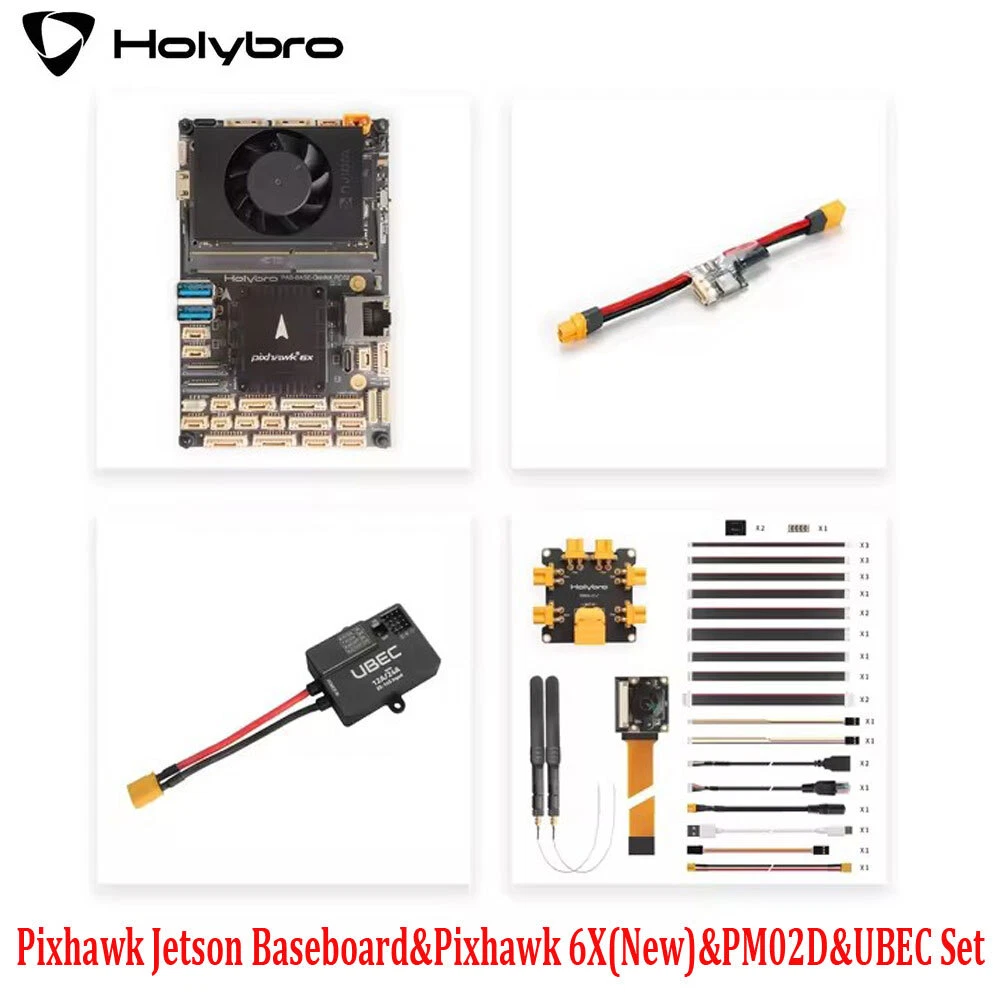

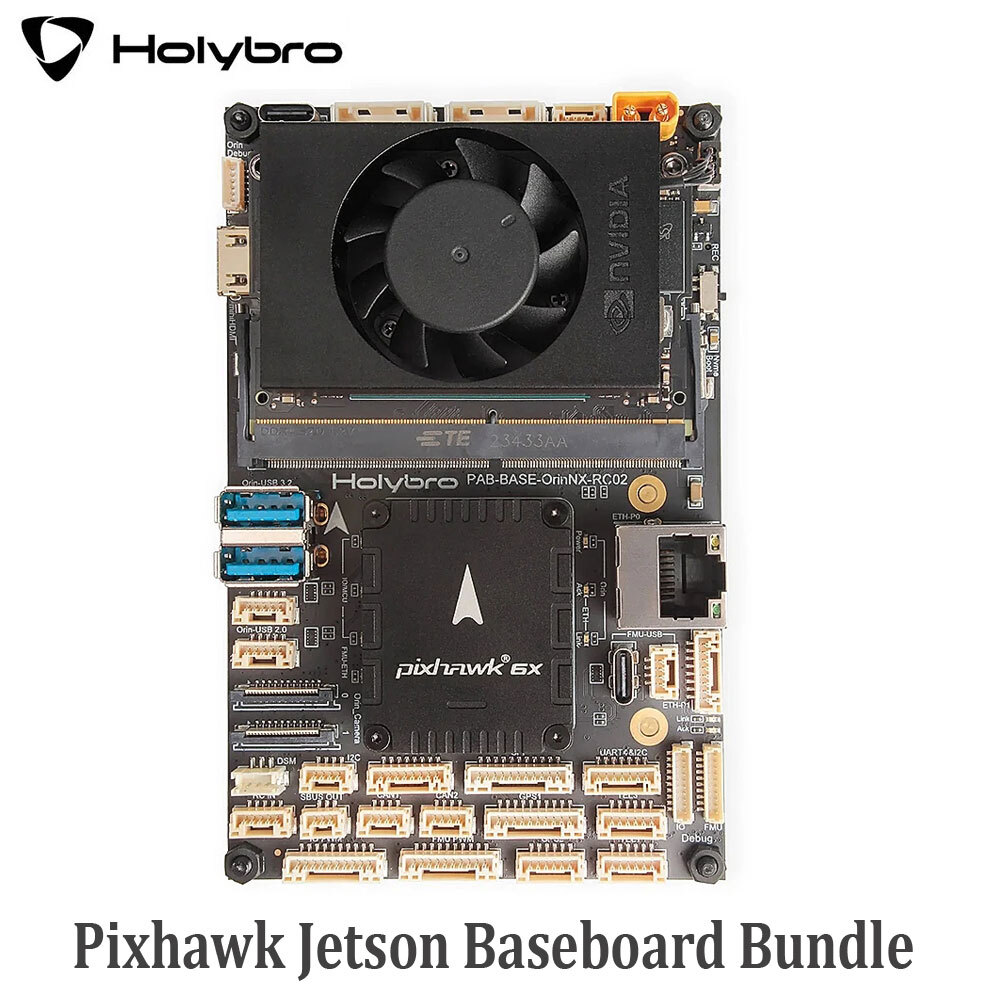

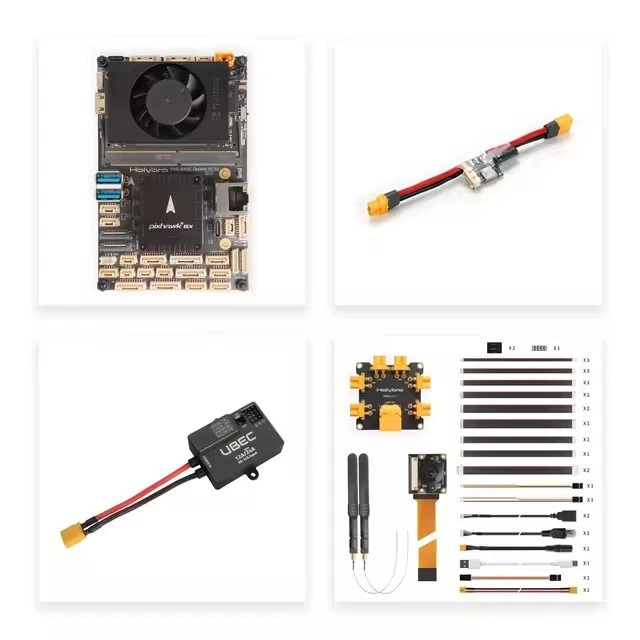

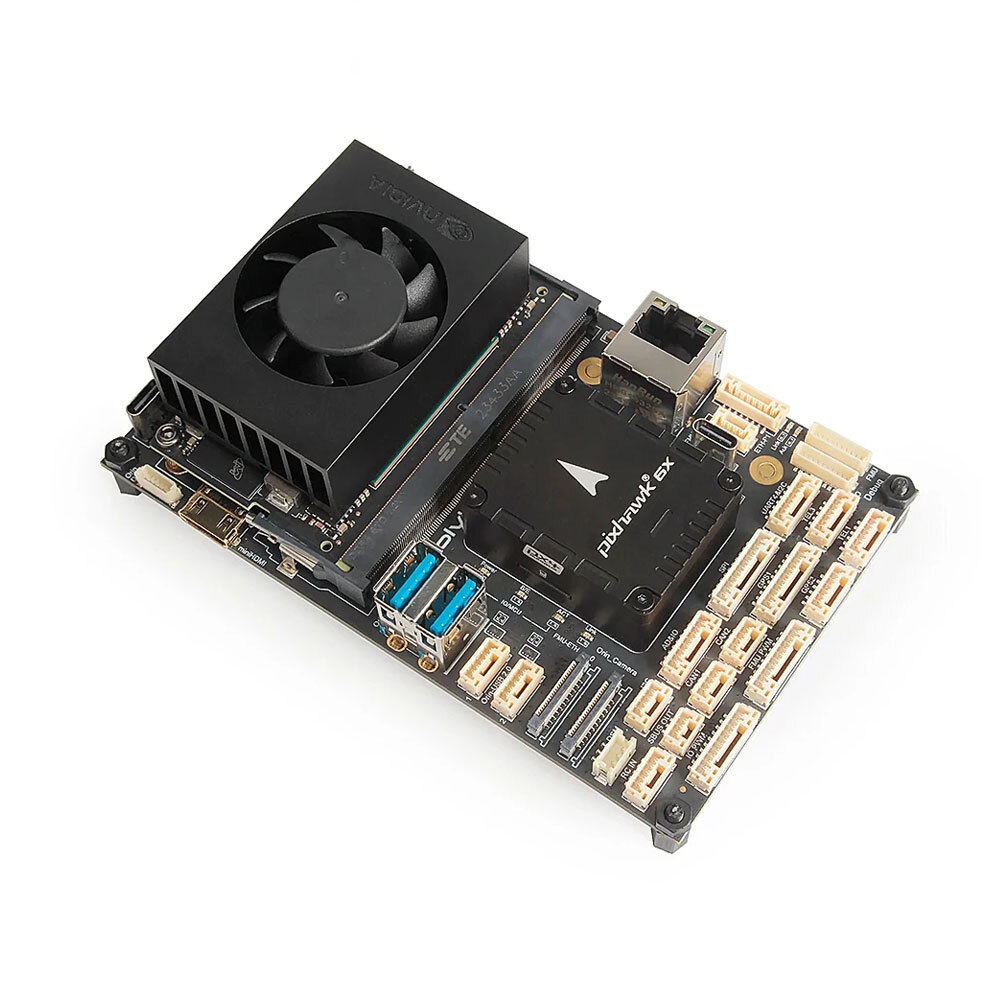

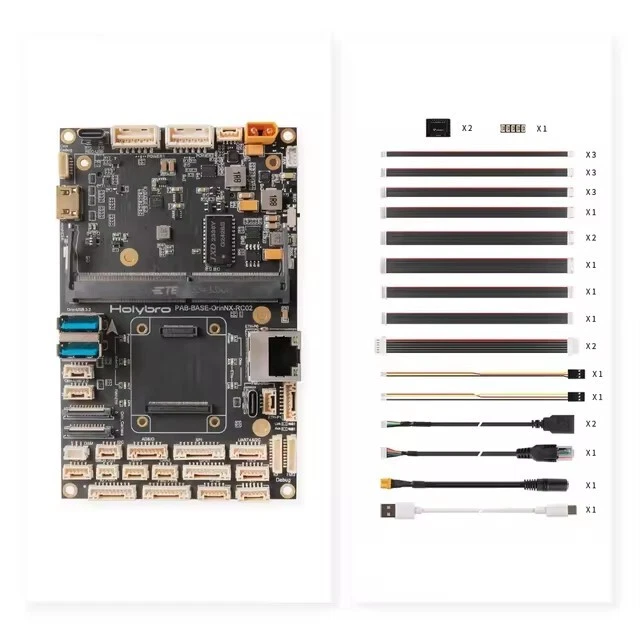

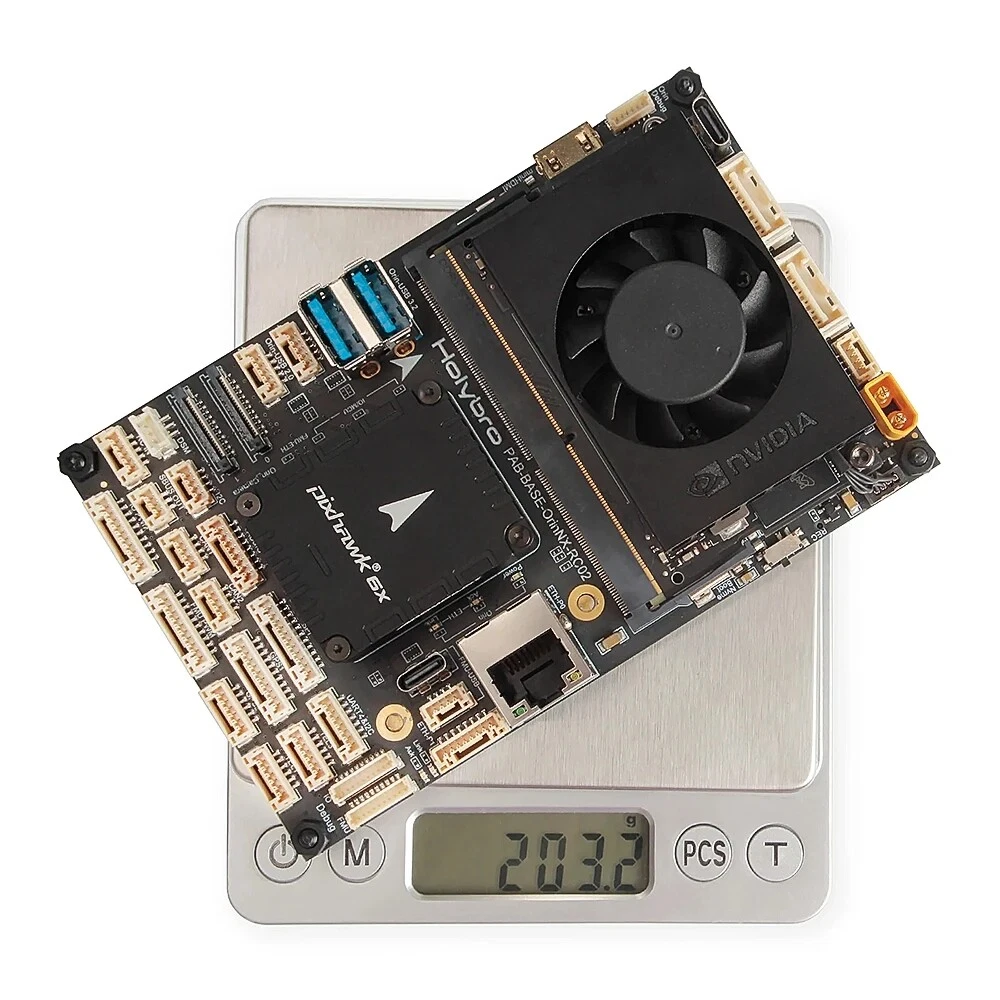

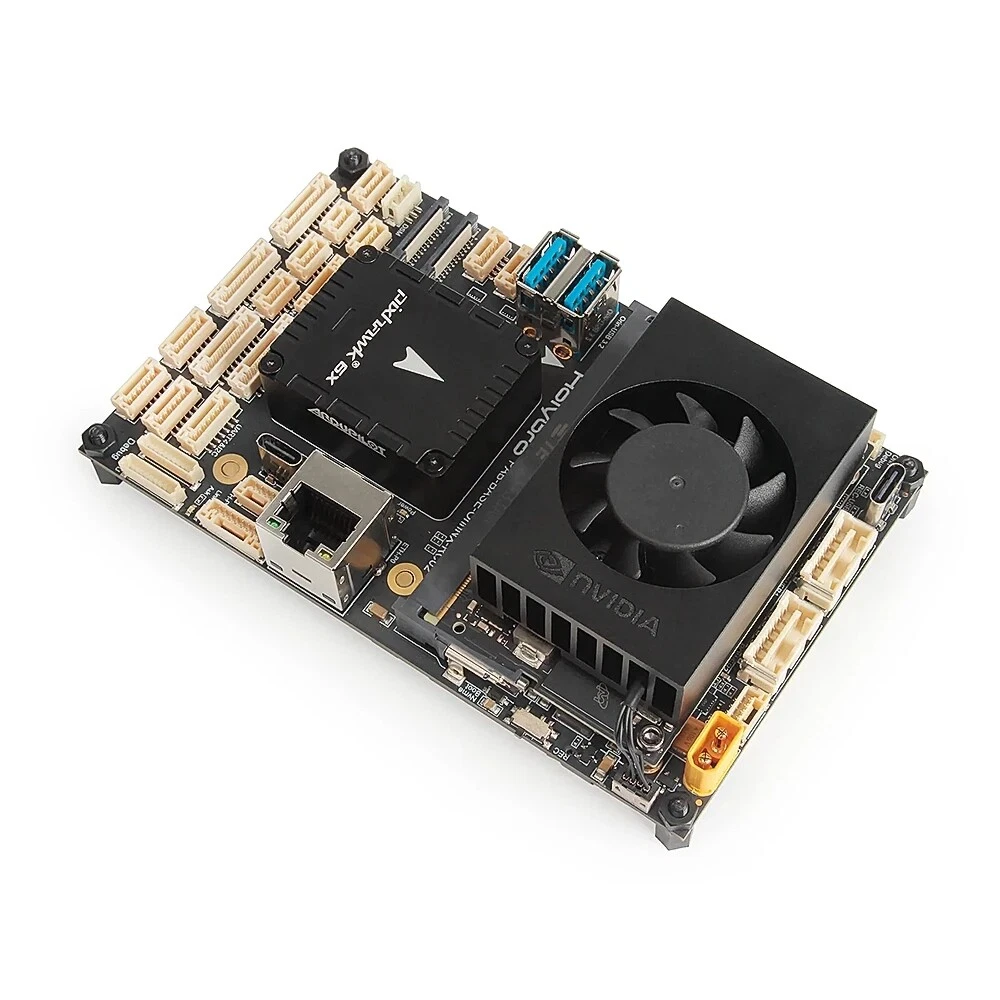

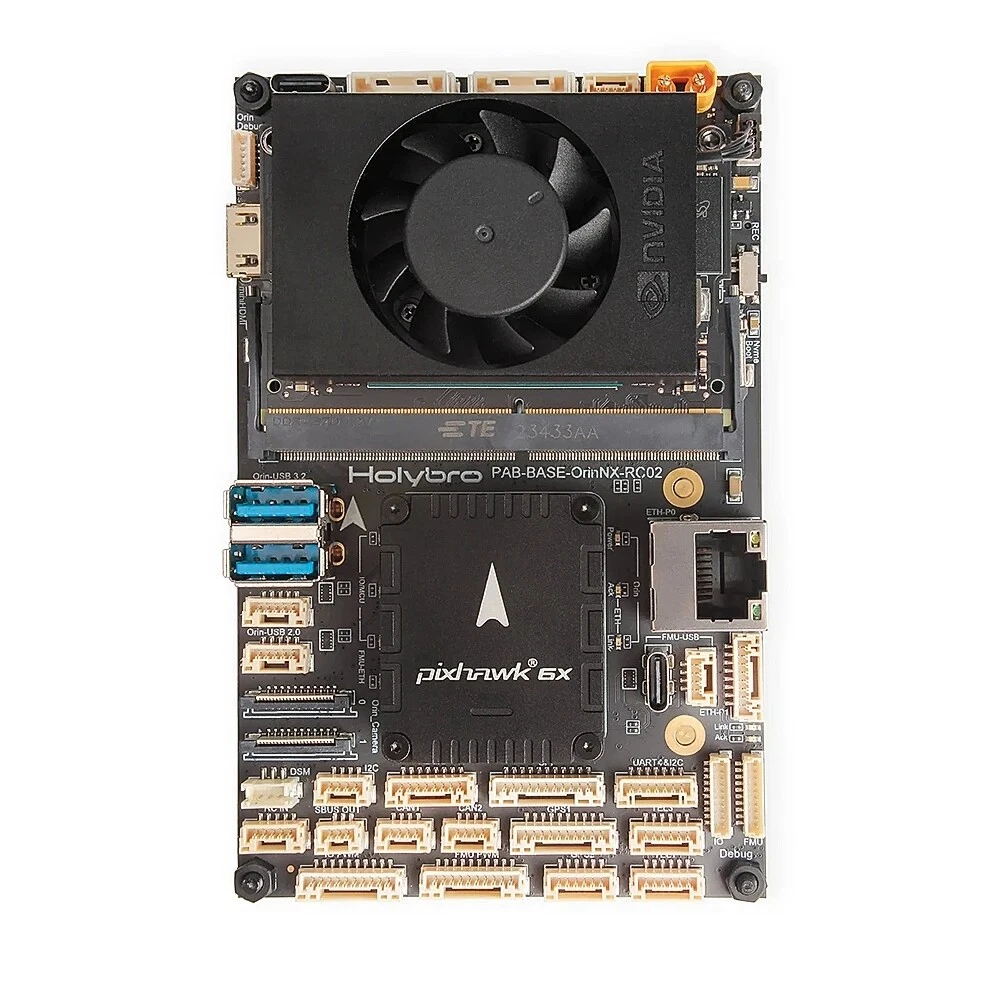

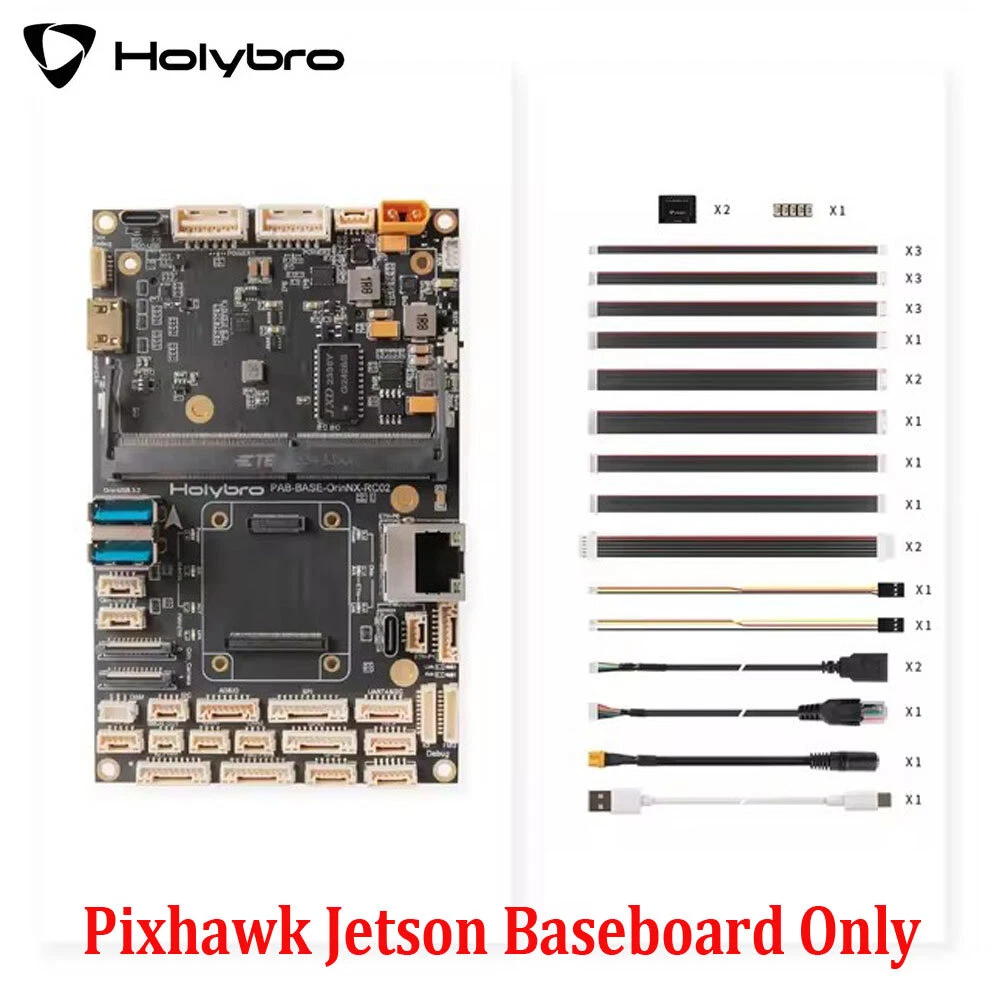

Holybro Pixhawk Jetson Baseboard/Baseboard&Pixhawk 6X(New) & PM02D&UBEC Set
$ 263.05
Description

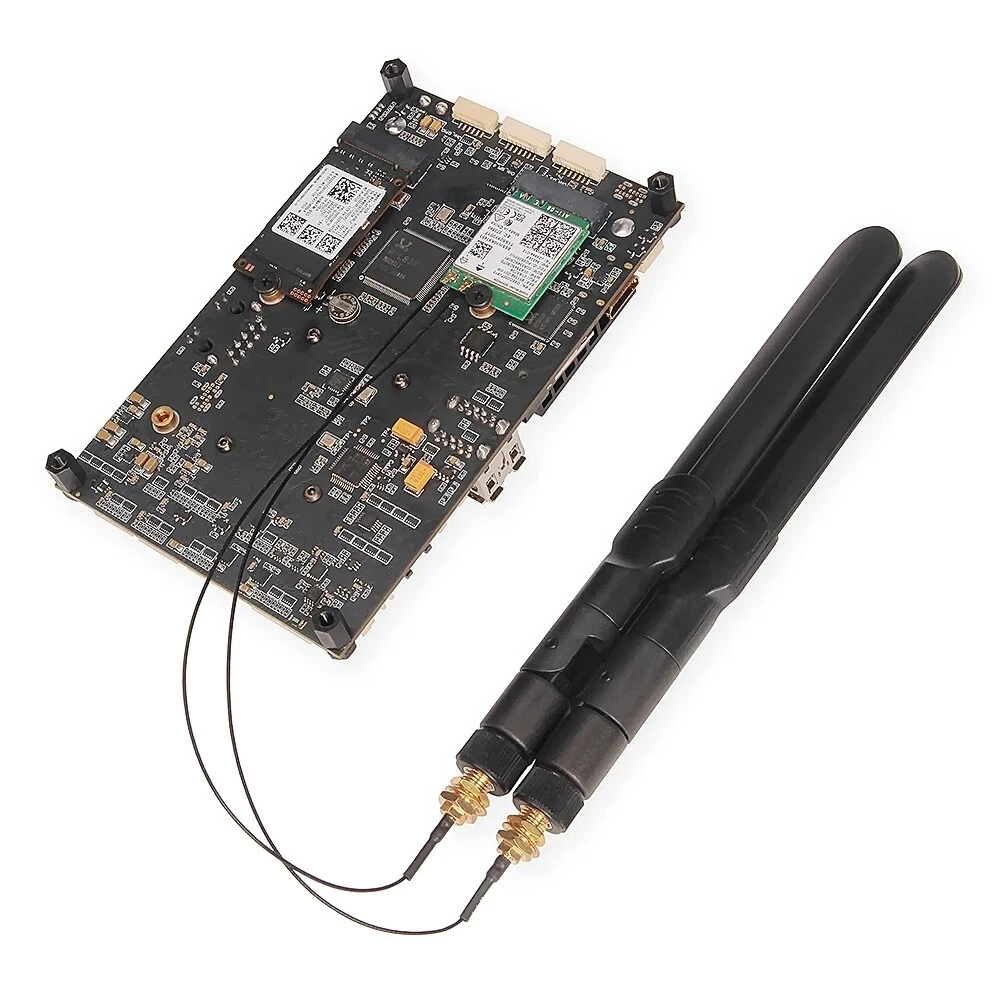

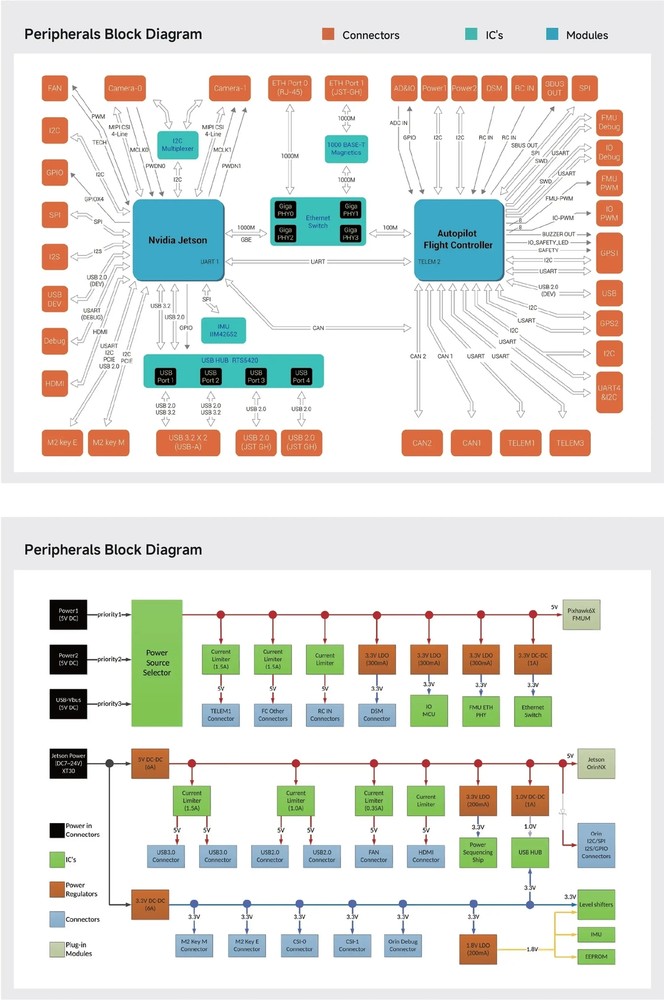

Pixhawk 6X (ICM-45686) Processors & Sensors FMU Processor: STM32H753 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM On-board sensors (Shipping Currently, Rev8) Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology) Barometer: ICP20100 & BMP388 Mag: BMM150 Baseboard Port & Connection Jetson Connectors 2x Gigabit Ethernet port Connected to both Jetson & Autopilot via Ethernet switch (RTL8367S) 8-pin JST-GH RJ45 2x MIPI CSI Camera Inputs 4 Lanes each 15-Pin Raspberry Pi Cam FFC 2x USB 3.0 Host Port USB A 5A Current Limit 2x USB 2.0 Host Port 5-Pin JST-GH 0A Current Limit USB 2.0 for Programming/debugging USB-C 2 Key M 2242 for NVMe SSD PCIEx4 2 Key E 2230 for WiFi/BT PCIEx2 USB UART I2S Mini HDMI Out 4x GPIO 6-pin JST-GH CAN Port Connected to Autopilot's CAN2 (4 Pin JST-GH) SPI Port 7-Pin JST-GH I2C Port 4-Pin JST-GH I2S Port 7-Pin JST-GH 2x UART Port 1 for debug 1 connected to Autopilot's telem2 Fan Power Port IIM42652 IMU Input Power XT30 Connector Voltage Rating: 7V-24V (3S-4S) Separate input power circuits than the Autopilot to ensure flight safety Holybro UBEC can be used for application above 4S Note: The Pixhawk Jetson Baseboard has an integrated UBEC to convert 7V-24V to 5.5V for the Jetson. Using an external UBEC alongside the integrated one provides redundancy and easier replacement in case of BEC failure. Power Requirements 8V/3A Minimum Depends on Usage and Peripherals Autopilot Connectors Pixhawk Autopilot Bus Interface 100 Pin Hirose DF40 50 Pin Hirose DF40 Redundant Digital Power Module Inputs I2C Power Monitor Support 2x – 6 Pin Molex CLIK-Mate Power Path Selector w/ Overvoltage Protection Voltage Ratings: Max input voltage: 6V USB Power Input: 4.75~5.25V Full GPS Plus Safety Switch Port 10-Pin JST-GH Secondary (GPS2) Port 6-pin JST-GH 2x CAN Ports 4 Pin JST-GH 3x Telemetry Ports with Flow Control 2x 6-Pin JST-GH 1 is connected to Jetson's UART1 Port 16 PWM Outputs 2x 10-Pin JST-GH UART4 & I2C Port 6-Pin JST-GH 2x Gigabit Ethernet port Connected to both Jetson & Autopilot via Ethernet switch (RTL8367S) 8-pin JST-GH RJ45 AD & IO 8-Pin JST-GH USB 2.0 USB-C 4-pin JST-GH DSM Input 3-pin JST-ZH 1.5mm Pitch RC in PPM/SBUS 5-pin JST-GH SPI Port External Sensor Bus (SPI5 11-Pin JST-GH 2x Debug Port 1 for FMU 1 for IO 10-Pin JST-SH Dimensions (Without Jetson and Flight Controller Module) 126x80x38mm Weight With Jetson, Heatsink, Flight Controller, M.2 SSD, M.2 Wi-Fi Module 203.2g UBEC-12A Specifications Input voltage: 3~14S (XT30) Output voltage: 6.0V/7.2V/8.0V/9.2V (recommend 7.2V if supplying power to Jetson Board) Output Current Continuous: 12A Burst: 24A Size: 48x33.6x16.3 mm Weight: 47.8g Package Includes Pixhawk 6X Version: Pixhawk 6X (ICM-45686) Flight Controller Module Pixhawk Jetson Orin Baseboard Nvidia Orin NX (16GB RAM) Includes the following: SSD: Samsung PM9B1 PCIe 4.0 NVMe 512GB Wi-Fi & Bluetooth Module: Intel 8265NGW AC Dual Band Camera: IMX219-200 PM02D Power Module UBEC 12A (3-14S) PDB Board Cable Set Baseboard Only: Pixhawk Jetson Orin Baseboard Cable Set
I have not opened the package yet or used this camera but the seller was fine. Typical of most purchases from Chinese sellers. The item was packed well, no tariff issues, and appears to be in cold shape.
Awesome seller. I gas a issue with my drone AIO and he sent me a brand new one in a very little time and without any wasting of time. Thank you.
Shipping was slow. Took over 2 weeks. But item as described. Would be better with upgrade shipping options
