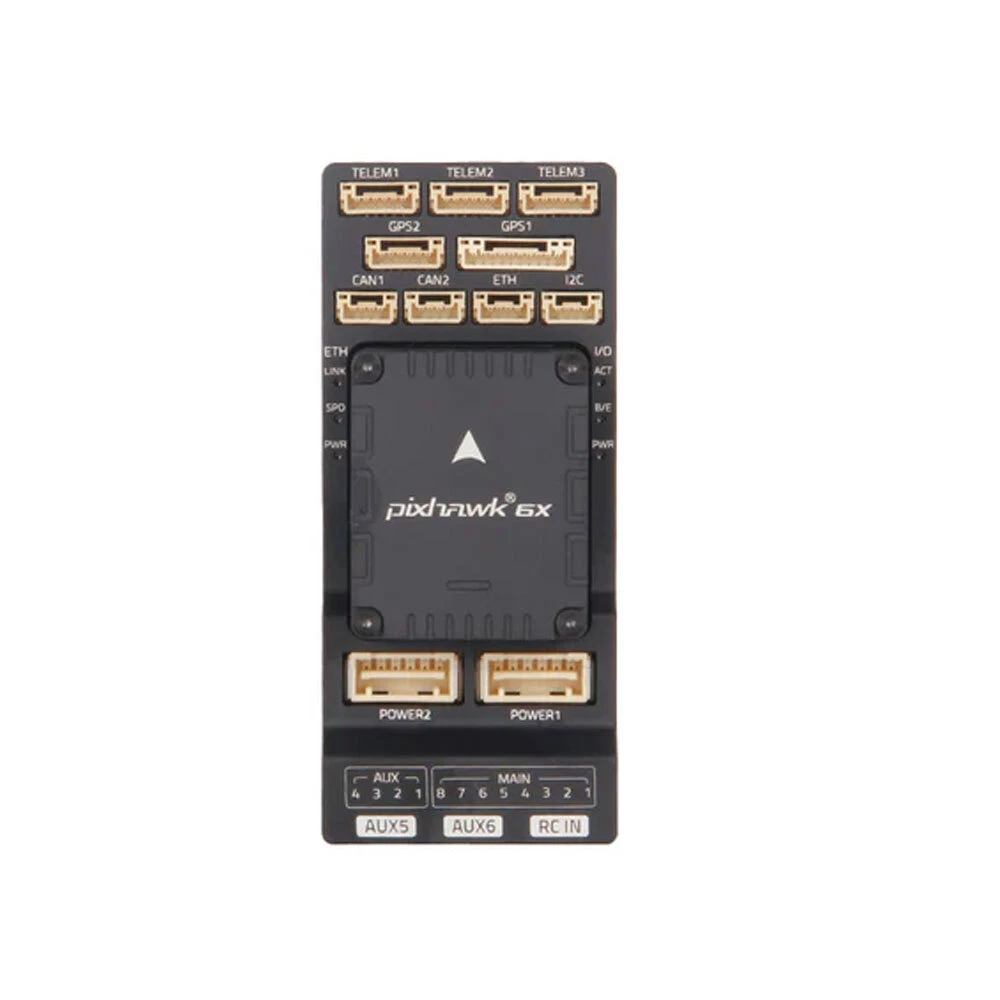

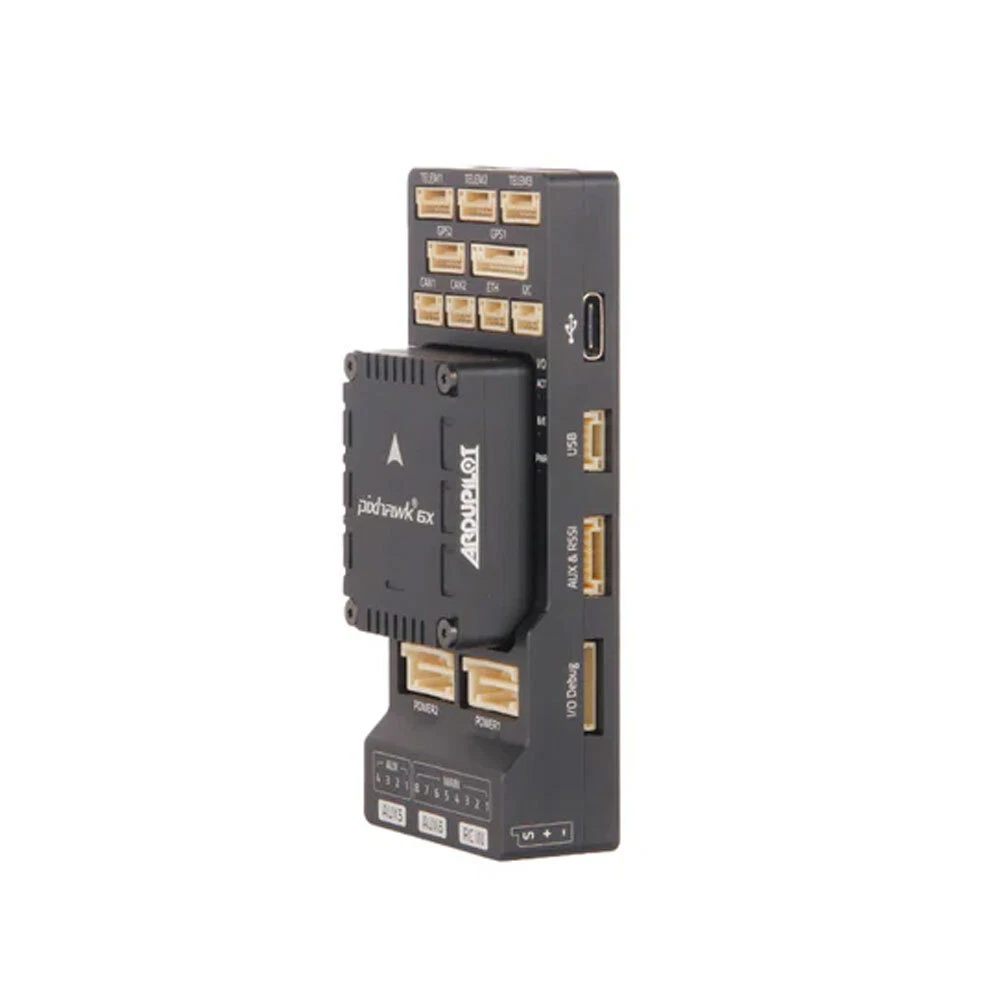

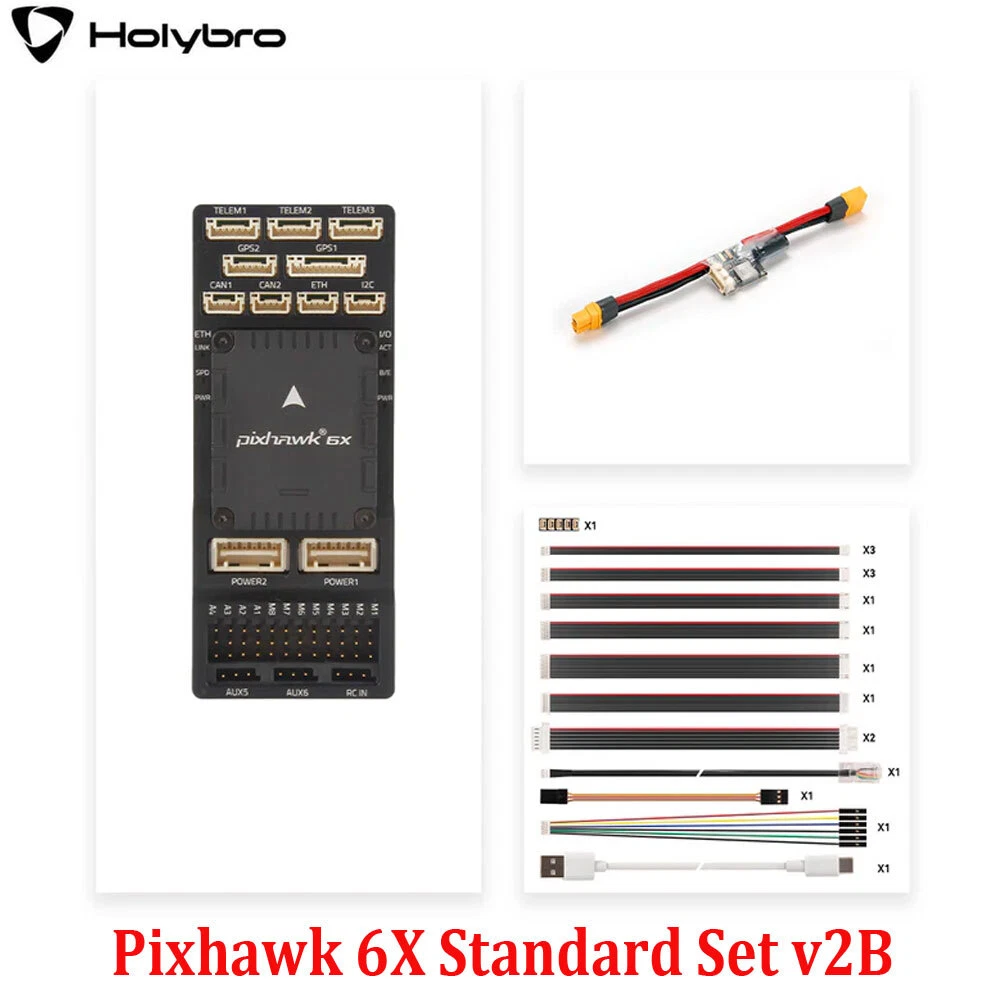

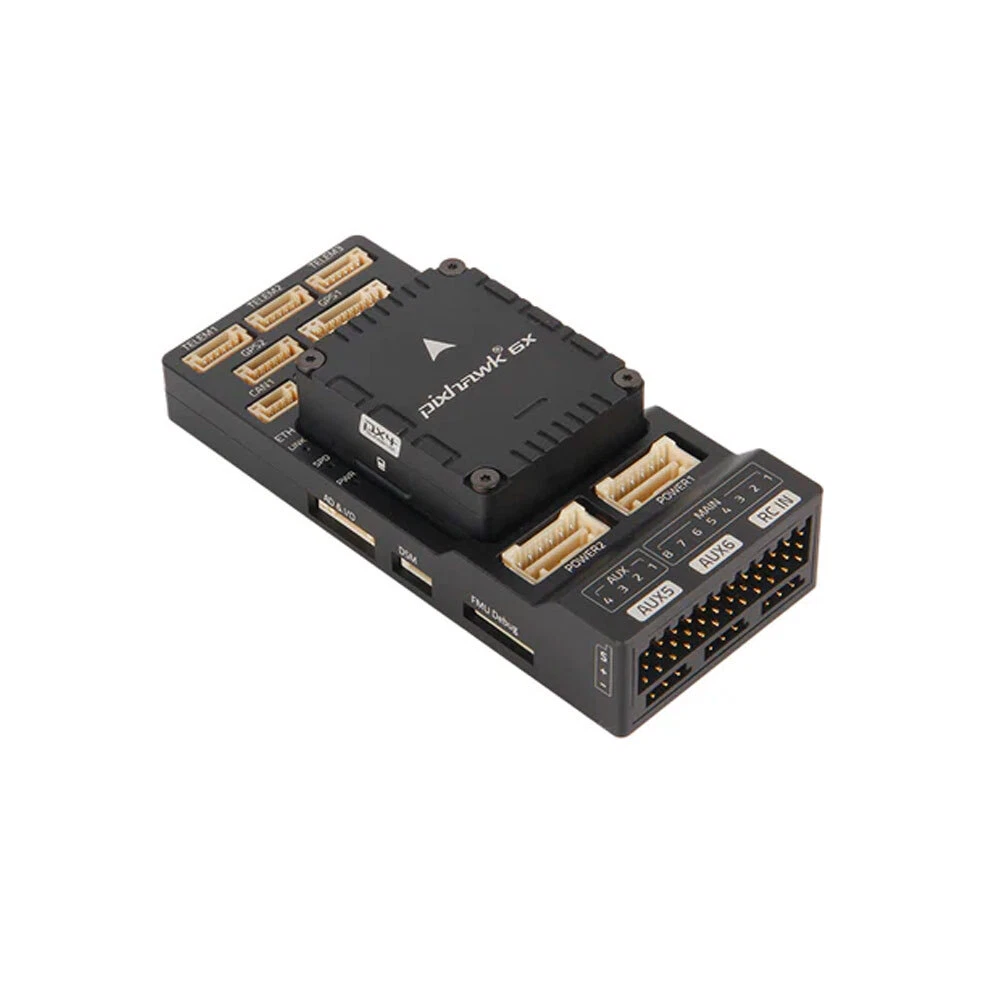

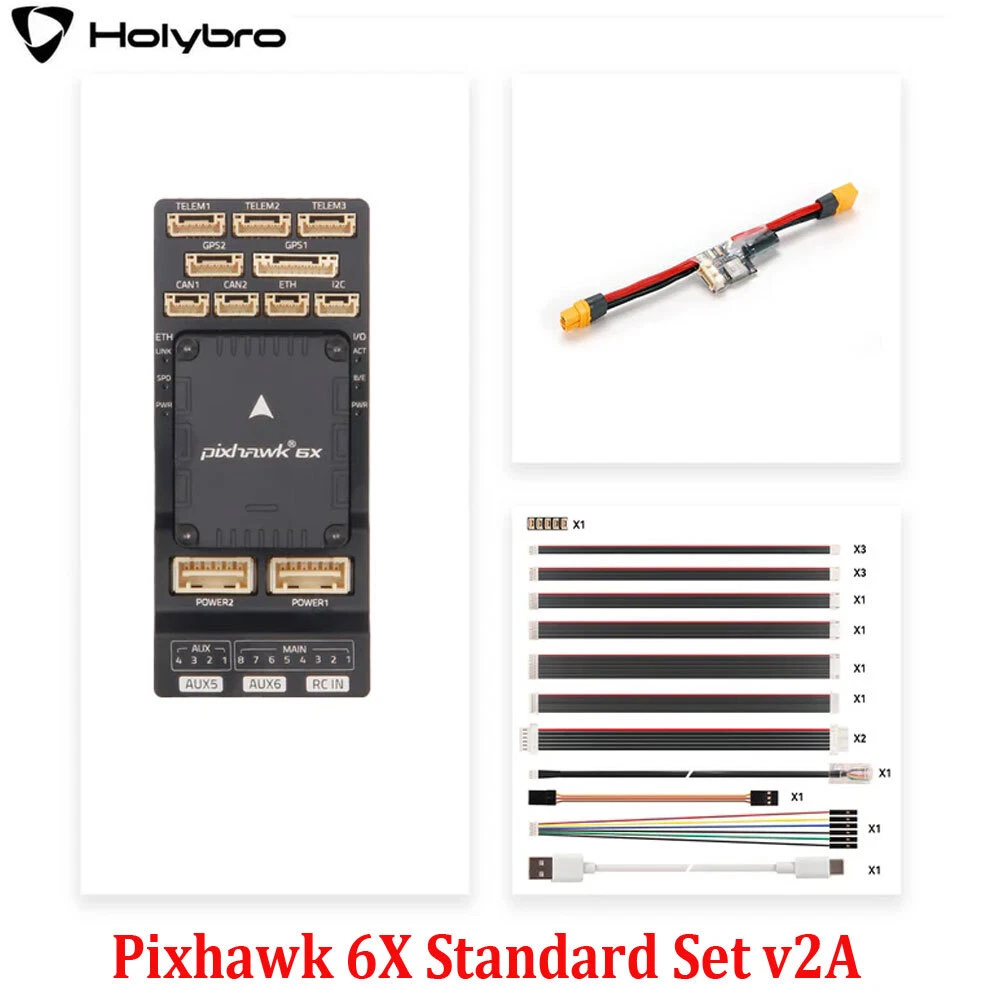

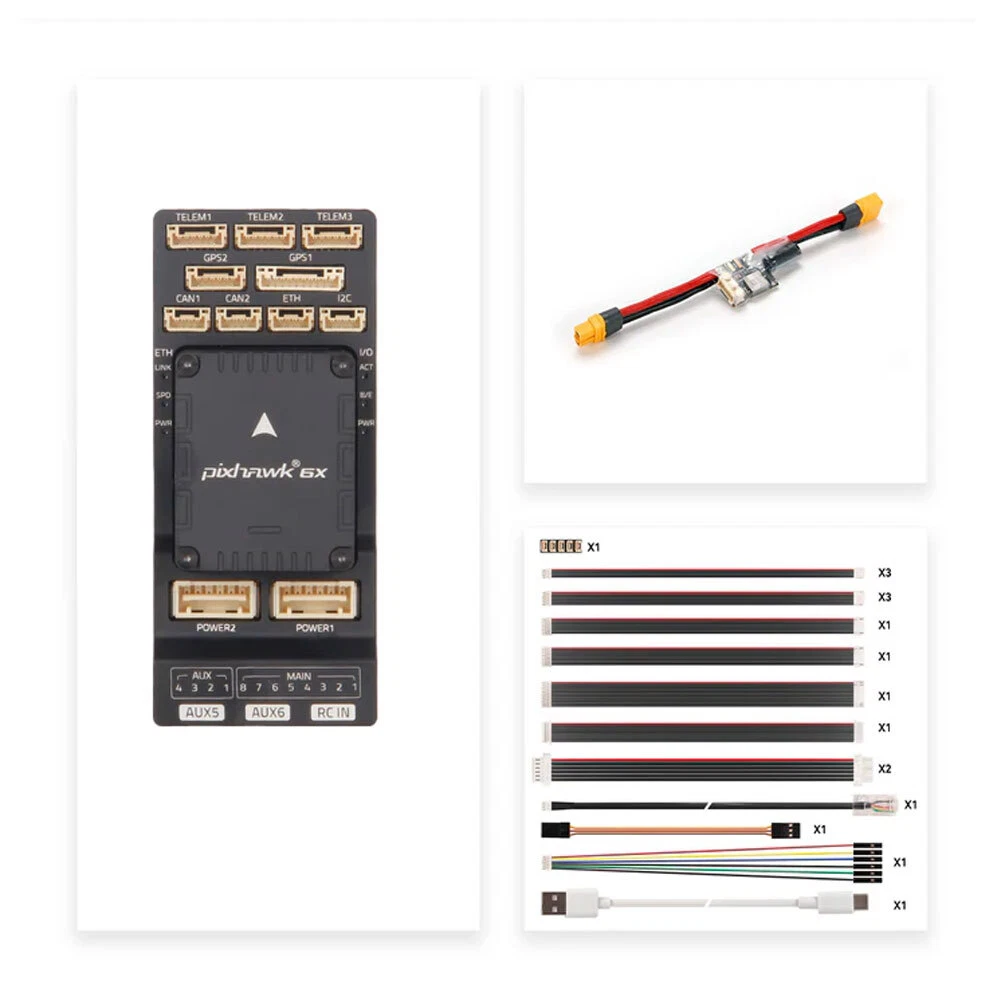

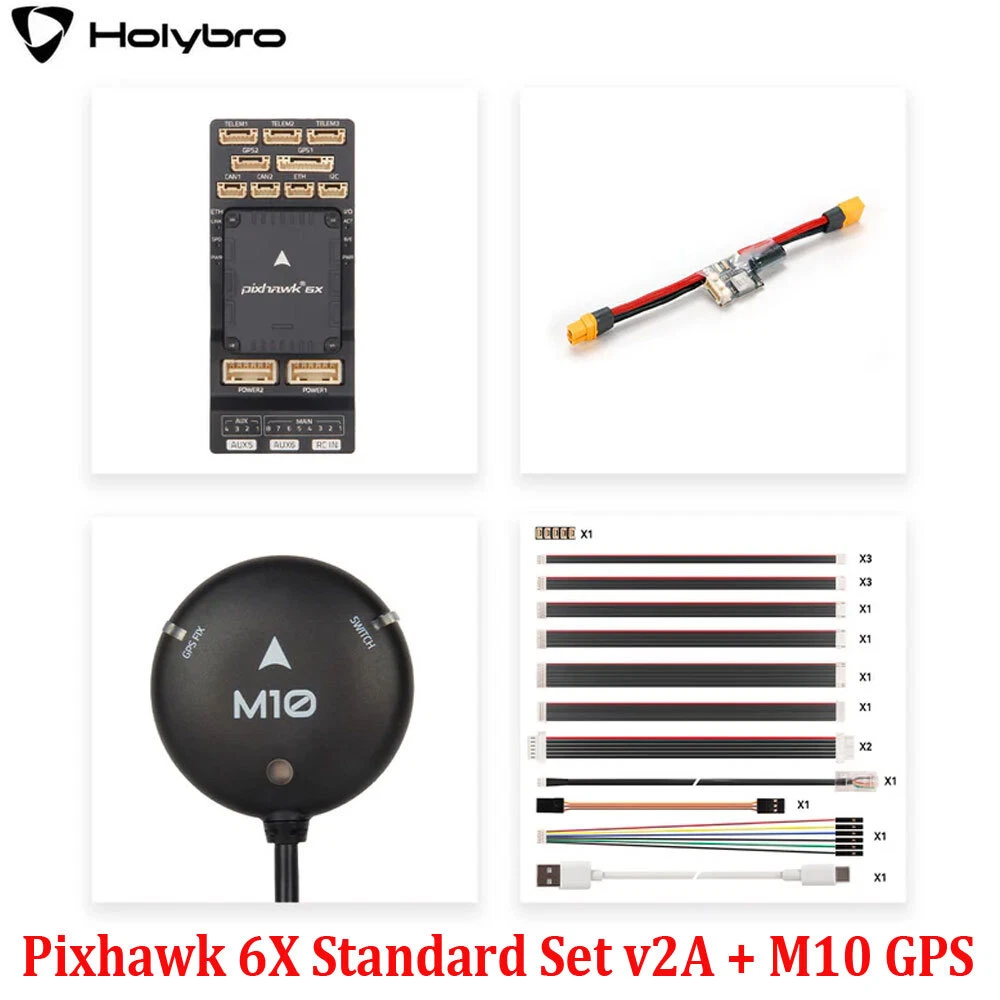

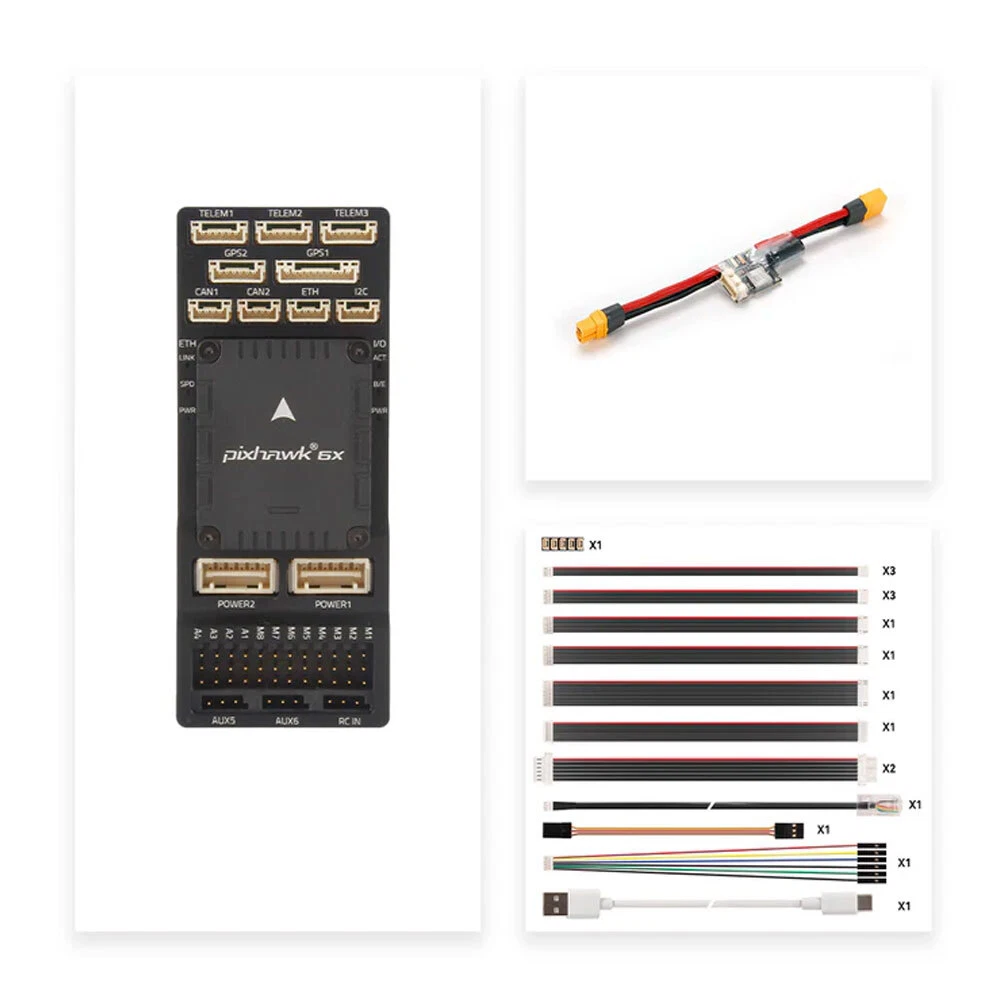

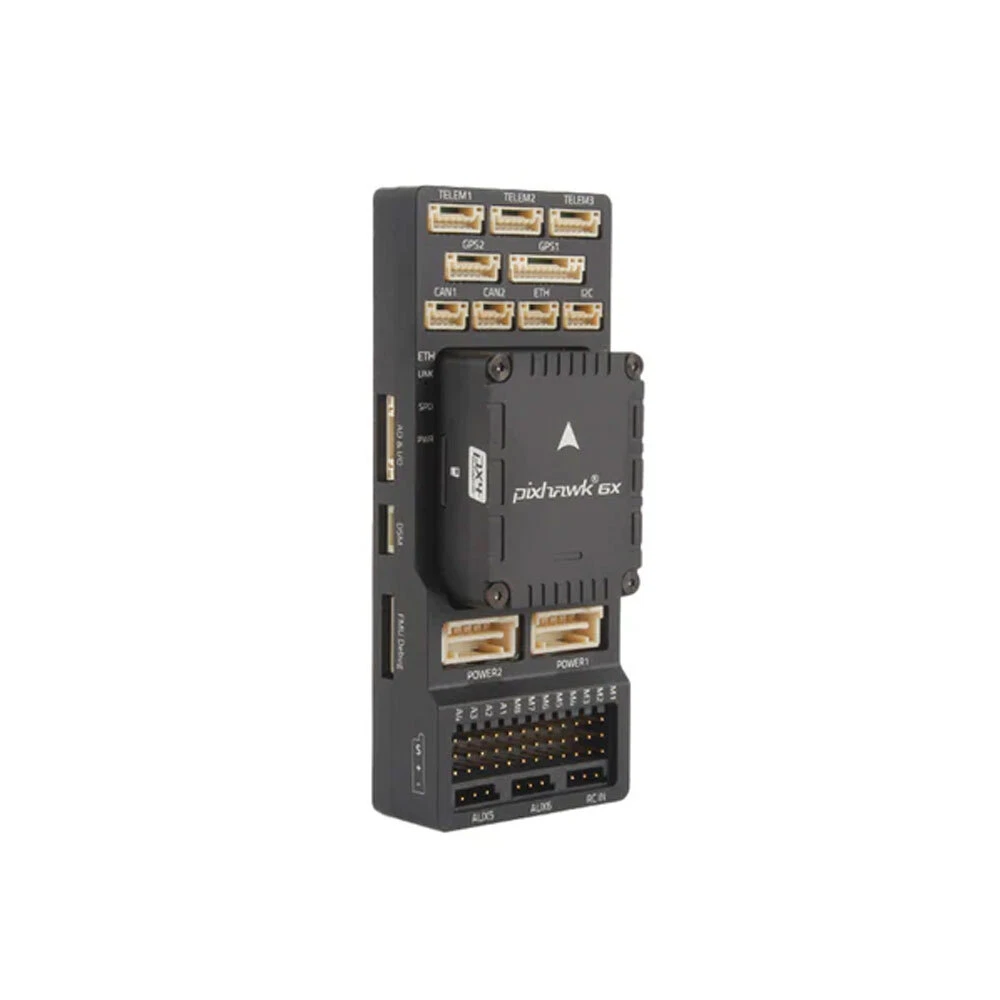

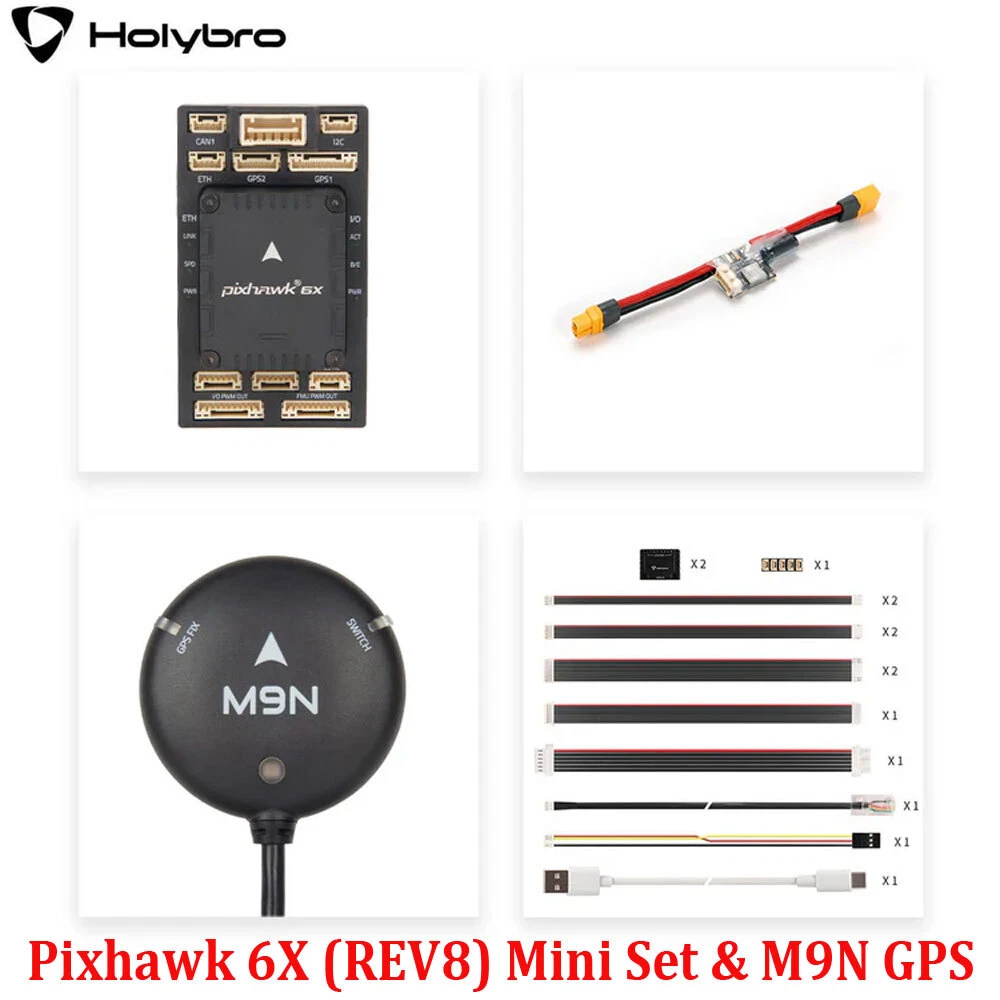

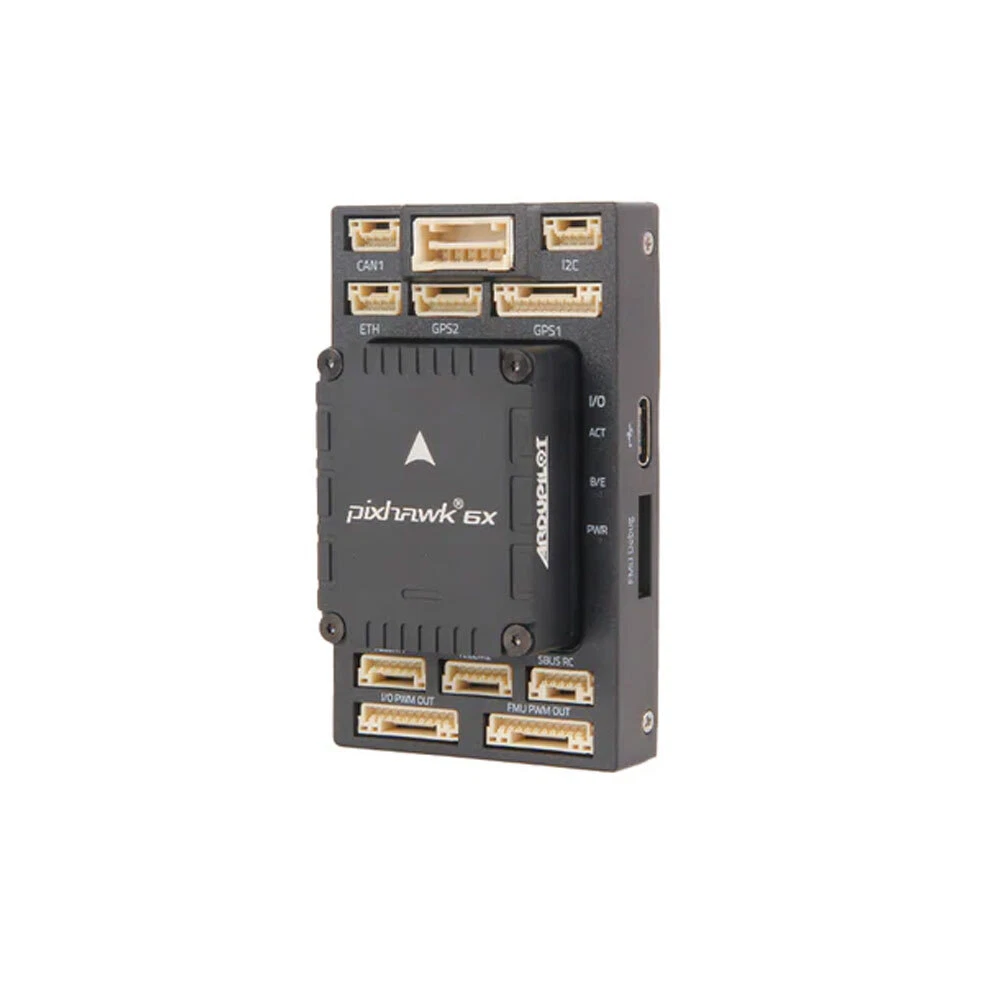

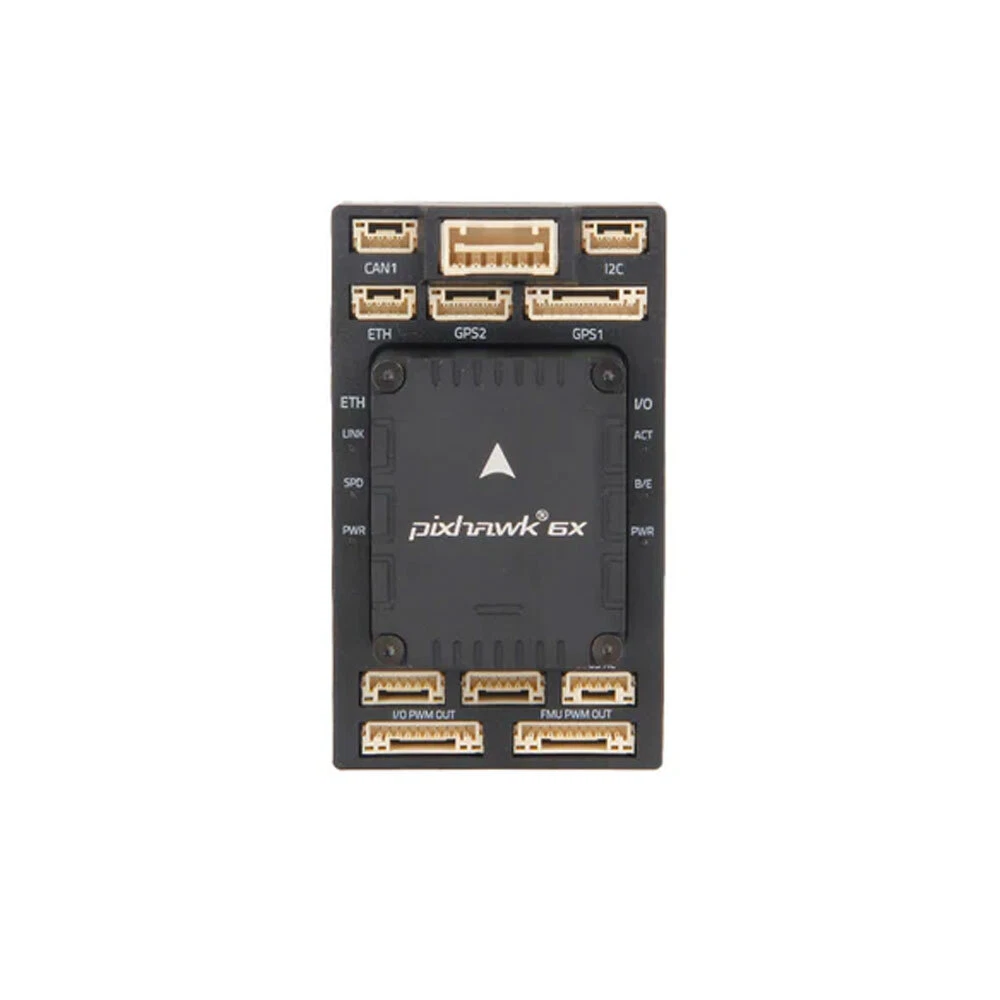

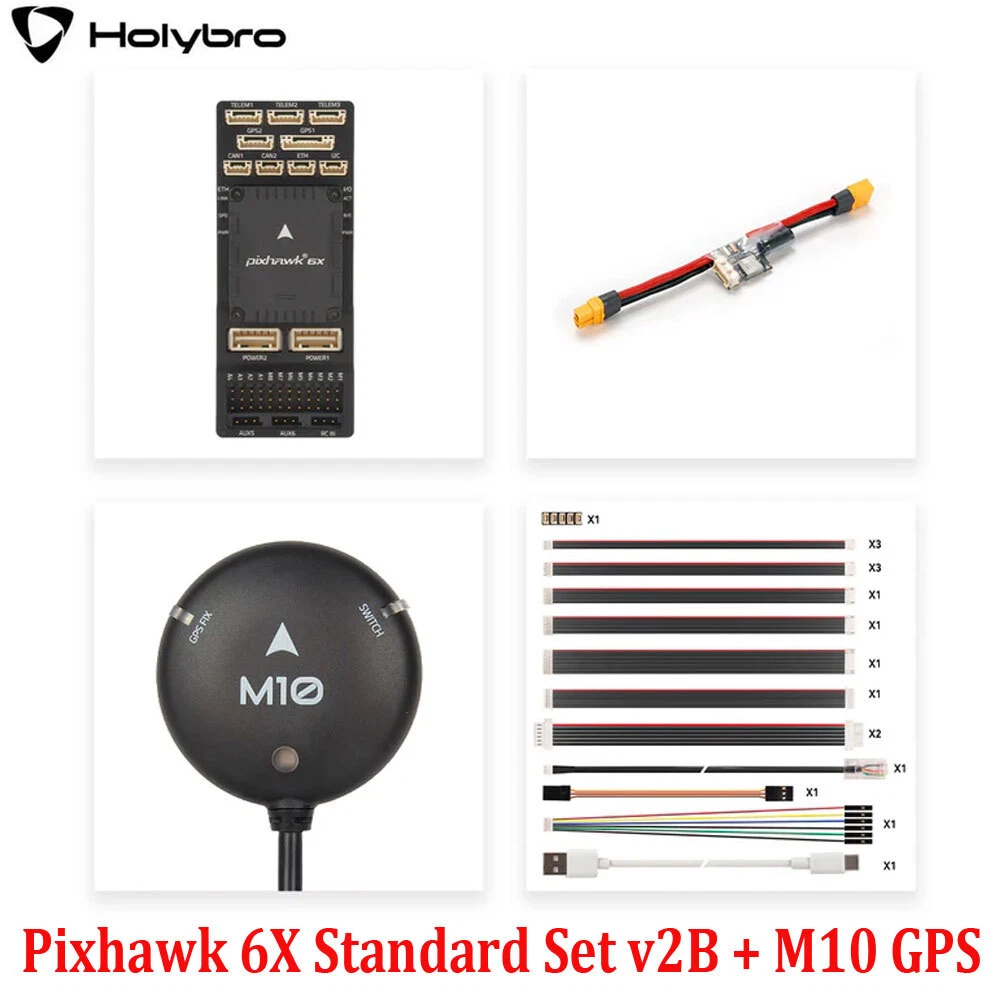

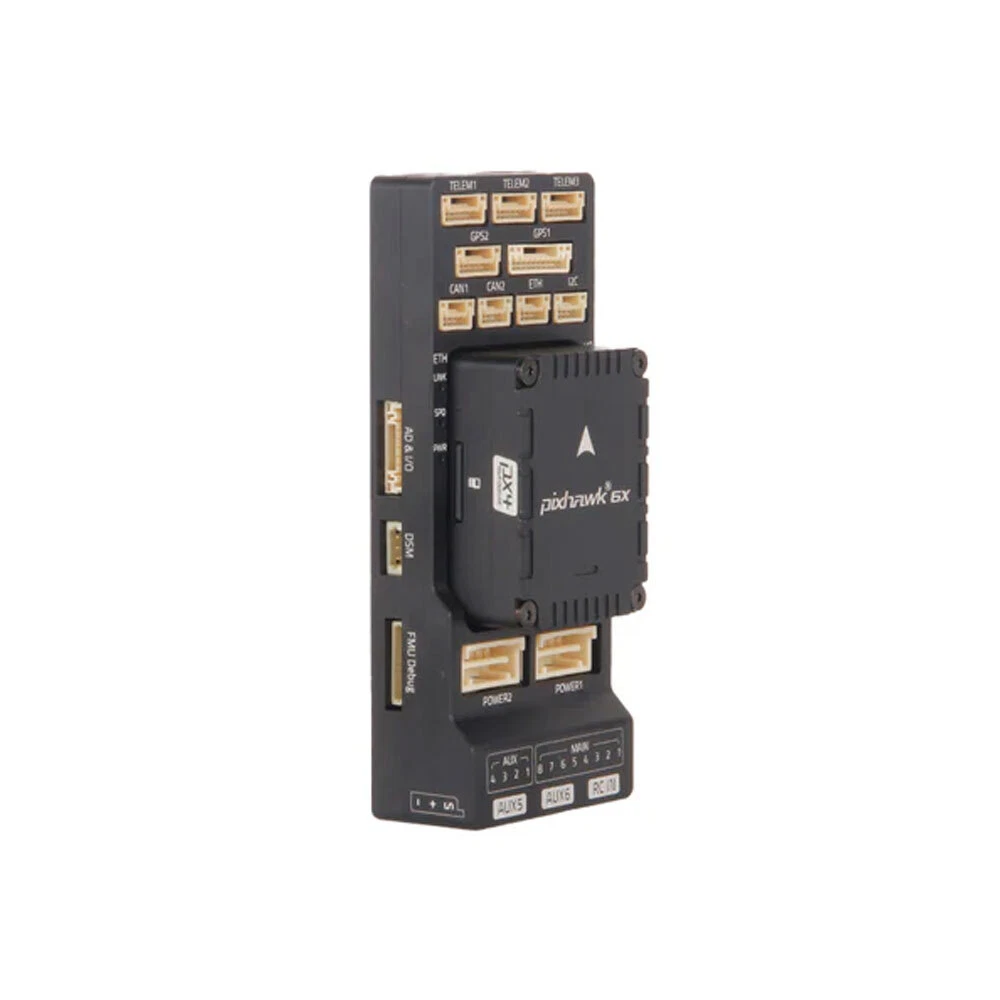

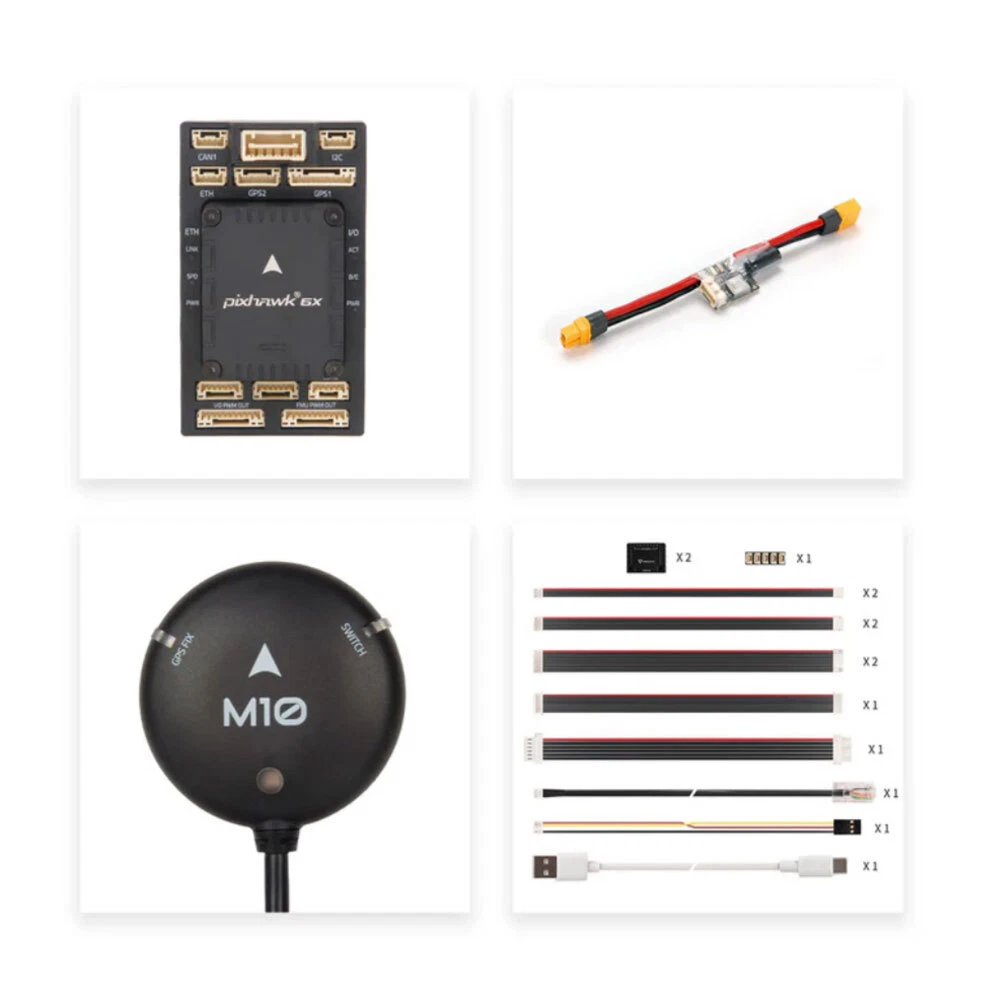

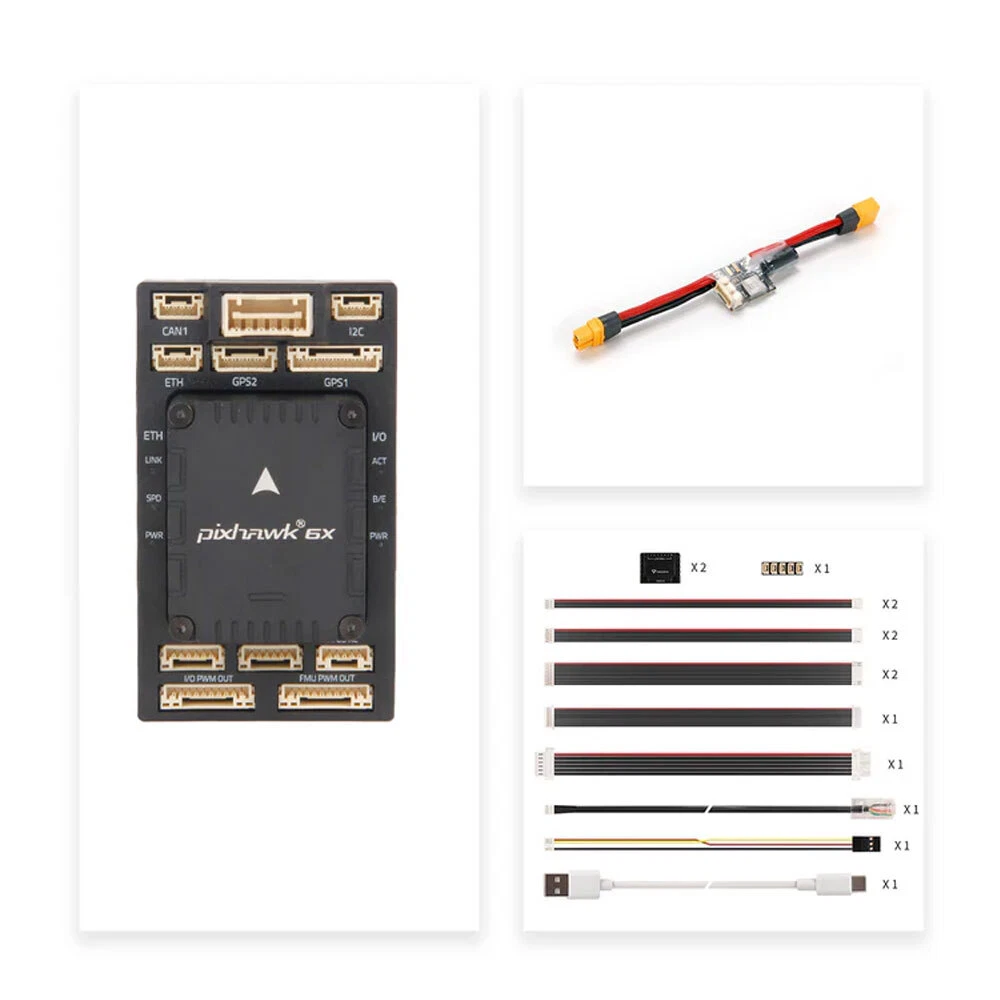

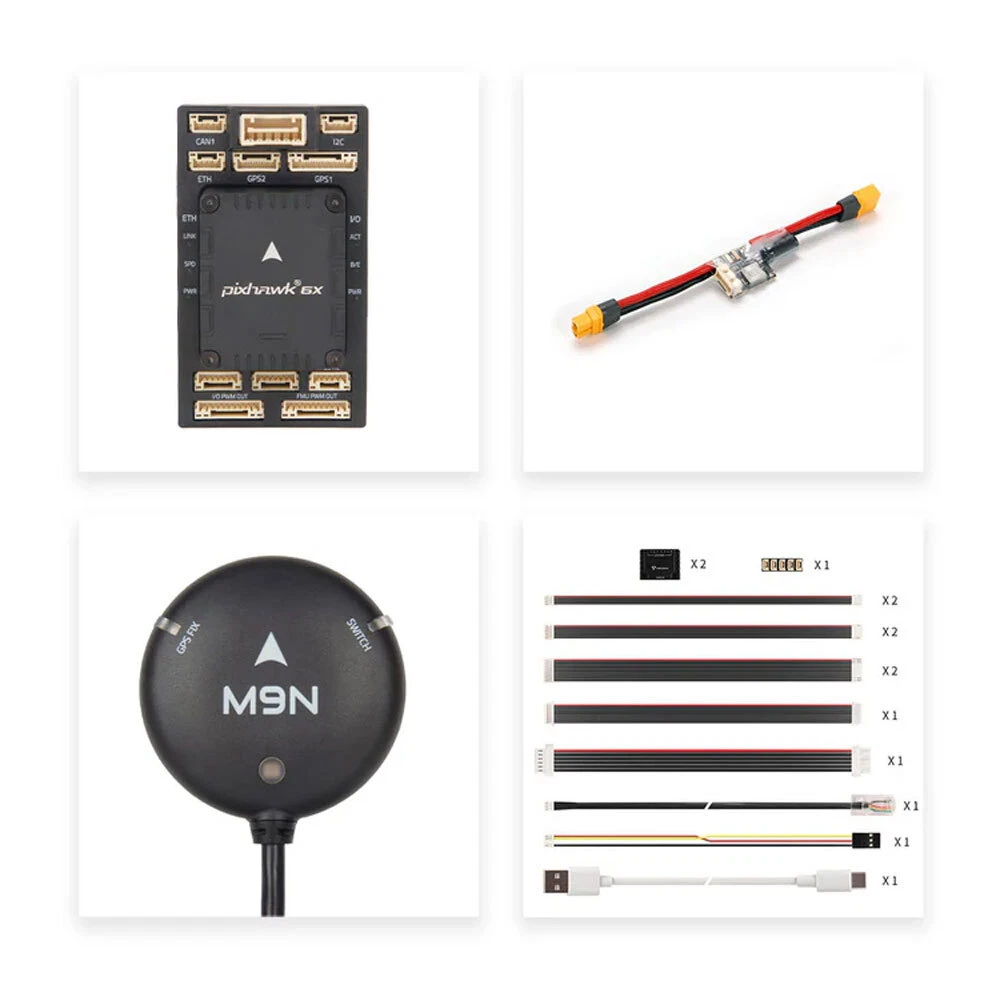

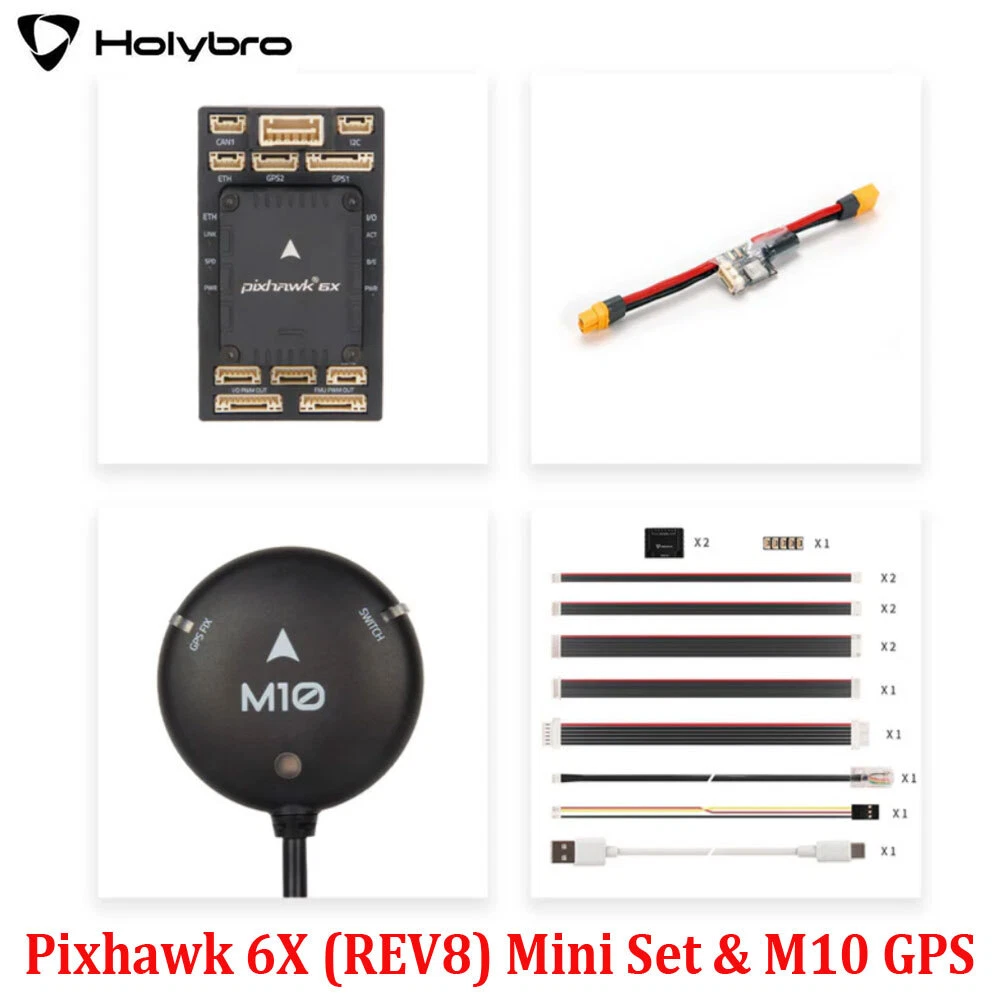

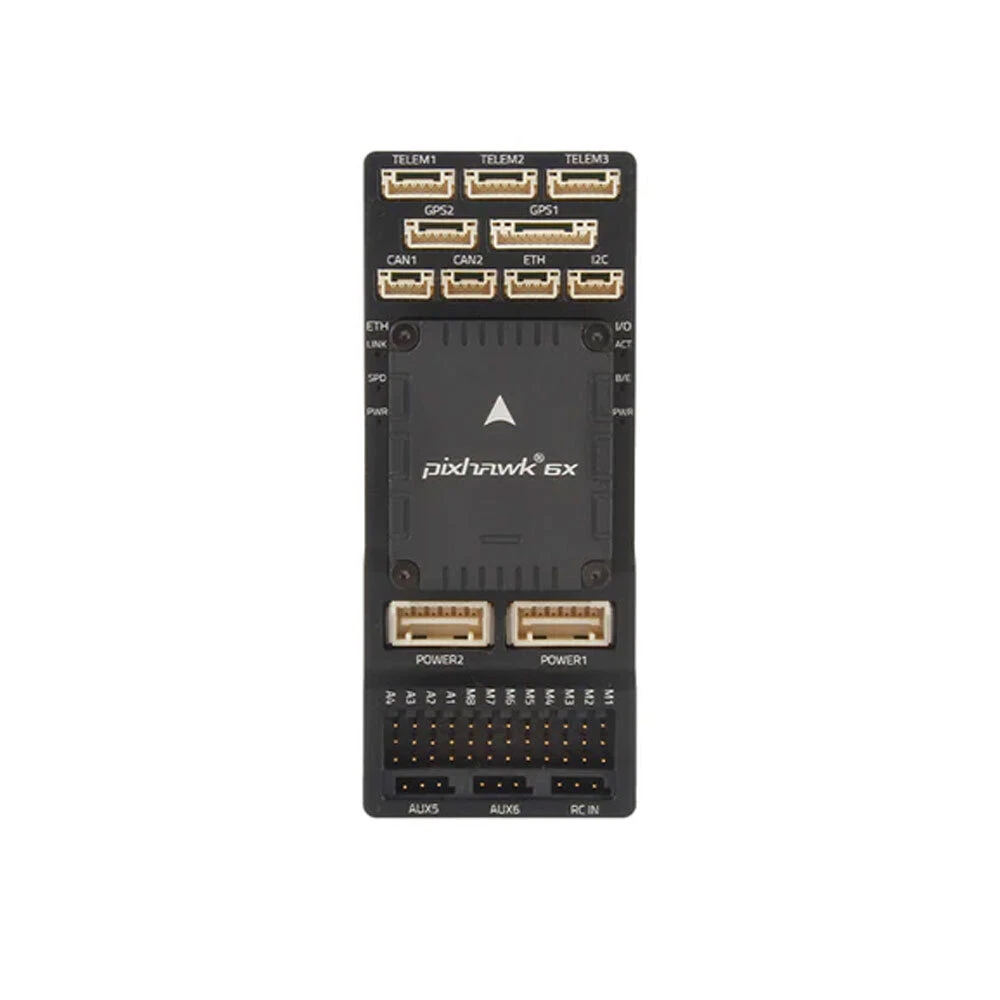

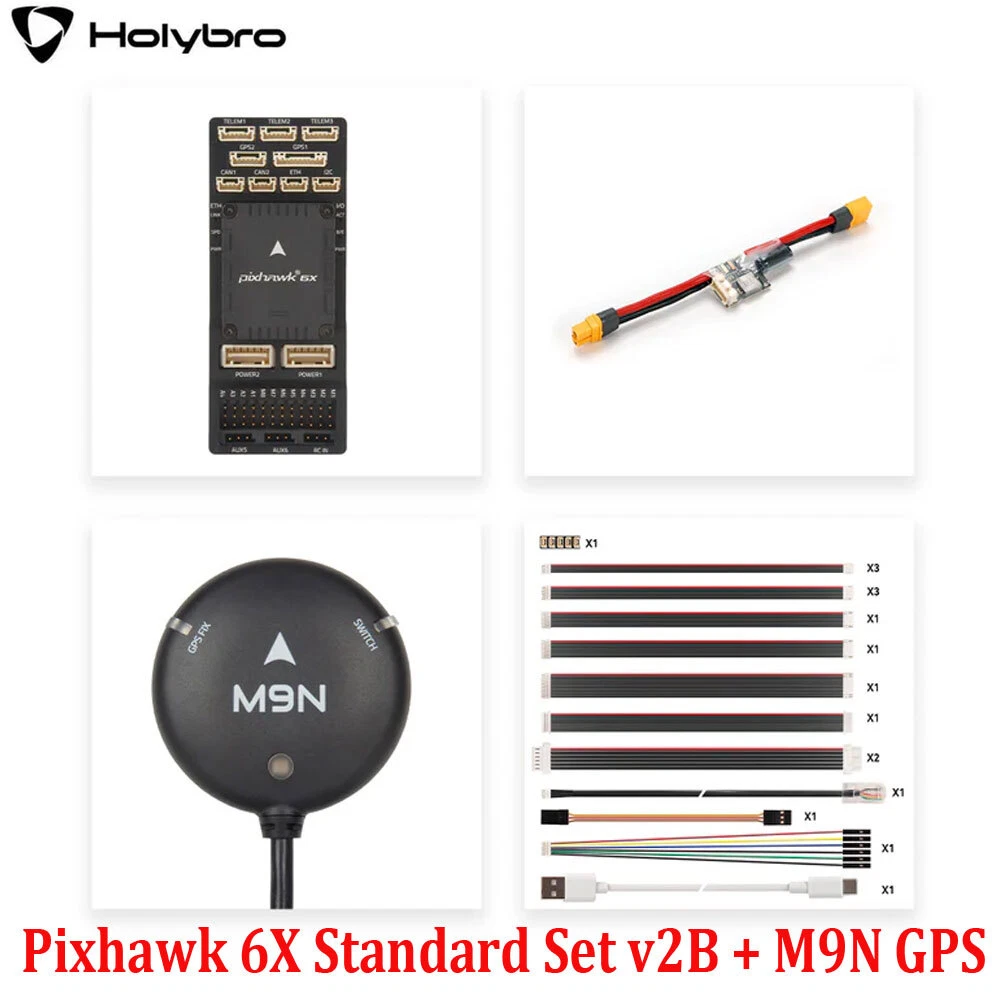

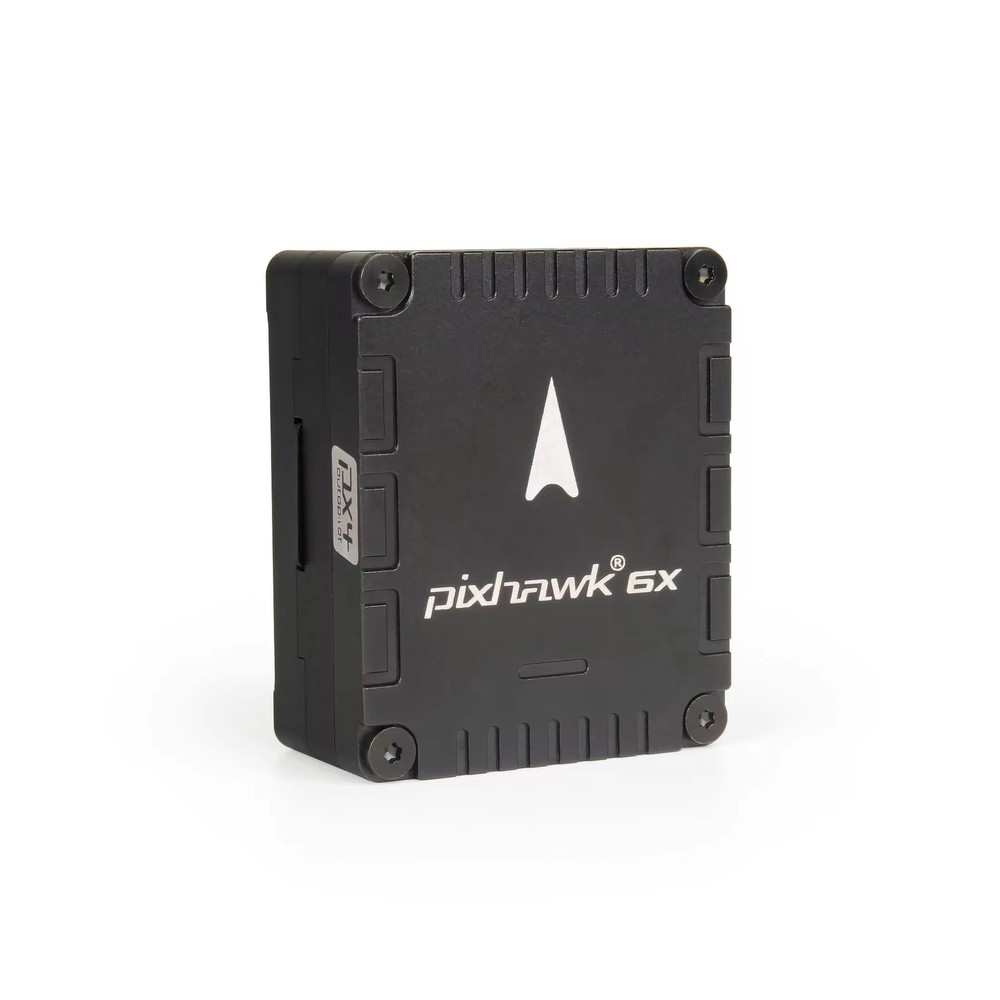

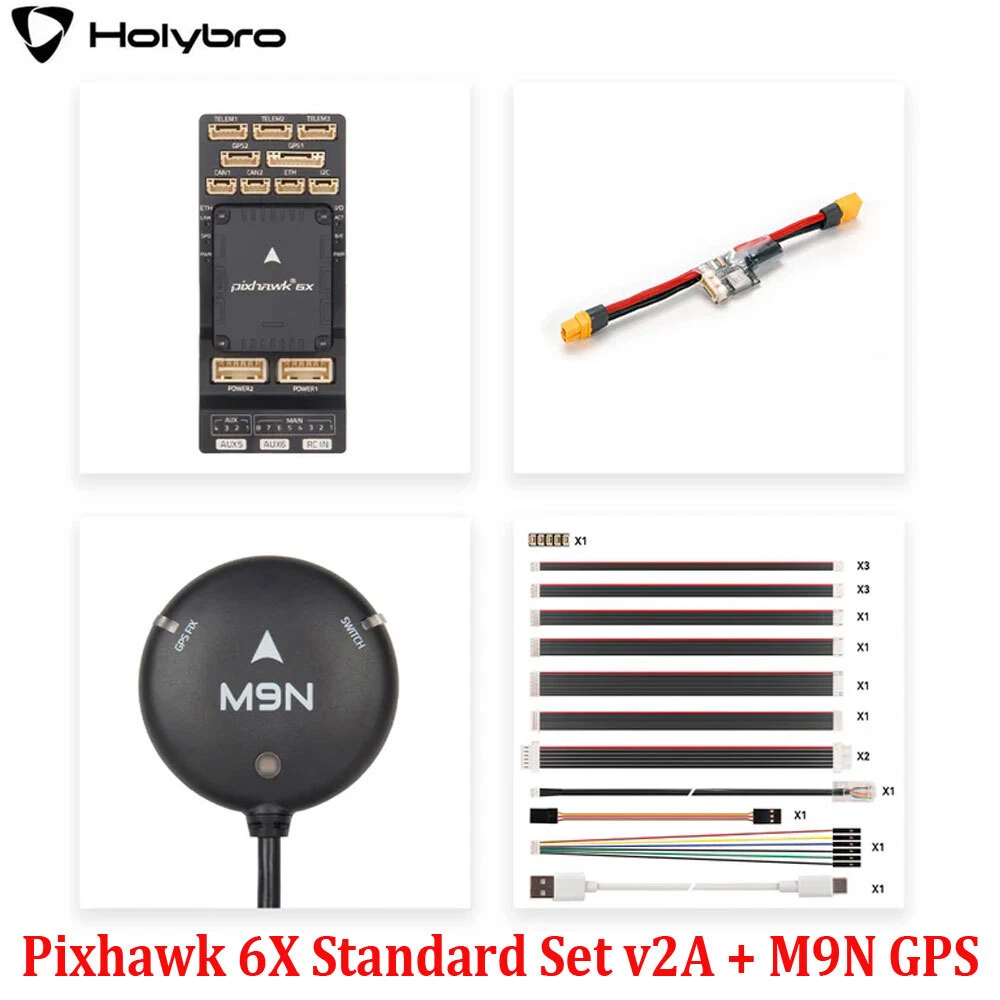

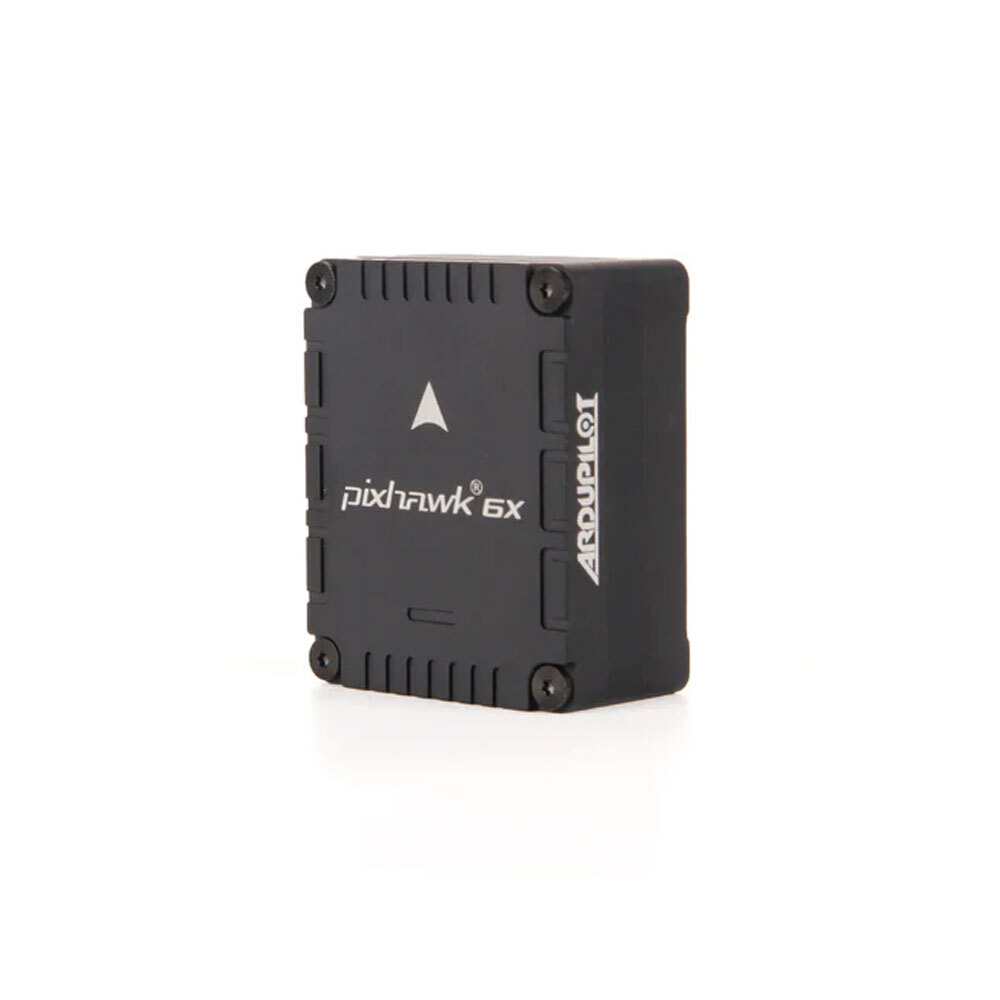

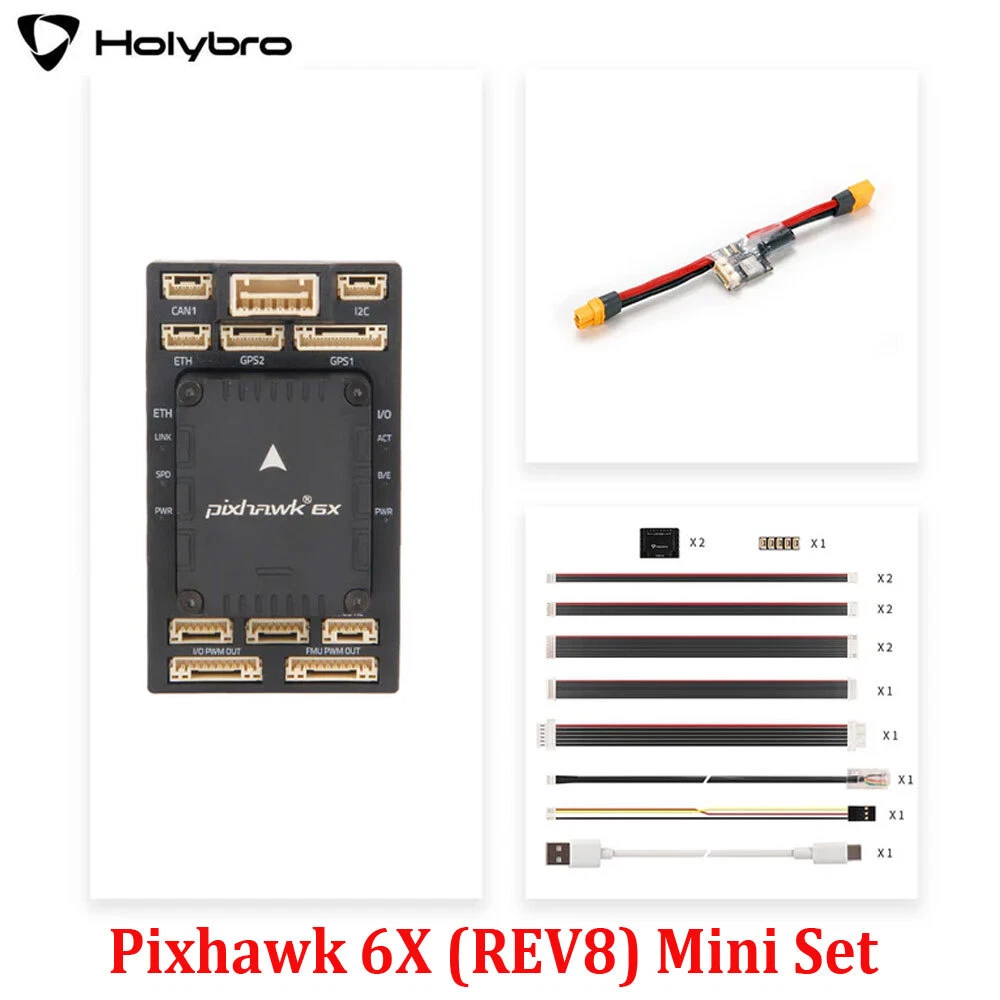

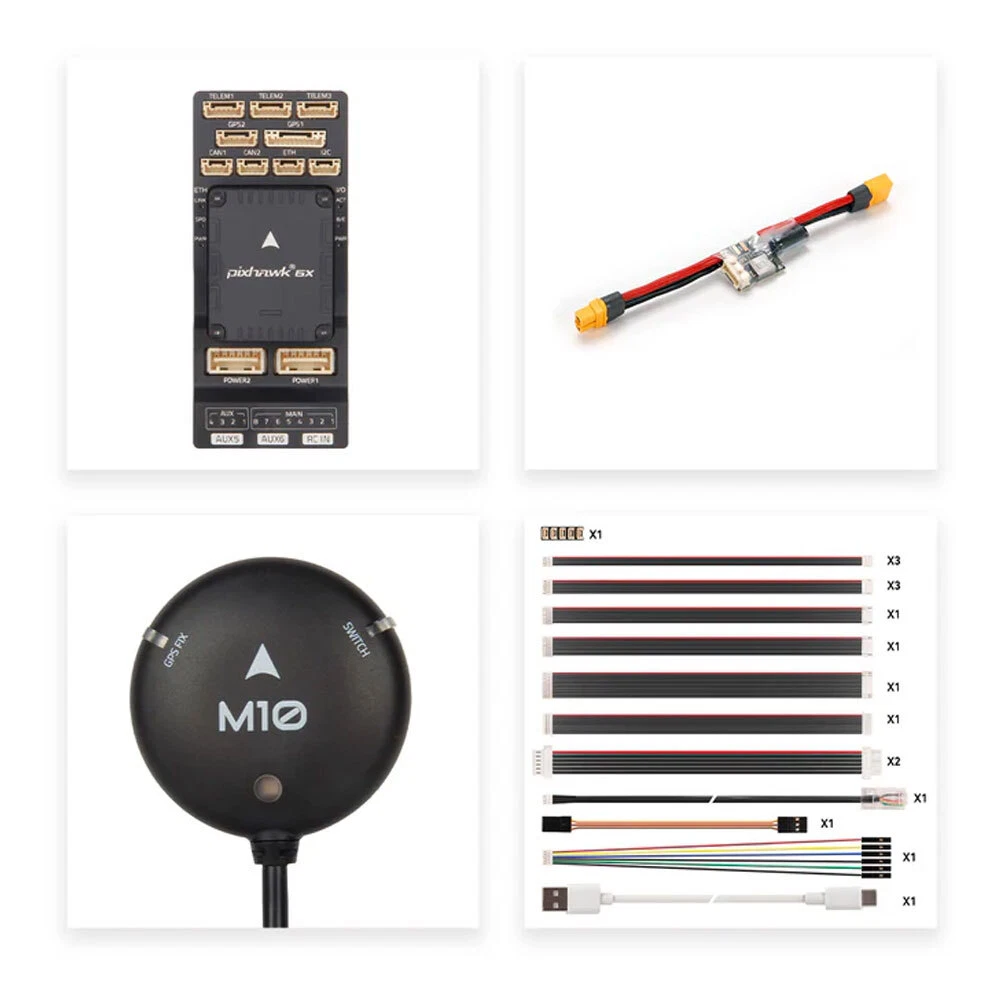

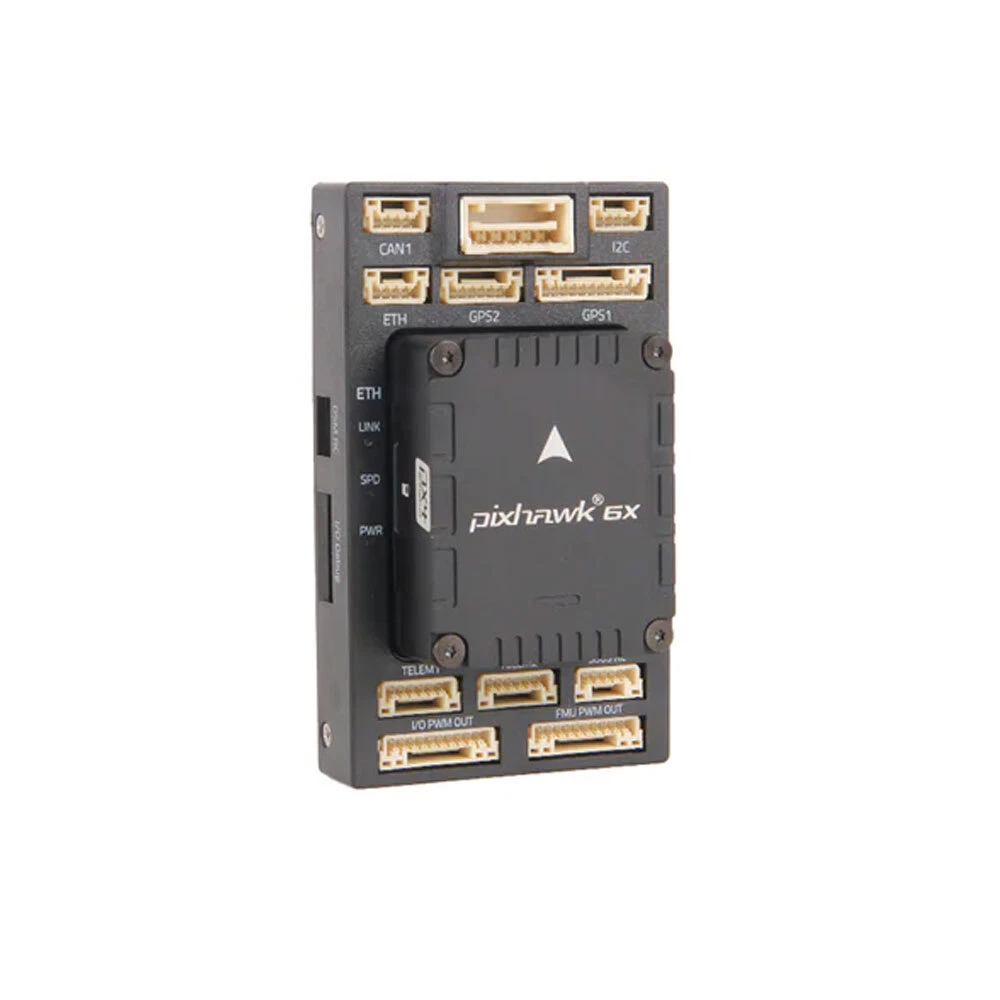

HolyBro Pixhawk 6X Flight Controller Standard Set/Mini Set w/M9N/M10 GPS Module
$ 83.53
Description

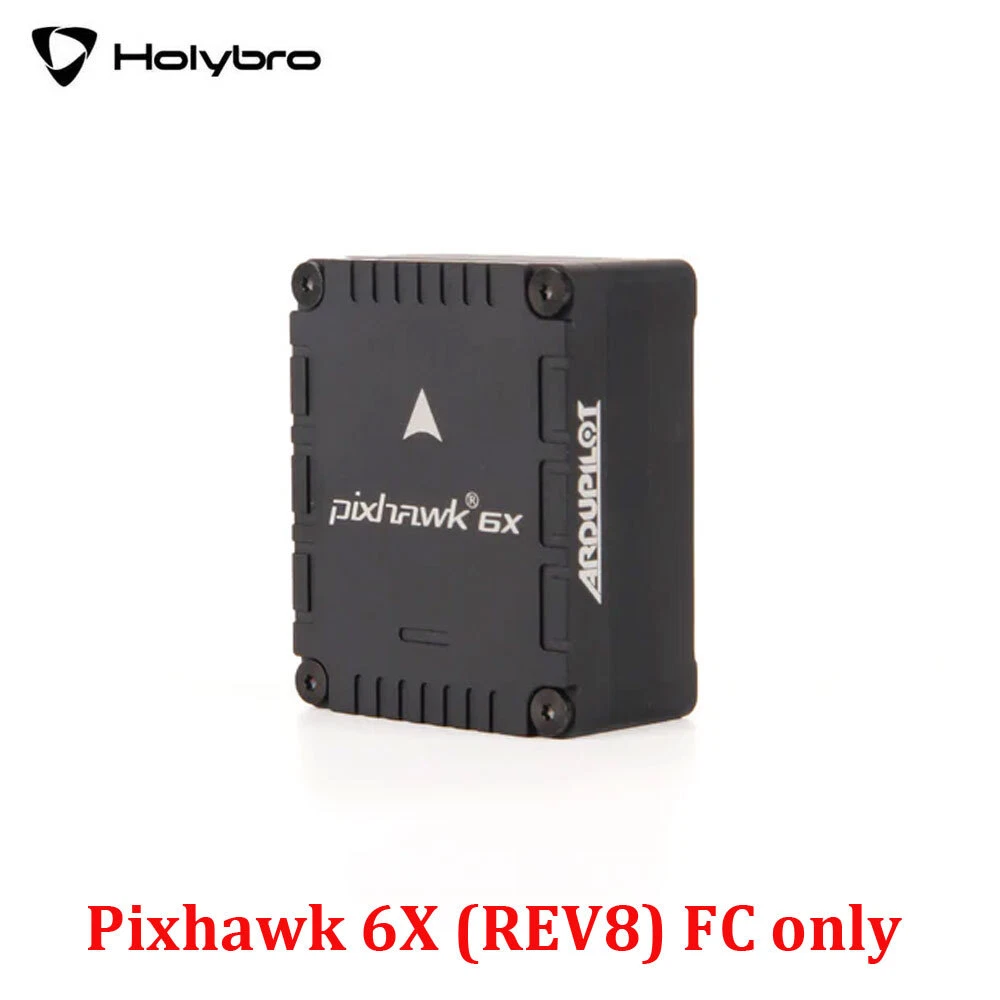

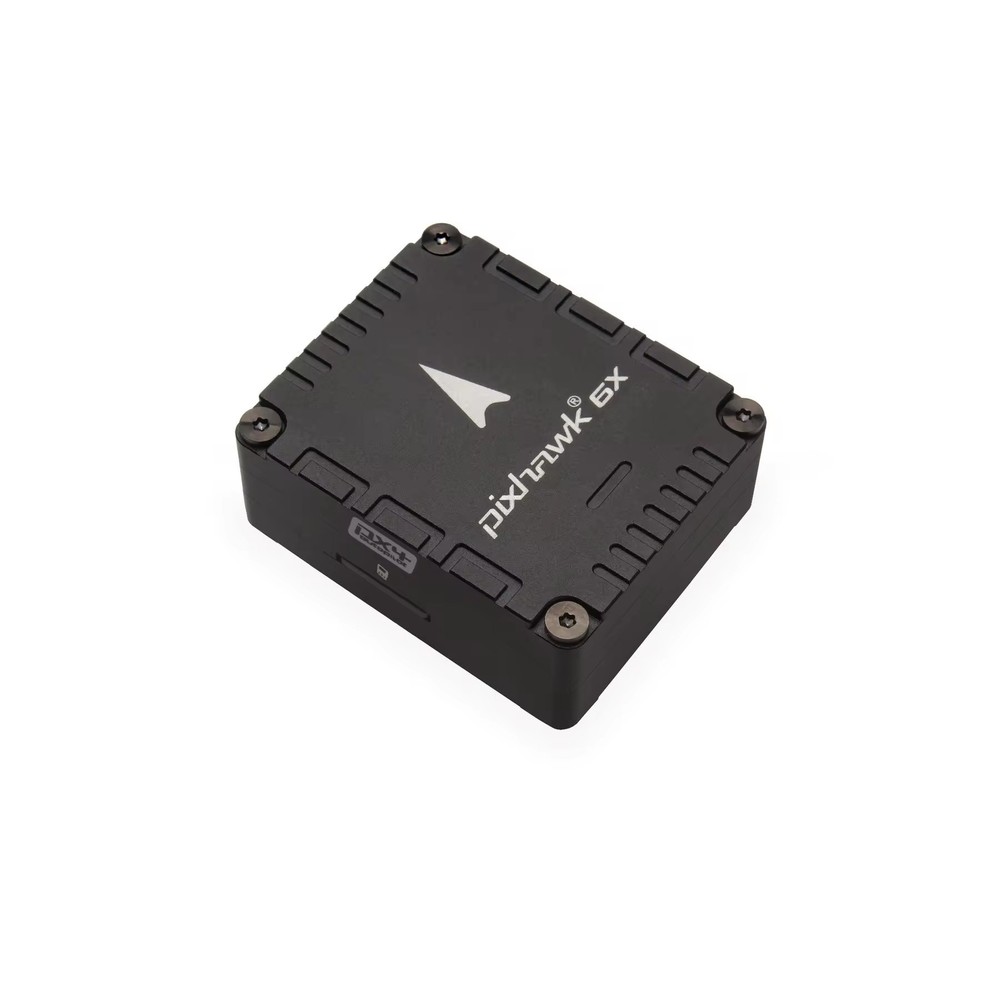

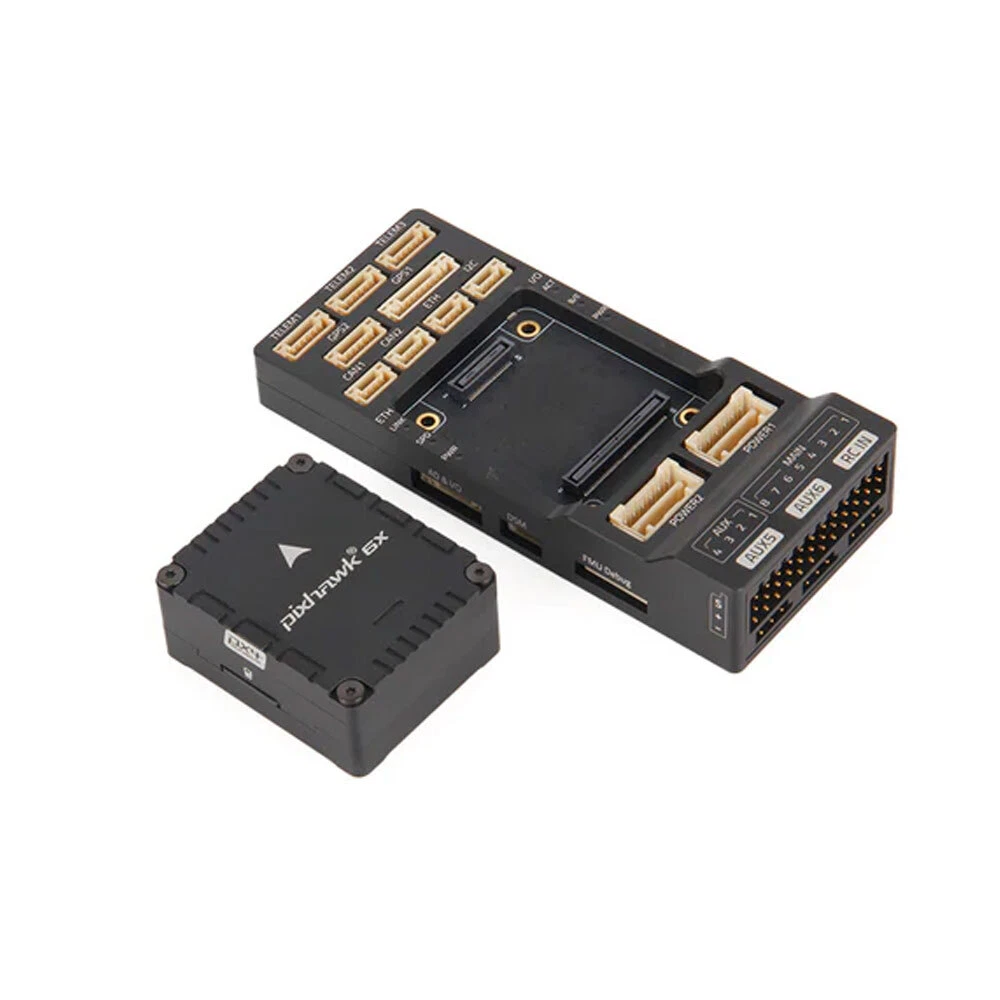

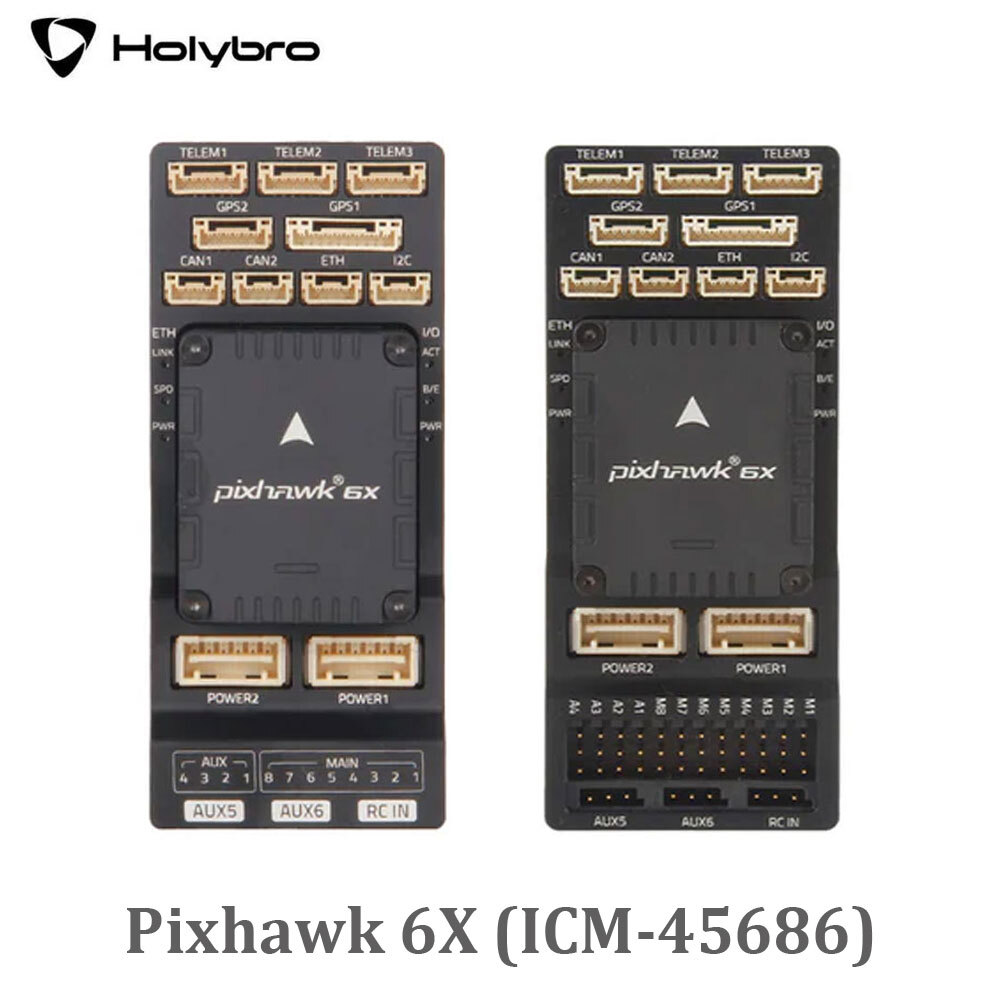

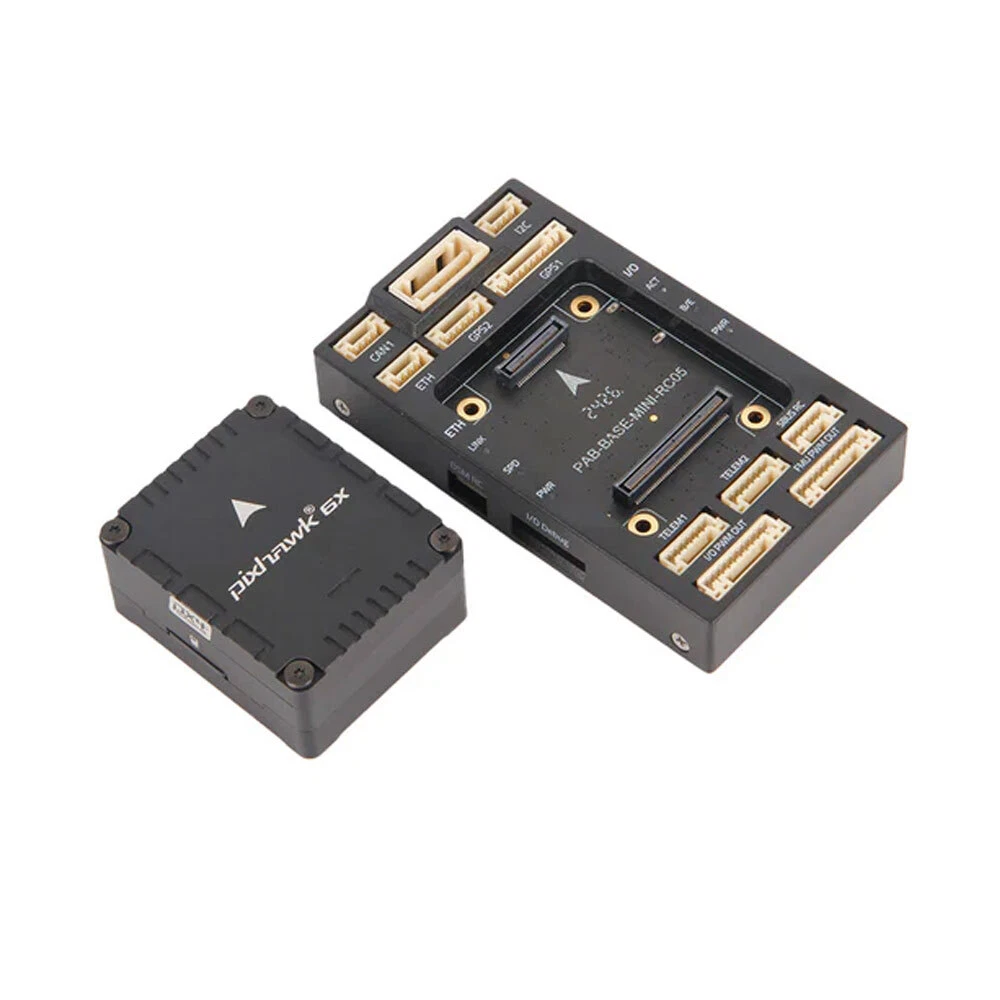

Key Design Points Redundancy: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ technology & 2x Barometer sensors High performance STM32H753 Processor with clock speed up to 480 MHz Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector. Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control All New advanced durable vibration isolation material with resonance frequency in the higher spectrum Ethernet interface for high-speed mission computer integration Temperature-controlled IMU board, allowing optimum working temperature of IMUs All new Vibration Isolation Design This new vibration isolation design uses same custom-formulated durable isolation material as the Pixhawk 6X Pro, in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drone Note The Rev 8 Version is supported in the PX4 1.14.3 release or later, as well as the Ardupilot 4.5.0 stable release or later. It ships with PX4 firmware by default. User can also use Ardupilot firmware by flashing the firmware via Mission Planner or QGroundControl. Power module comparison chart Specification Processors & Sensors FMU Processor: STM32H753 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM On-board sensors (Shipping Currently, Rev8) Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology) Barometer: ICP20100 & BMP388 Mag: BMM150 On-board sensors (Previous Revision, Rev 3/4) Accel/Gyro: BMI088/ICM-20649 Accel/Gyro: ICM-42688-P Accel/Gyro: ICM-42670-P Mag: BMM150 Barometer: 2x BMP388 Electrical data Voltage Ratings: Max input voltage: 6V USB Power Input: 4.75~5.25V Servo Rail Input: 0~36V Current Ratings: Telem1 output current limiter: 1.5A All other port combined output current limiter: 1.5A Mechanical data Dimensions Flight Controller Module: 38.8 x 31.8 x 16.8mm Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum) Mini Baseboard: 43.4 x 72.8 x 14.2 mm Weight Flight Controller Module: 31.3g Standard Baseboard: 72.5g (Aluminum) Mini Baseboard: 26.5g SKU 11073 includes: Pixhawk 6X Flight Controller Module SKU 20293/SKU 20300/SKU20313 includes: Pixhawk 6X Flight Controller Module Standard Baseboard v2A/v2B or Mini Baseboard PM02D HV Power Module Cable Set SKU 20296/20297/20314/20315 Pixhawk 6X Flight Controller Module Standard Baseboard v2A/v2B or Mini Baseboard PM02D HV Power Module Cable Set M9N/M10 GPS
Hop up is awesome. Exactly as described. This is a great seller. A+++++ Transaction. Will do business again....highly, highly recommend....shipping was VERY fast to Texas despite being shipped from China...
I have not opened the package yet or used this camera but the seller was fine. Typical of most purchases from Chinese sellers. The item was packed well, no tariff issues, and appears to be in cold shape.
Awesome seller. I gas a issue with my drone AIO and he sent me a brand new one in a very little time and without any wasting of time. Thank you.
Related products
eXcelerate 48P Direct Drive Drag Race Spur Gear🌟✨25 Years on eBay! 250,000+ feedback!✨🌟
$ 5.28Vorteks 3S 4x4 Body Skid Kit (Set Of 3)

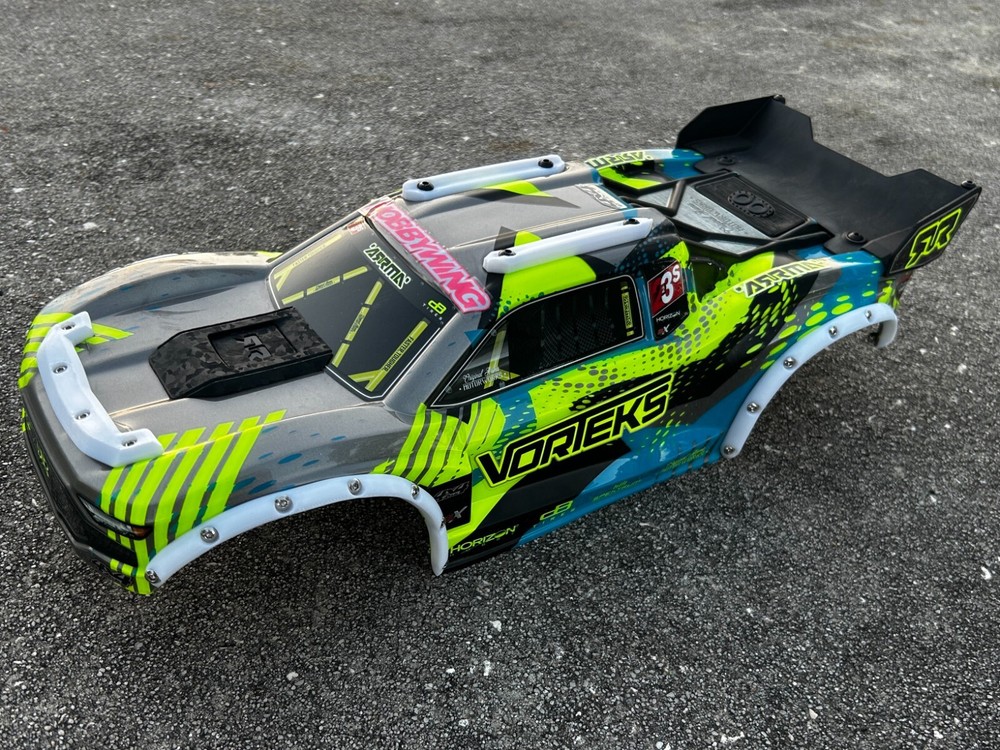

$ 8.45Vorteks 3S 4x4 Fender Flares (Set Of 4)
