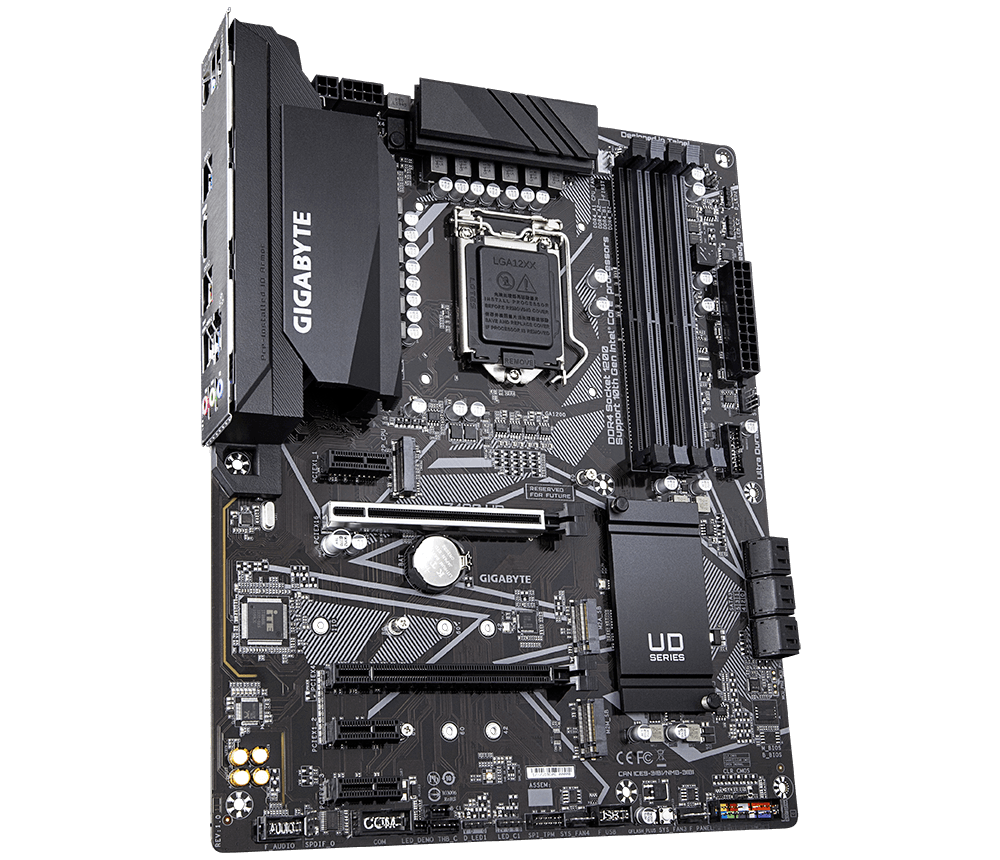

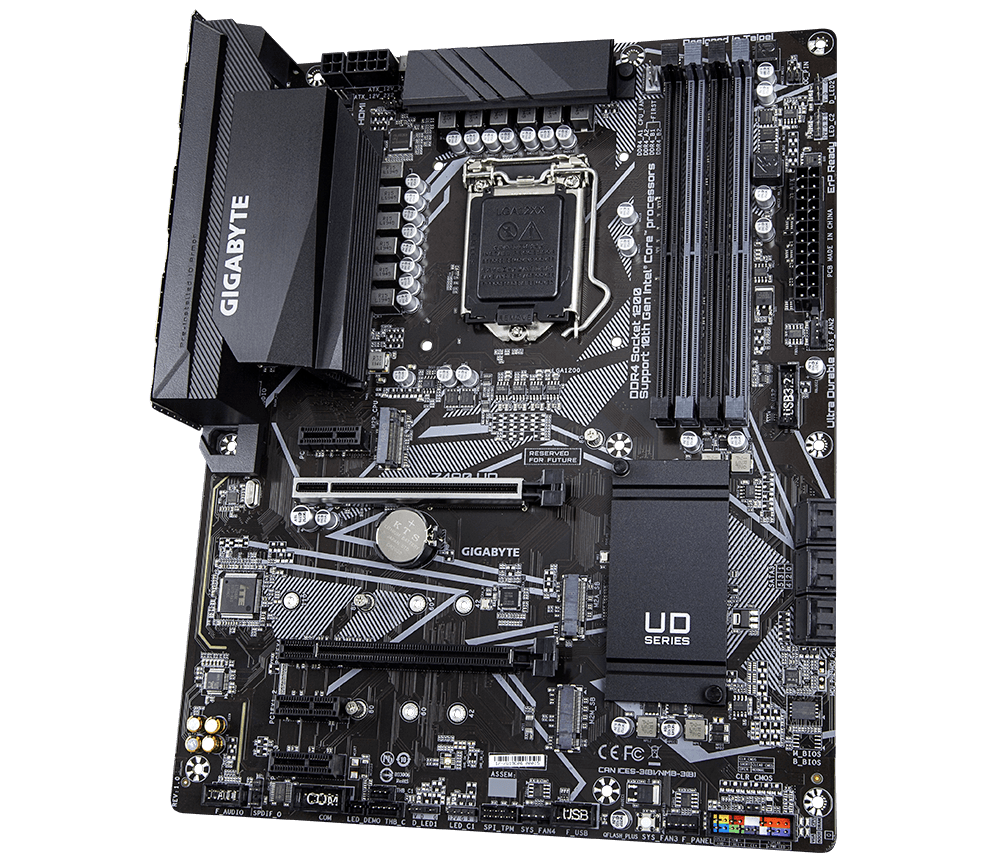

Gigabyte Z490 UD ATX Motherboard LGA1200 FOR 11th/10th i5 i7 i9-11900K 10900K

$ 38.03

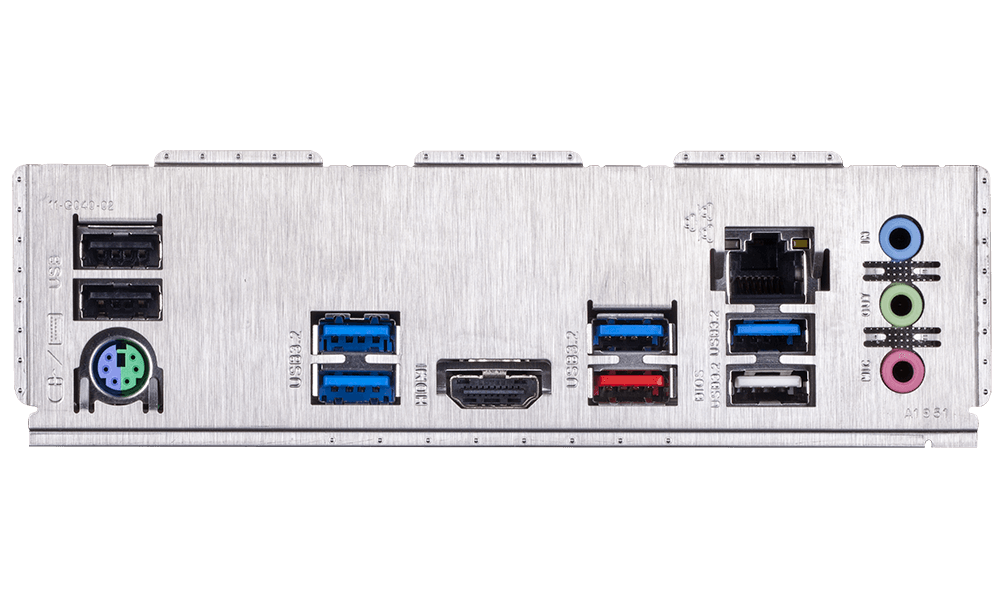

Input/Output Ports: Ethernet (RJ-45), HDMI, PS/2, USB 2.0/1.1, USB 3.2 Gen 1, USB 3.2 Gen 2 Type-A EAN: DOES NOT APPLY Seller Notes: “Tested good” Form Factor: ATX Features: Multi-GPU Support, On-Board Audio Number of Memory Slots: 4 Country of Origin: China Expansion Slots: Dual PCI Express x16, M.2, PCI Express 3.0 x1, PCI Express 3.0 x16 Model: Z490 UD Brand: GIGABYTE UPC: DOES NOT APPLY Memory Type: DDR4 SDRAM MPN: Gigabyte Z490 UD gtin13: DOES NOT APPLY Socket Type: LGA 1200 Compatible CPU Brand: Intel

Description

Store Categories Store Categories eBay Motor Fashion Electronics Collectibles & Art Home & Garden Sporting Goods Toys & Hobbies Business & Industrial Health & Beauty Other Product View Detail CPU Support for 11th/10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel® Z490 Express Chipset Memory Intel® Core™ i9/i7 processors: Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512 MB Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) Supports up to ASPM L1.2 power management protocols. Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready M.2 connectors support up to ASPM L1.2 PCIe power management protocols. USB Chipset: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x Q-Flash Plus button 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt™ add-in card connectors 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 5 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Warranty and Guarantee Feedback Payment About us Shipment Warranty and Guarantee WE PROMISE YOU CAN GET THE ITEMS YOU PAID OR REFUND. To USA: Send by e-package. To other countries: Order more than $30, provide free tracking number. Order less than $30,customer can pay $2 to get a tracking number. We located in the biggest electronic market in China--HQB(Shenzhen) ,Specialist in ICs over 10 years, we seek to establish long-term business relationships. Feedback We appreciate positive feedback . we always try our best to service our customers . so if you have ant question ,PLEASE DON’T HESITATE TO CONTACT US IMMEDIATEDLY, we are always here to offer help . Payment We prefer PayPal .For purchasing multiple items , please contact us for a combined invoice . generally we would like to receive payment thin 48 hours if . About us PLEASE BUY WITH CONFIDENCE We specialize in electronic components . ICs, Capacitors, Diodes, Resistors,LEDs, NEW , ORIGINAL parts . please buy with confidence .We offer NO-QUESTION-REFUND Shipment We provide airmail service with good package . The items will be shipped within the nest 2 business days after we received the payment . when you buy multiple items ,your shipping cost will be combined with discount . go to my store On Feb 11, 2026 at 23:36:55 PST, seller added the following information:
