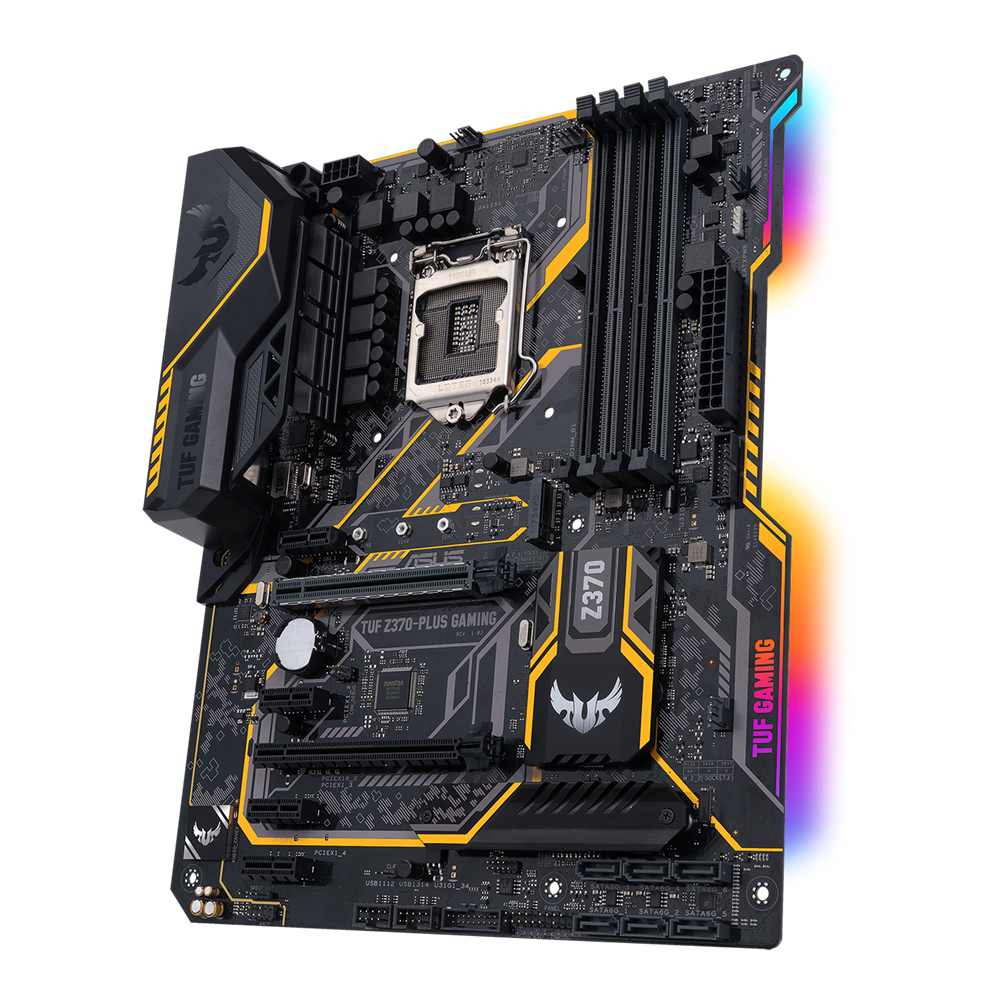

ASUS TUF Z370-PLUS Gaming LGA1151 ATX Motherboard 9th 8th gen i9 i7 i5

Description

Store Categories Store Categories Battery Auto Parts & Accessories Toys & Hobbies Smart Electronics Sports & Outdoor Business & Industrial Home & Garden Fashion/Beauty Battery Series CPU Series Other Item Description TUF Z370-PLUS GAMING CPU Supports Intel® 14nm CPU,Supports Intel® Turbo Boost Technology 2.0,Intel® Socket 11519th / 8th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors,* Refer to ASUS for CPU support list Chipset Intel® Z370 Memory 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *,* The maximum memory frequency supported varies by processor.,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture,* Refer to ASUS for the Memory QVL (Qualified Vendors Lists). Graphic Multi-VGA output support : HDMI/DVI-D ports,Integrated Graphics Processor- Intel® HD Graphics support,Maximum shared memory of 1024 MB (for iGPU exclusively),- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Multi-GPU Support Supports AMD CrossFireX™ Technology Expansion Slots *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.,1 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) *,4 x PCIe 3.0/2.0 x1,1 x PCIe 3.0/2.0 x16 (max at x4 mode) Storage Intel® Z370 Chipset : ,2 x M.2 Socket 3* 1 , , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode),6 x SATA 6Gb/s port(s), gray,Support Raid 0, 1, 5, 10,Intel® Optane™ Memory Ready LAN Intel® I219V, 1 x Gigabit LAN Controller(s),ASUS Turbo LAN Utility,TUF LANGuard Audio - Supports : Jack-detection, Front Panel Jack-retasking, Audio Feature : ,- Exclusive DTS Custom for GAMING Headsets.,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.,Realtek® ALC8878-Channel High Definition Audio CODEC USB Ports 2 x USB 3.1 Gen 2 port(s) (2 at back panel, +teal blue, Type-A),1 x USB 5Gb/s port(s) port(s),6 x USB 3.1 Gen 1 port(s) (2 at back panel, +blue), Intel® Z370 Chipset : ,6 x USB 2.0 port(s) (2 at back panel, ), ASMedia® USB 3.1 Gen 2 controller : Special Features TUF ENGINE! Power Design : ,- TUF Components (Choke, Cap. & MOSFET; certified by military-standard),- ASUS O.C. Tuner, Overclocking Protection : ,- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution,- ASUS Fan Xpert 4 Core, M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) ,- ASUS C.P.R.(CPU Parameter Recall), ASUS TUF PROTECTION ,- ASUS SafeSlot: Protect your graphics card Investment,- ASUS ESD Guard: Enhanced ESD protection,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!, ASUS EPU : ,- EPU, AURA : ,- Aura Lighting Control,- Aura RGB Strip Headers, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger, ASUS Quiet Thermal Solution :, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM,- ASUS DIGI+ VRM: Precision control for stable power Back I/O Ports 1 x 5Gb/s port(s) USB Type-C TM ( support 3A power output ),2 x USB 3.1 Gen 2 (teal blue),2 x USB 3.1 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s) Internal I/O 1 x W_Pump+ Header,2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode),1 x AIO PUMP Header,2 x Chassis Fan connector(s) (2 x 4-pin),1 x Aura RGB Strip Header,2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin),1 x System panel connector,2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s) BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE Operating System Windows® 11 64-bit Feedback Payment Shipment About us Feedback We appreciate positive feedback . we always try our best to service our customers . so if you have ant question ,PLEASE DON’T HESITATE TO TELL US, we are always here to offer help . Payment We prefer PayPal .For purchasing multiple items , please contact us for a combined invoice . generally we would like to receive payment thin 48 hours if . Shipment We provide airmail service with good package . The items will be shipped within the nest 2 business days after we received the payment . when you buy multiple items ,your shipping cost will be combined with discount . SHIPPING TIME (weekends/holidays excluded) Country Name Shipping Time Country Name Shipping Time USA/Canada 10 -15d Spanish/Portugue 10-25d East/South Asia 10 -15d France/West Asia 10-25d United Kingdom 10 -20d Italy 10-30d Australia/New Zealand 10 -15d West Asia/Middle East 15-25d Most Country of West/North Europe 10-20d South America and Africa 15-30d East /Middle Europe/Russia 10-25d About us NEW, GOOD QUALITY, ORIGINAL PACKAGE LARGE STORE AND THE LOWEST PRICE NO-QUESTION-REFUND, FOR LARGE QUANTITY ,OFFER BETTER PRICE, ORIGINAL PACKING(TAPE REEL/TUBE/TRAY） We specialize in electronic components . ICs, Capacitors, Diodes, Resistors, LEDs, Transistors, and so on. Especially in Hard To Find Parts . we only sell NEW , ORIGINAL parts . please buy with confidence .We offer NO-QUESTION-REFUND go to my store On 27-Dec-2025 at 03:03:13 GMT, seller added the following information: On Feb 11, 2026 at 23:46:35 PST, seller added the following information:
