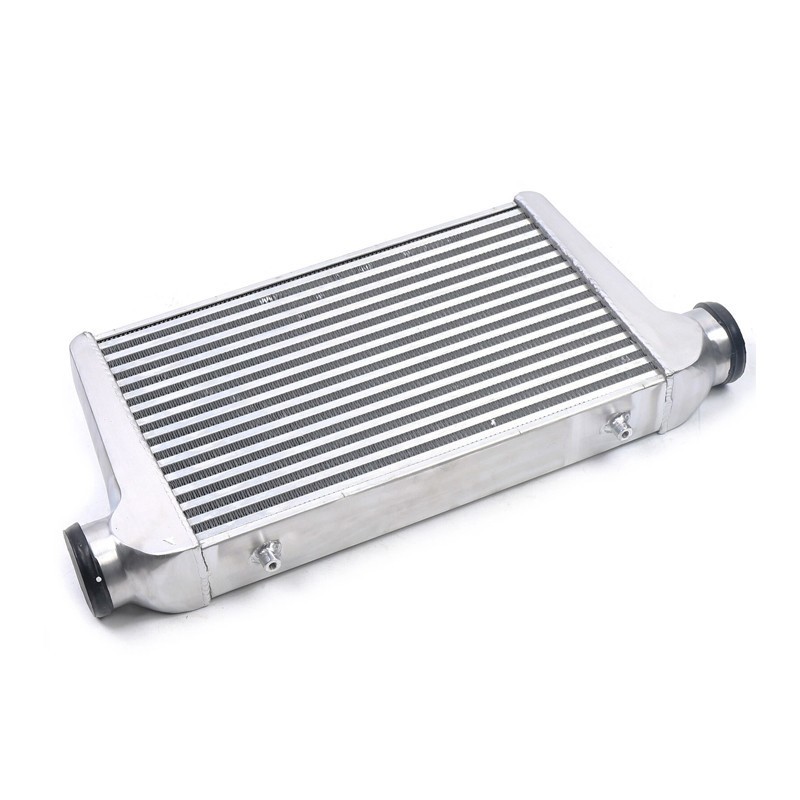

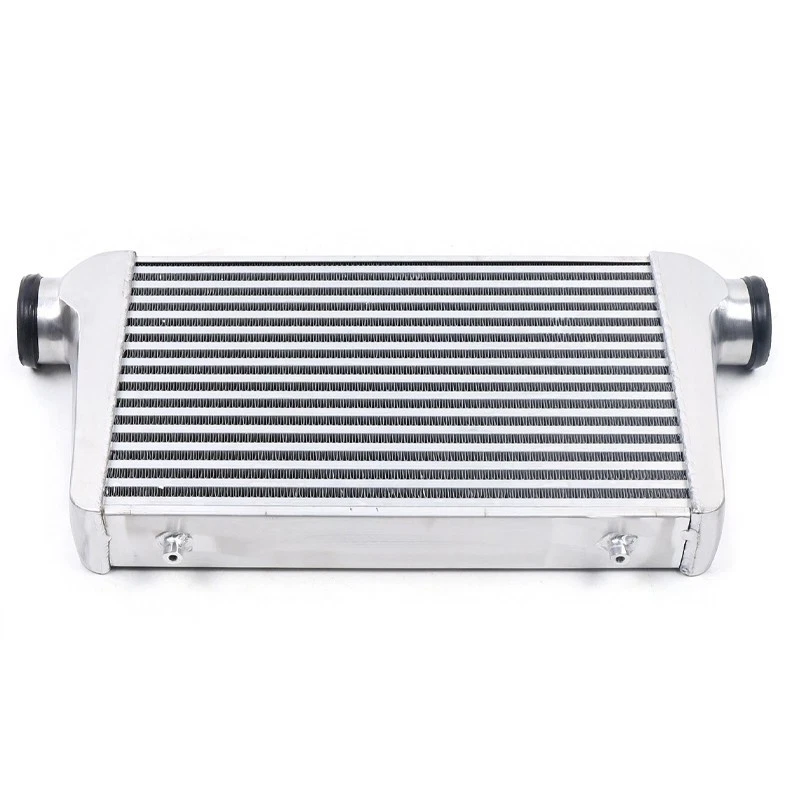

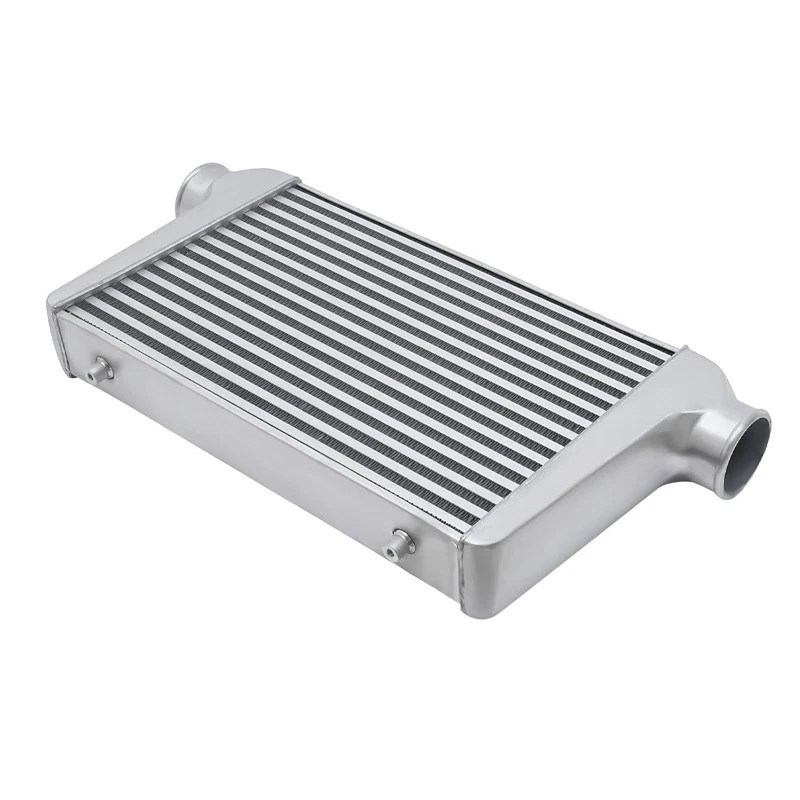

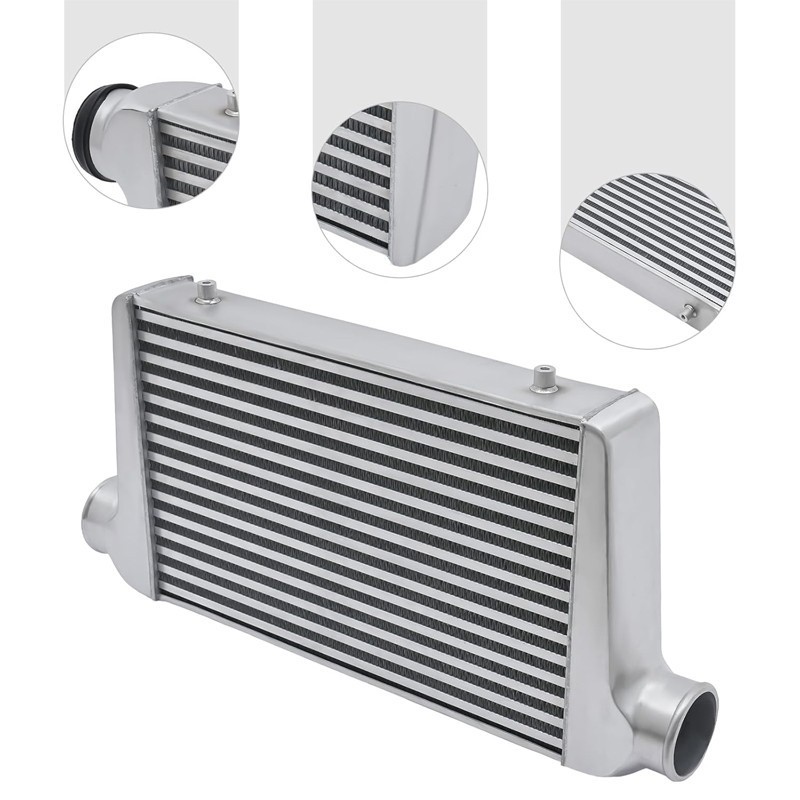

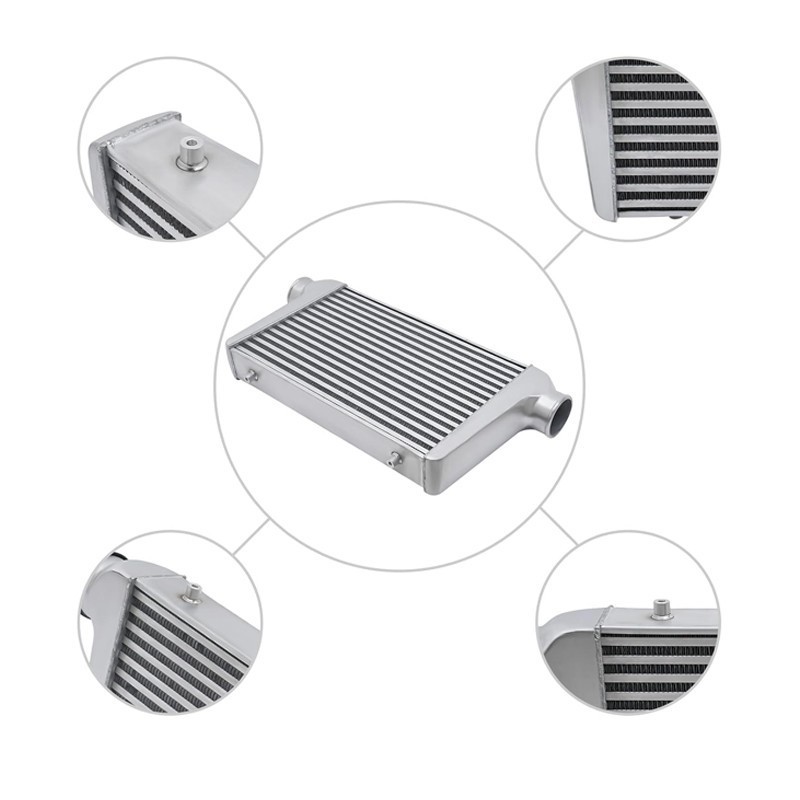

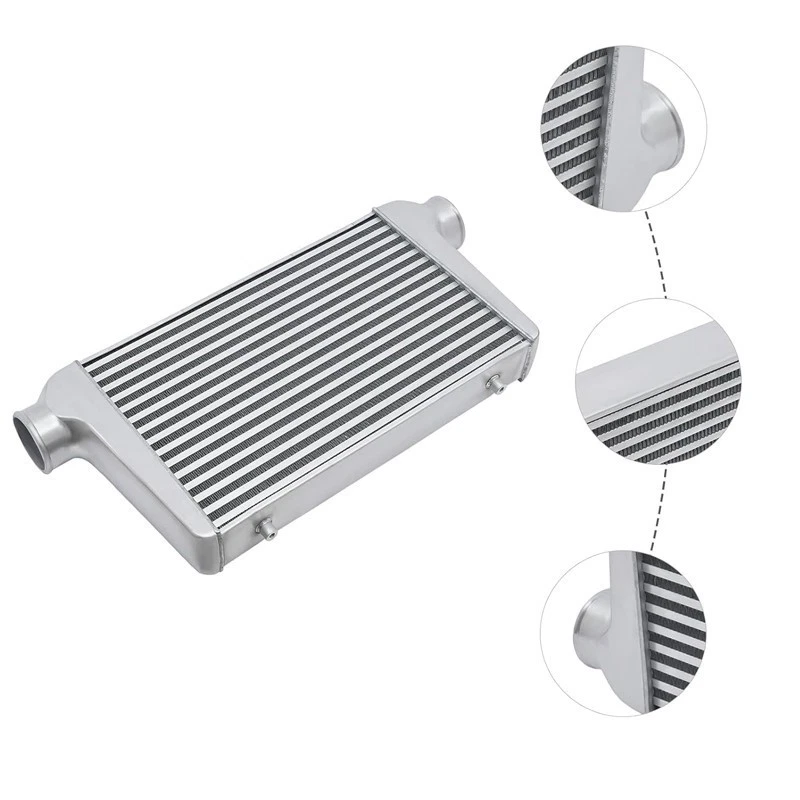

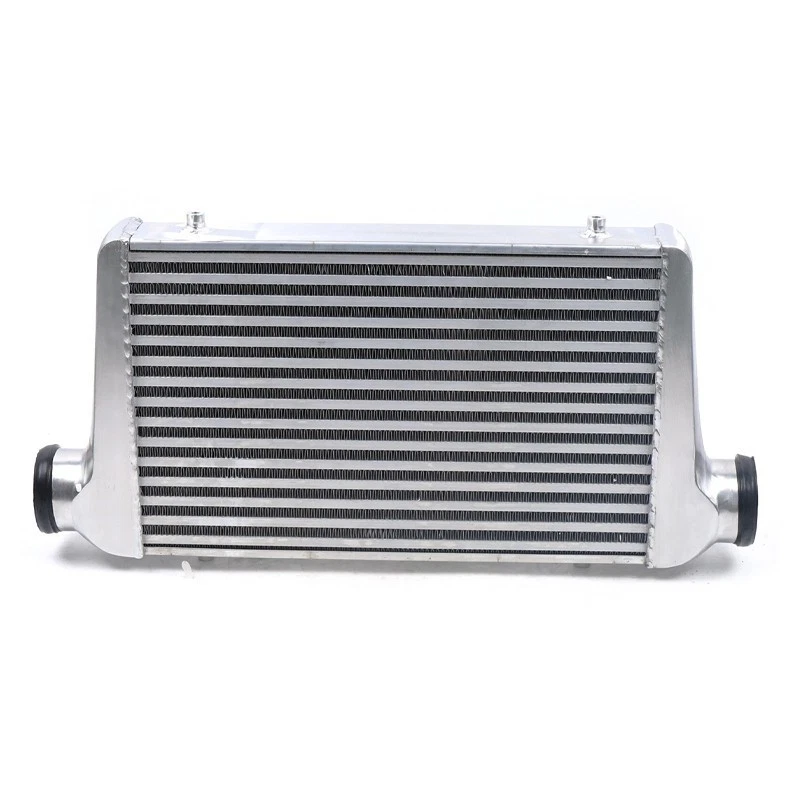

Universal 25"x12"x3" FMIC Aluminum Turbo Intercooler 3inch Inlet & Outlet NEW
$ 52.74
Description

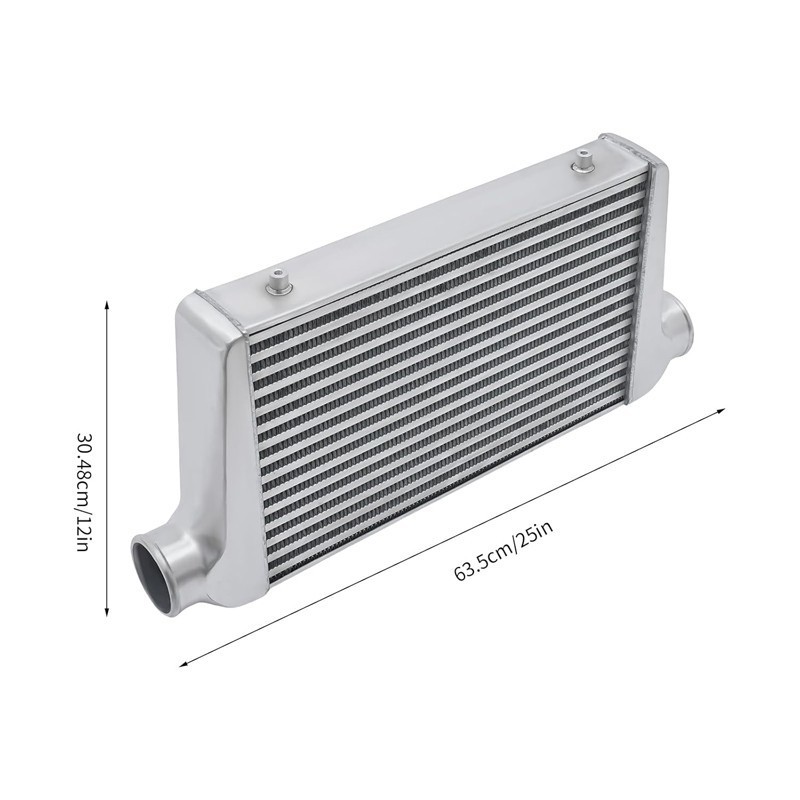

Universal 25"x12"x3" FMIC Aluminum Turbo Intercooler 3inch Inlet & Outlet NEW Universal 25"×12"×3" FMIC Aluminum Turbo Intercooler – 3" Inlet/Outlet | 500 Max HP Rating 100% Aluminum Construction | 3" Thick Core | 5-50PSI Working Pressure | Universal Turbo Fit High-performance front-mount intercooler (FMIC) engineered for universal turbocharger systems, delivering optimal airflow, efficient heat dissipation, and support for up to 500 horsepower for modified and high-performance vehicles. 1. Core Specifications Parameter Details Condition 100% Brand New Material 100% Aluminum (machine cut, stamped, and hand-welded) Finish Silver (raw aluminum, corrosion-resistant) Critical Dimensions - Overall Size: 25" × 12" × 3" - Core Size: 18" × 11.5" × 2.5" - Core Thickness: 3" (7.62cm) - Inlet/Outlet Diameter: 3" (matching core thickness for maximum flow) Performance Ratings - Max HP Support: 500 HP - Compress Air Flow Rate: <350 Cubic Feet/Min (CFM) - Working Pressure: 5~50PSI - Pressure Drop: 2~5psi @ 35psi 0.2~0.5psi @ 15psi - Operating Temperature Range: 32°F~302°F (0°C~150°C) Design & Placement Front-Mount Intercooler (FMIC); universal fit for left/right/rear/upper vehicle placement Fitment Type Direct replacement/upgrade for any turbocharger system Package Contents 1×Aluminum Turbo Intercooler 2. Universal Compatibility This FMIC intercooler is 100% universal and compatible with any vehicle equipped with a turbocharger system , including: Performance cars, trucks, and SUVs Modified street vehicles and race cars Diesel and gasoline turbocharged engines Custom turbo builds and aftermarket forced induction setups ⚠️ Critical Fit Note: Allow 1–3mm measurement variance due to manual manufacturing. Professional measurement of your engine bay/air intake routing is recommended before installation to ensure proper fitment. 3. Key Features & Advantages 🔹 100% Aluminum High-Strength Construction Full aluminum build : Machine cut, stamped, and hand-welded for superior durability and heat transfer – far more robust than plastic-end intercoolers. Corrosion-resistant silver finish : Raw aluminum finish is optimized for heat dissipation and resists corrosion from road debris, moisture, and underhood heat. Leak-free welding : Hand-welded seams ensure airtight performance under extreme boost pressures (up to 50PSI), eliminating boost leaks and pressure loss. 🔹 3" Thick Core for Maximum Performance 3" inlet/outlet & core thickness : Matched large diameter ports and thick core minimize airflow restriction, delivering maximum boost pressure to the engine. 500 HP support : Rated for up to 500 horsepower, making it ideal for mild to aggressive turbo builds and high-performance driving applications. Low pressure drop : Only 2~5psi pressure drop at 35psi boost (0.2~0.5psi at 15psi) – preserves boost pressure and engine power while cooling compressed air. 🔹 Efficient Heat Dissipation & Airflow Optimal flow & volume : Designed to maximize compressed air flow (≤350 CFM) and heat exchange, reducing intake air temperature for denser air/fuel mixtures and more power. Wide operating temperature range : Handles intake air temperatures from 32°F to 302°F (0°C to 150°C), performing reliably in extreme hot/cold weather conditions. Front-mount design : Ideal for front placement (the coolest area of the engine bay) to maximize heat rejection from ambient air flow while driving. 🔹 Universal Fit & Easy Upgrade Multi-position placement : Compatible with front, left, right, rear, or upper mounting positions, offering flexibility for custom turbo system installations. Direct replacement potential : Can replace OEM or aftermarket intercoolers in turbocharged vehicles with 3" inlet/outlet piping, with minor fabrication for custom setups. Performance upgrade for all turbo cars : A cost-effective upgrade for any turbo vehicle looking to improve cooling efficiency, increase boost capacity, and unlock more horsepower. 4. Important Notes Installation : Professional installation is highly recommended (no instruction manual included). Custom piping, mounting brackets, and hardware may be required for your specific vehicle/turbo setup. Measurement Variance : Allow 1–3mm differences due to manual manufacturing – all dimensions are within industry-standard tolerance for universal fitment. Color/Finish : Silver aluminum finish may appear slightly different in person due to display/lighting differences; the finish is designed for maximum heat dissipation and durability. Order Support : Contact the seller ASAP for order cancellations (only possible before shipping). For fitment, defects, or other issues, reach out first – we resolve problems promptly to ensure your satisfaction. Feedback Policy : Please contact us before leaving neutral/negative feedback, as we’re committed to solving all product-related concerns for our customers.
