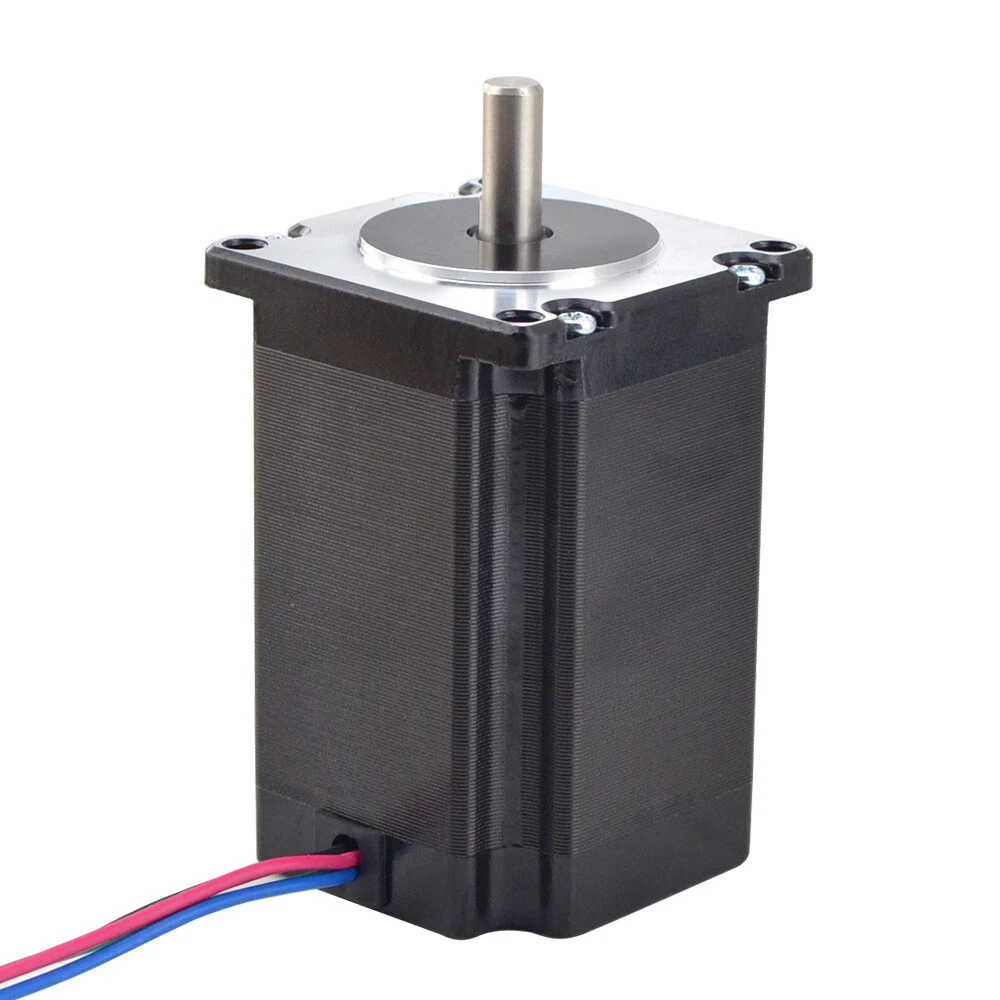

STEPPERONLINE 3X Nema 23 Stepper Motor 2.4Nm(340oz.in)4A 8mm Shaft 57x82mm CNC

$ 38.73

Brand: StepperOnline Rated Current per Phase: 4.0A Shaft Type: D-cut Country/Region of Manufacture: China Model: 23HS324004S gtin13: 749346653081 Full Step Angle: 1.8° (200 Steps) Actual Rated Input Voltage: Bipolar Holding Torque: 2.4Nm(339.79oz.in) UPC: 749346653081 Nominal Rated Input Voltage: 24-48VDC Resistance per Phase: 0.9ohms Current Type: DC EAN: 0749346653081 Wiring Configuration: 4-Wire Bipolar MPN: 23HS324004S Shaft Diameter: 8mm

Description

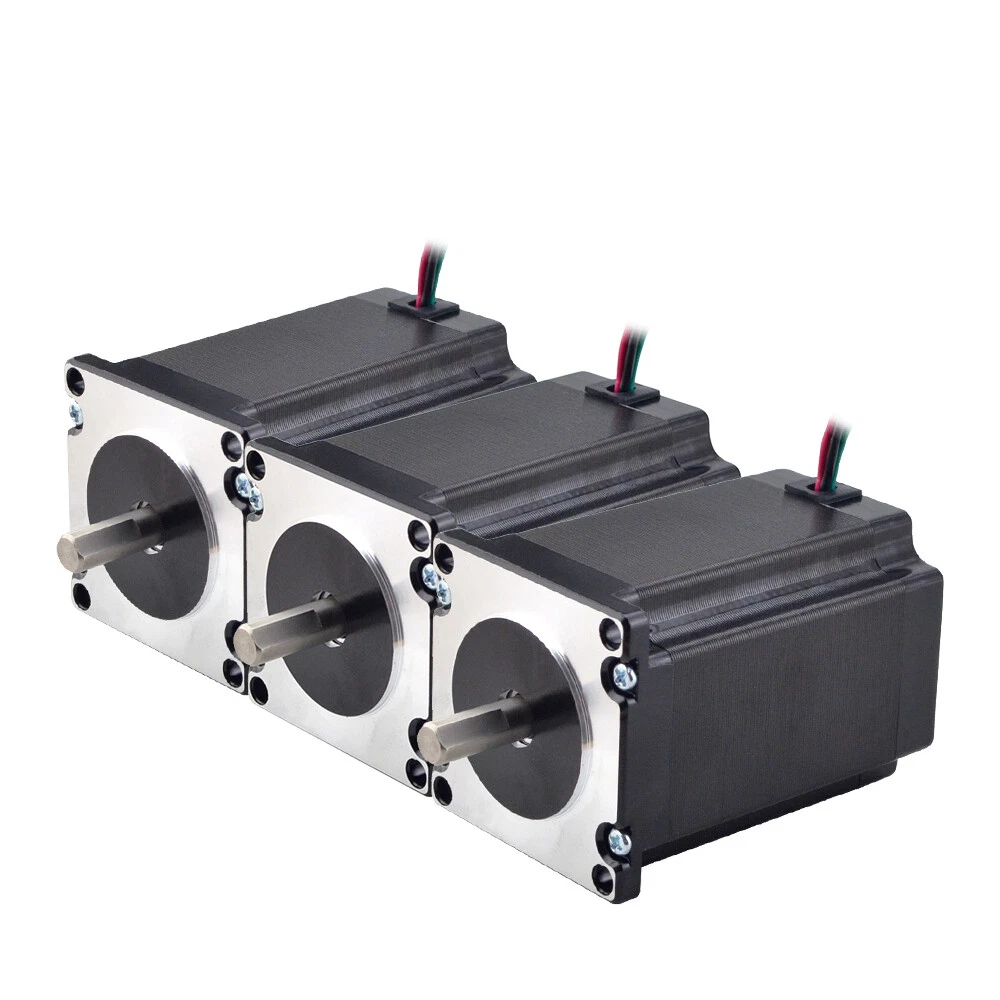

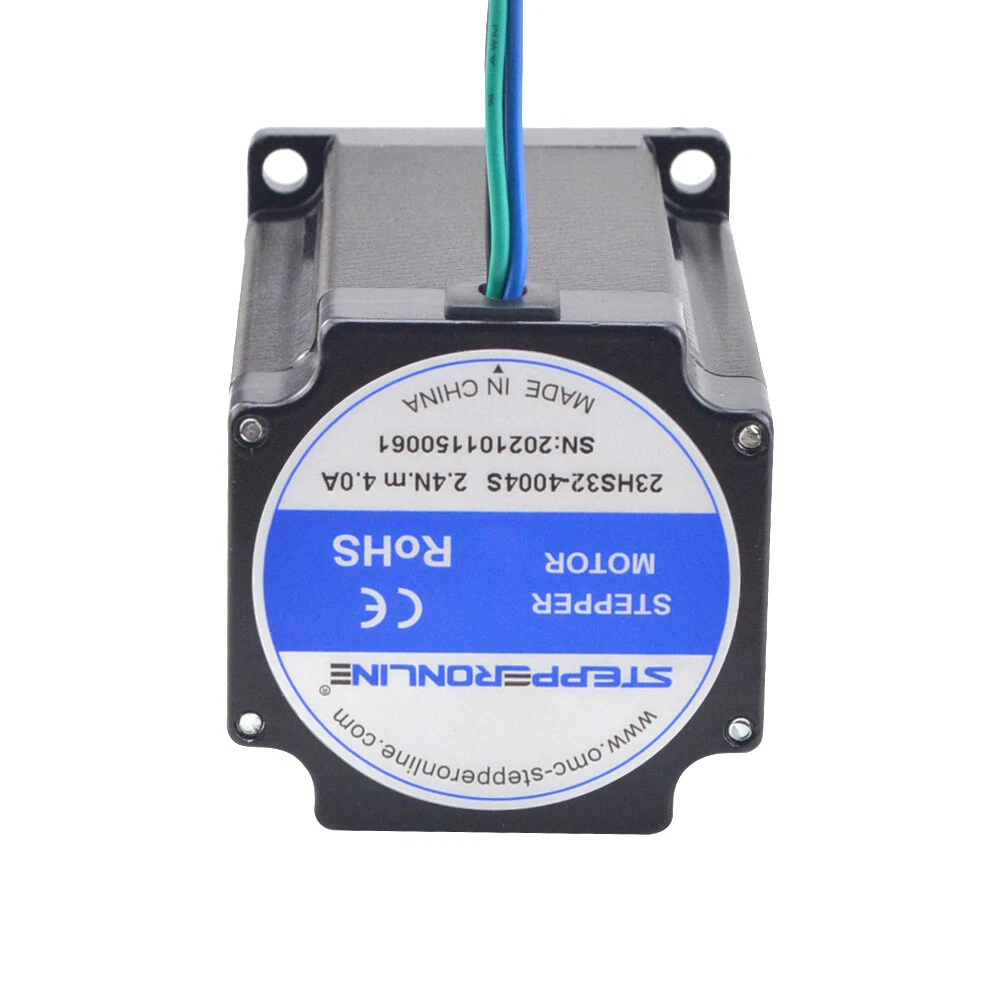

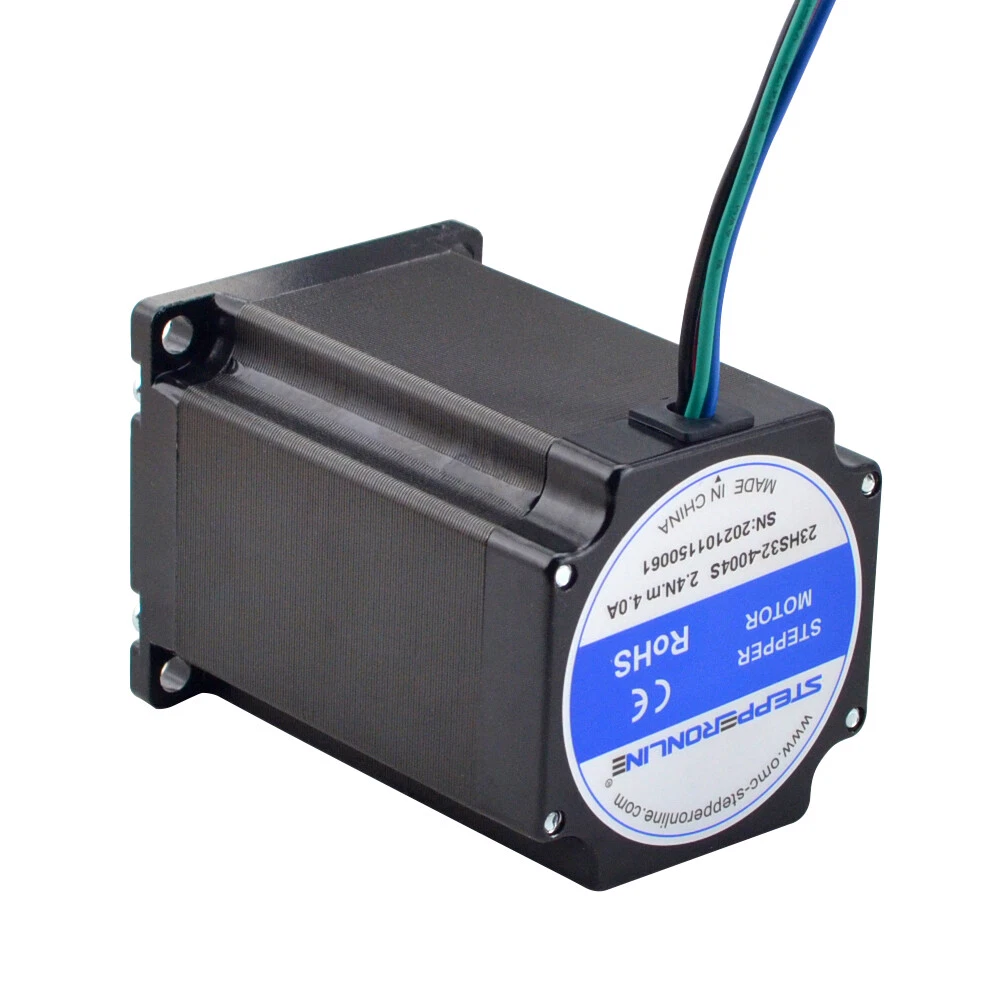

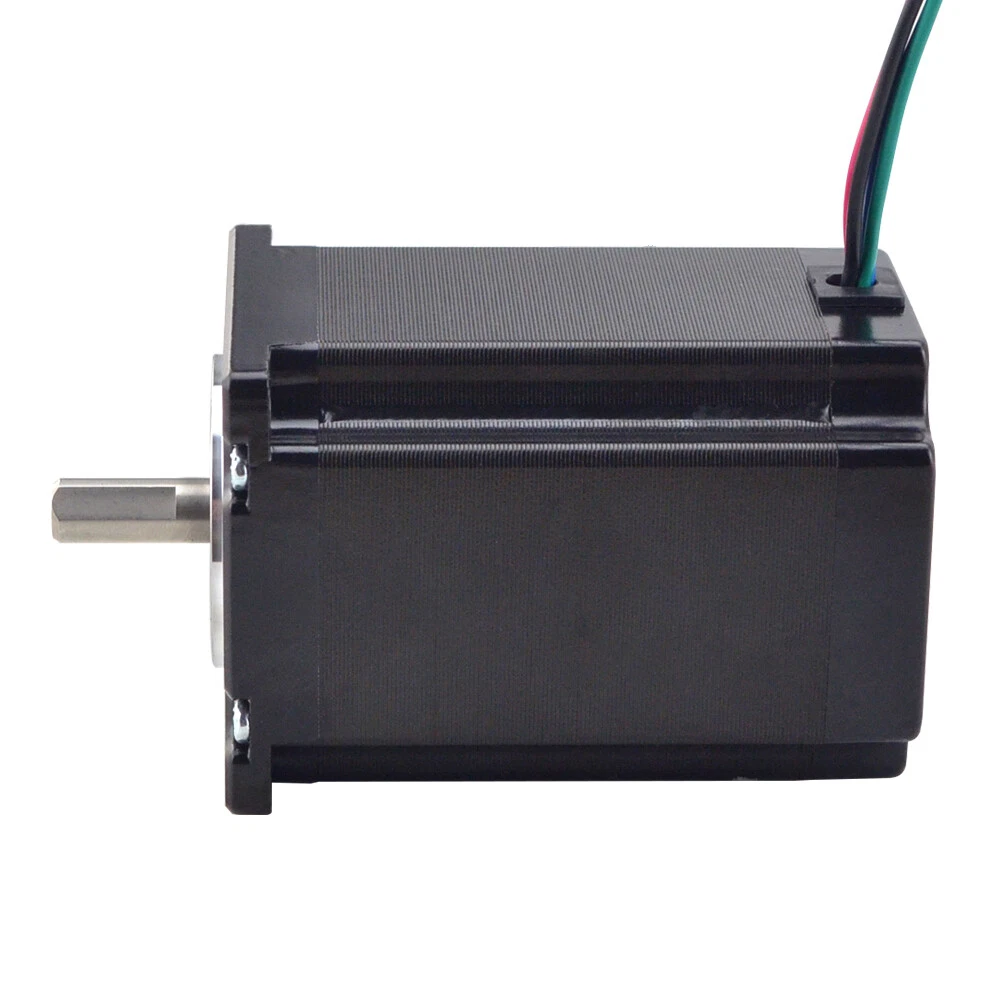

Package include: 3pcs Nema 23 Stepper Motor Electrical Specification Manufacturer Part Number: 23HS32-4004S Number Of Phase: 2 Step Angle: 1.8 deg Holding Torque: 2.4Nm(339.79oz.in) Rated Current/phase: 4.0A Phase Resistance: 0.9ohms Inductance: 3.4mH ± 20%(1KHz) Physical Specification Frame Size: 57 x 57mm Body Length: 82mm Shaft Diameter: Φ8mm Shaft Length: 21mm D-cut Length: 15mm Number of Leads: 4 Lead Length: 300mm Weight: 1.2kg Connection
