KS8028 V56K OEM SBC Board MC68060 Industrial CPU Board General Micro Systems

$ 78.68

Brand: Unbranded Seller Notes: “processor detached, looks ok, condition unknown” Country of Origin: United States

Description

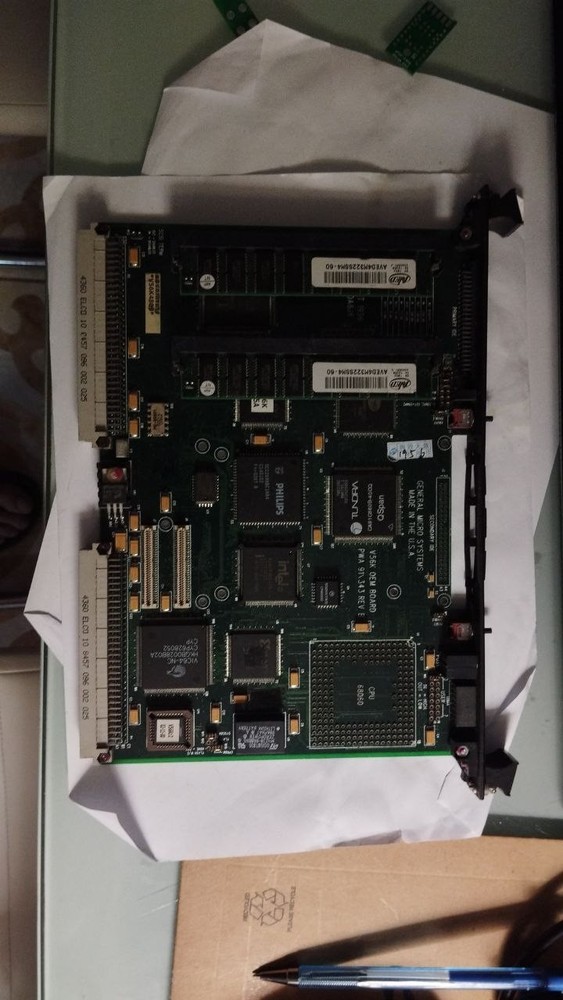

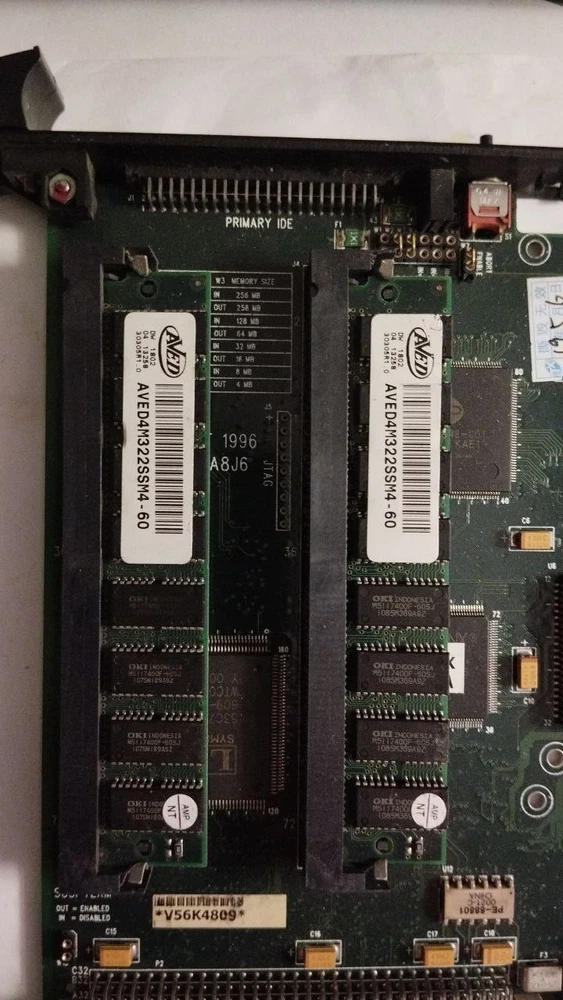

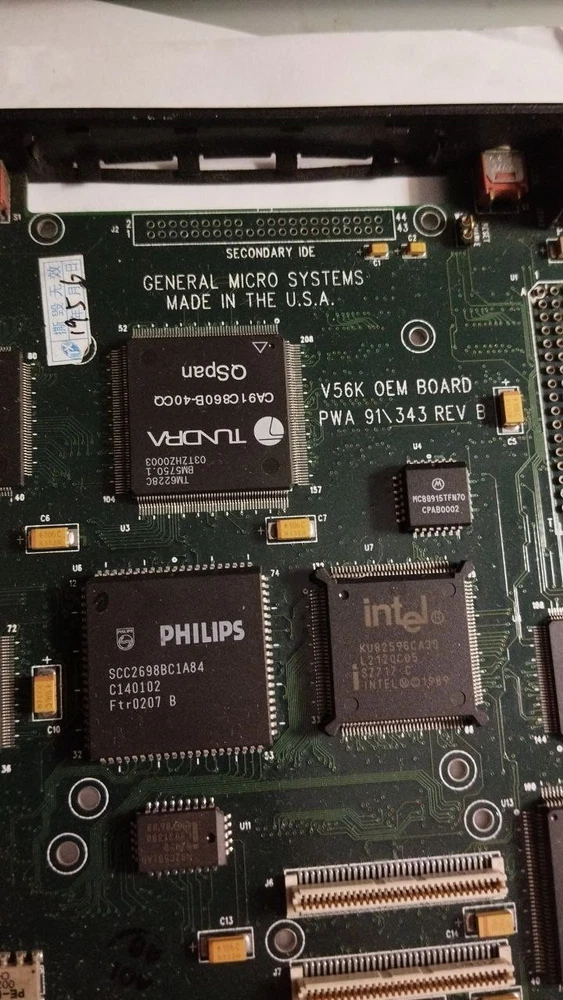

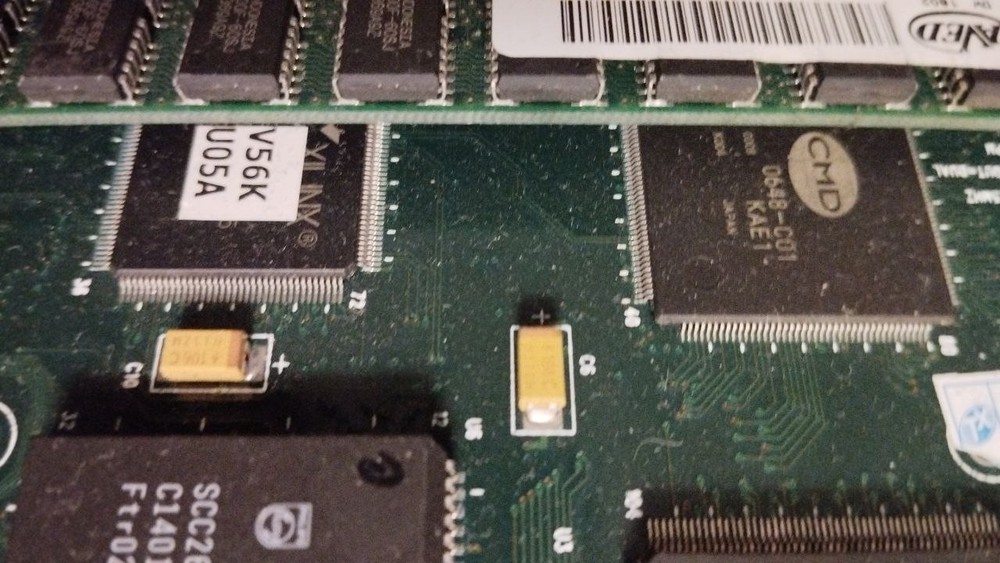

KS8028 V56K OEM SBC Board – MC68060 System – General Micro Systems – Industrial Controller – For Parts Industrial single board computer (SBC) removed from KS8028 wire welding equipment . Manufactured by General Micro Systems (USA) . The board is labeled: V56K OEM BOARD PWA 91-343 REV B General Micro Systems – Made in the U.S.A. The board originally used a Motorola MC68060RC50 processor , which has been removed. Because of this the board is sold for parts / repair / component harvesting / restoration projects . This is a rare 68060-based embedded controller used in industrial equipment. Major Components on the Board CPU (missing) Motorola MC68060RC50 (socket footprint present, CPU removed) Logic / Controllers Tundra CA91C860B-40CQ – QSpan PCI bridge Intel KU82596C – PCI / ISA bridge controller Philips SCC2698BC1A84 – Octal UART serial controller Motorola MC88915TFN70 – Clock generator Programmable Logic 2 × Xilinx XC95144 CPLD Memory 2 × RAM modules installed in sockets Connectors Primary and Secondary IDE(socket missing) interface Multiple expansion connectors / headers Industrial backplane connectors Condition Removed from KS8028 wire welding equipment CPU removed Board otherwise visually complete Untested Sold AS-IS for parts or repair Included 1 × KS8028 V56K OEM SBC board (exact board shown) CPU NOT included Applications Suitable for: Repair of KS8028 welding equipment Motorola 68060 embedded system projects Vintage industrial SBC collection Component harvesting (CPLD, UART, bridge chips, RAM) Retro computing / reverse engineering Contact us Please contact if any questions via direct messages. Shipping Shipping using tracked mail from Hungary to worldwide.
