Heavy Duty Air Pressure Switch Sunny L4, 4 Port, 95-125 PSI, 25

$ 15.96

Current Rating: 25 Amps Package Dimensions: 4.06 x 4.02 x 3.46 inches Type: Does not apply Global Trade Identification Number: 00197809004602 Item Weight: 14.4 ounces Switch Type Pressure Switch: Material Brass gtin13: 7445013591511 Operating Voltage: 230 Volts Part Number: SU-L4_a Batteries Included?: No Color: Black Control Method: Touch Contact Type: Normally Open Connector Type: Screws Mounting Type Panel Mount: Specification Met CE, UL, ETL Connectivity Protocol: X-10 Wattage: 14375 watts Contact Material: Brass Or Alloy Steel Terminal: Screw Brand: Does not apply Actuator Type: Plunger Operation Mode: ON-NONE-ON Item model number: SU-L4_a Unit Count: 1 Count UPC: 7445013591511 Number of Items: 1 Circuit Type: 4-way Number of Positions: 4 Batteries Required?: No

Description

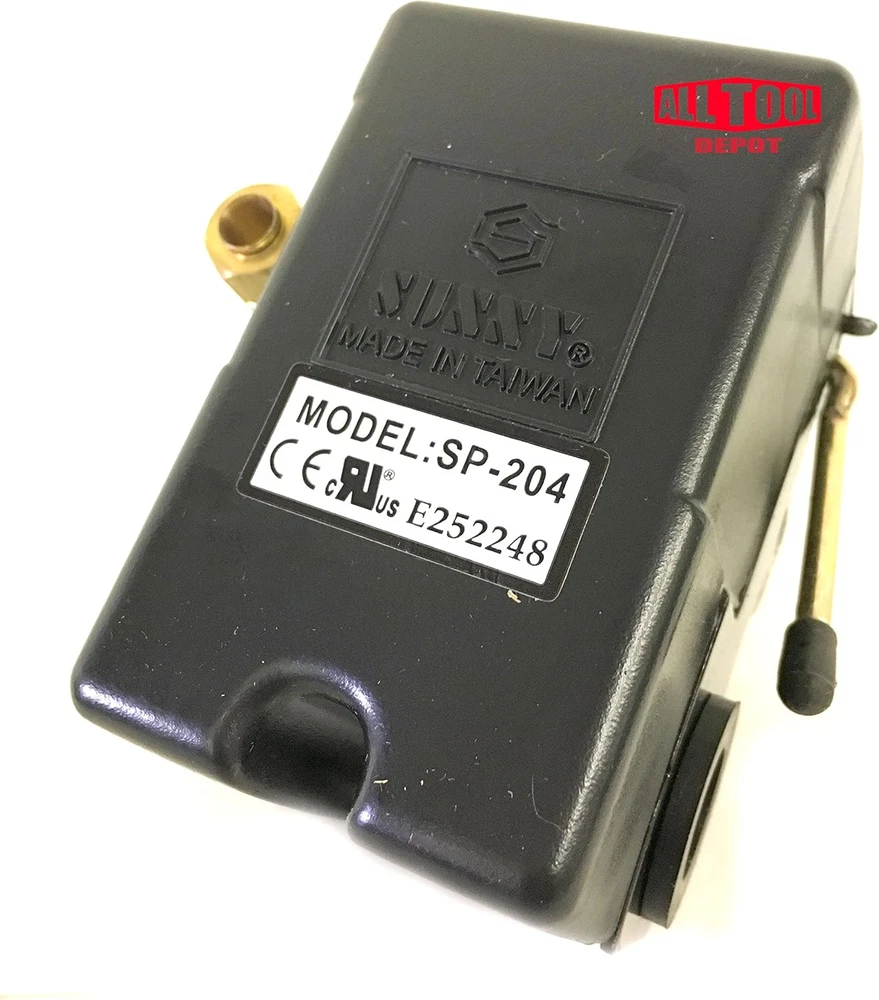

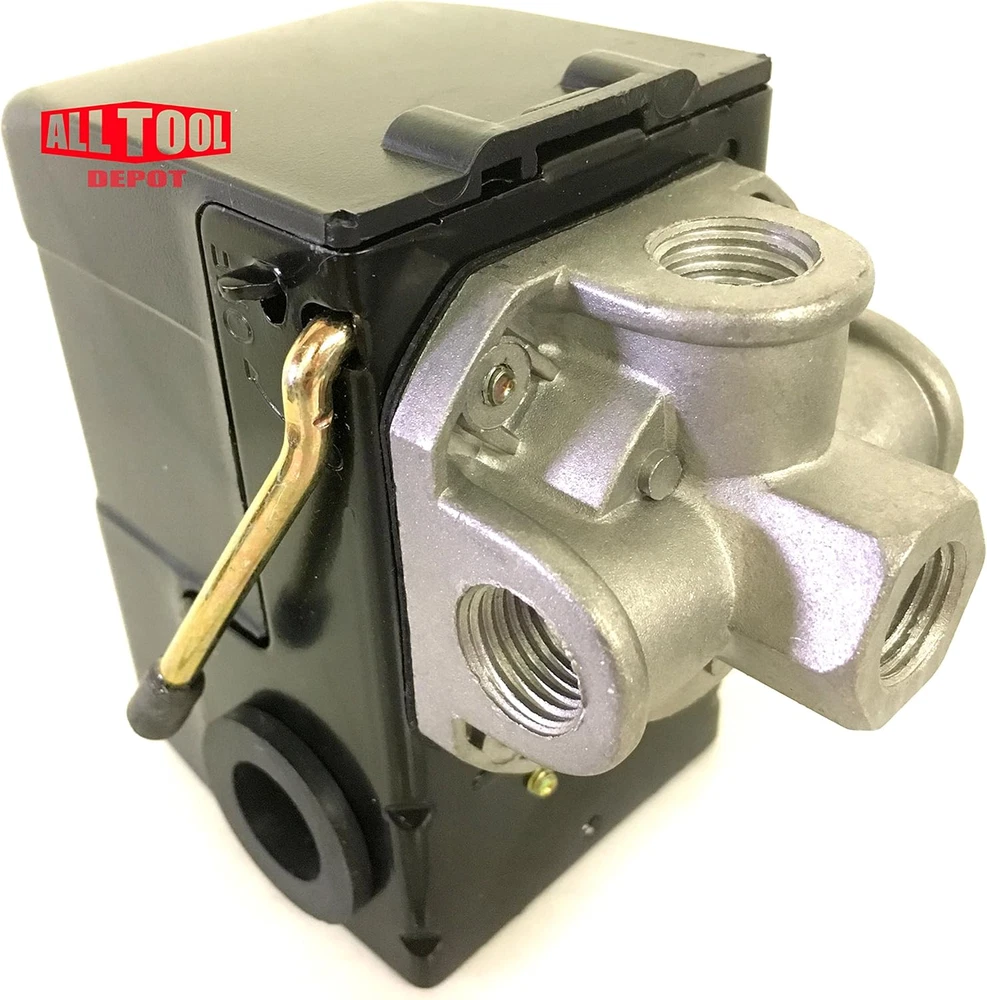

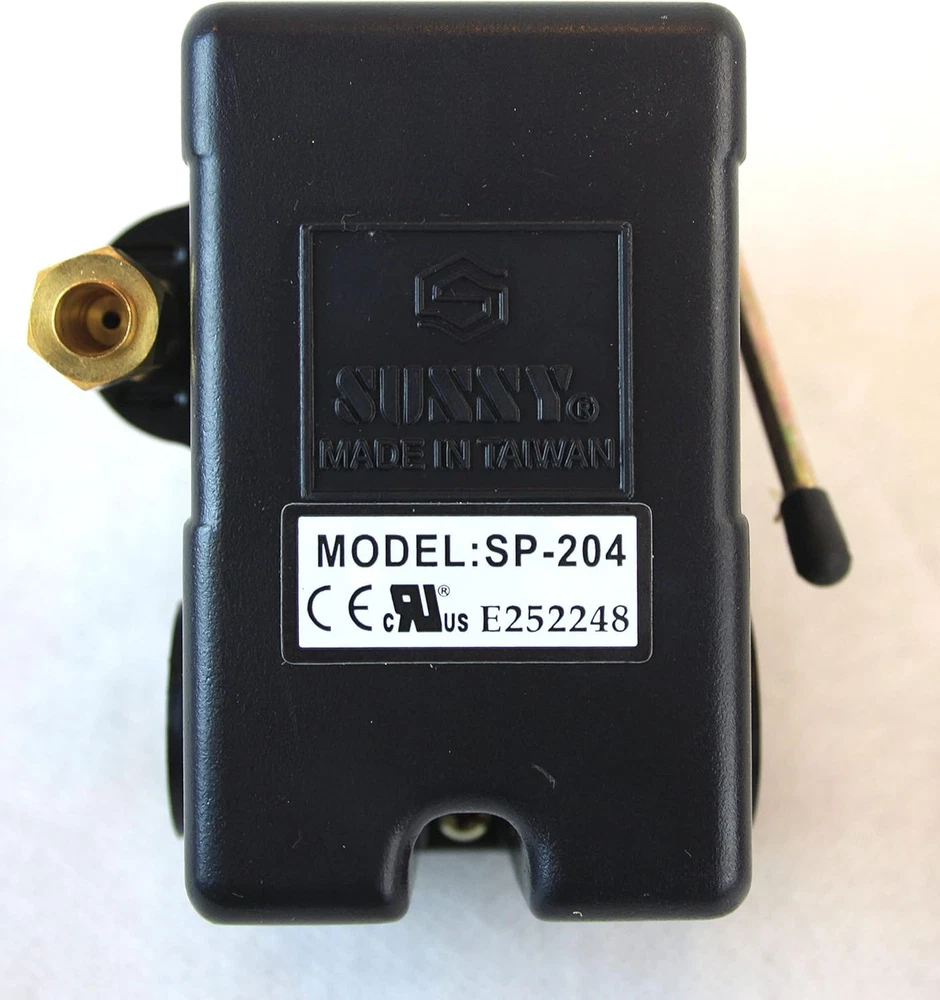

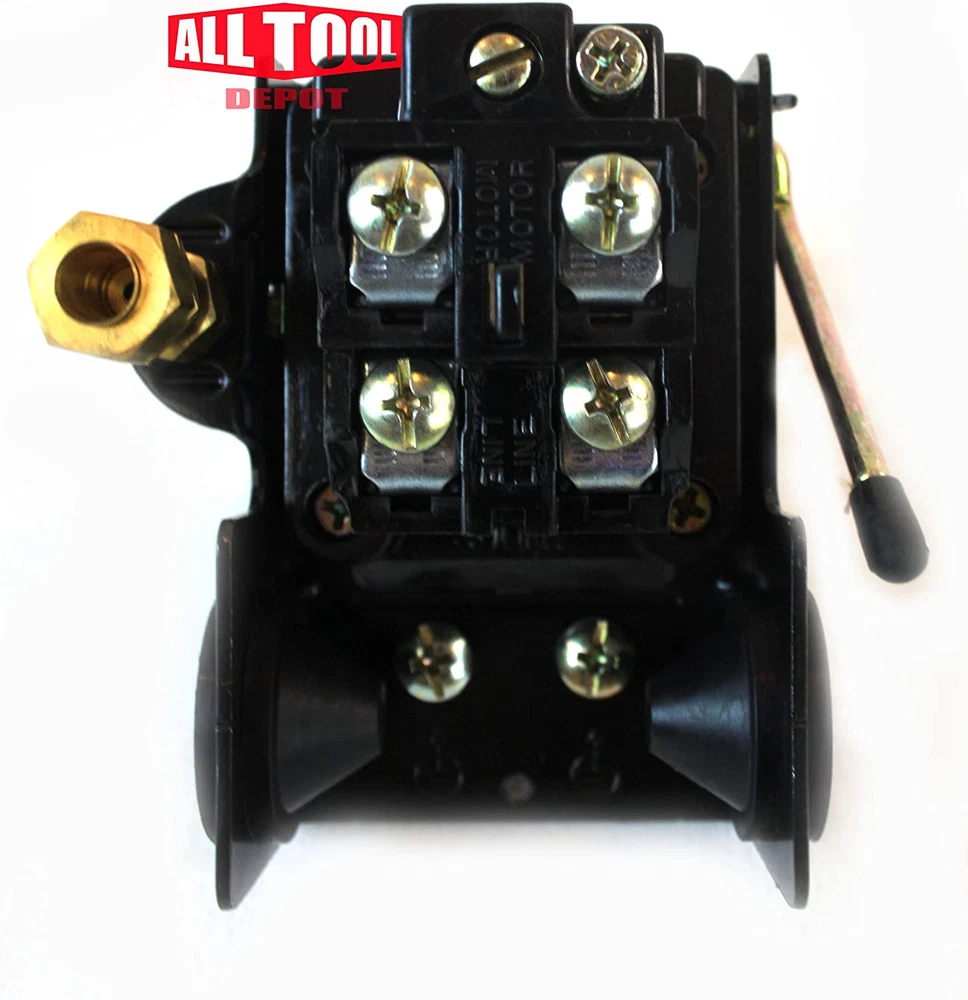

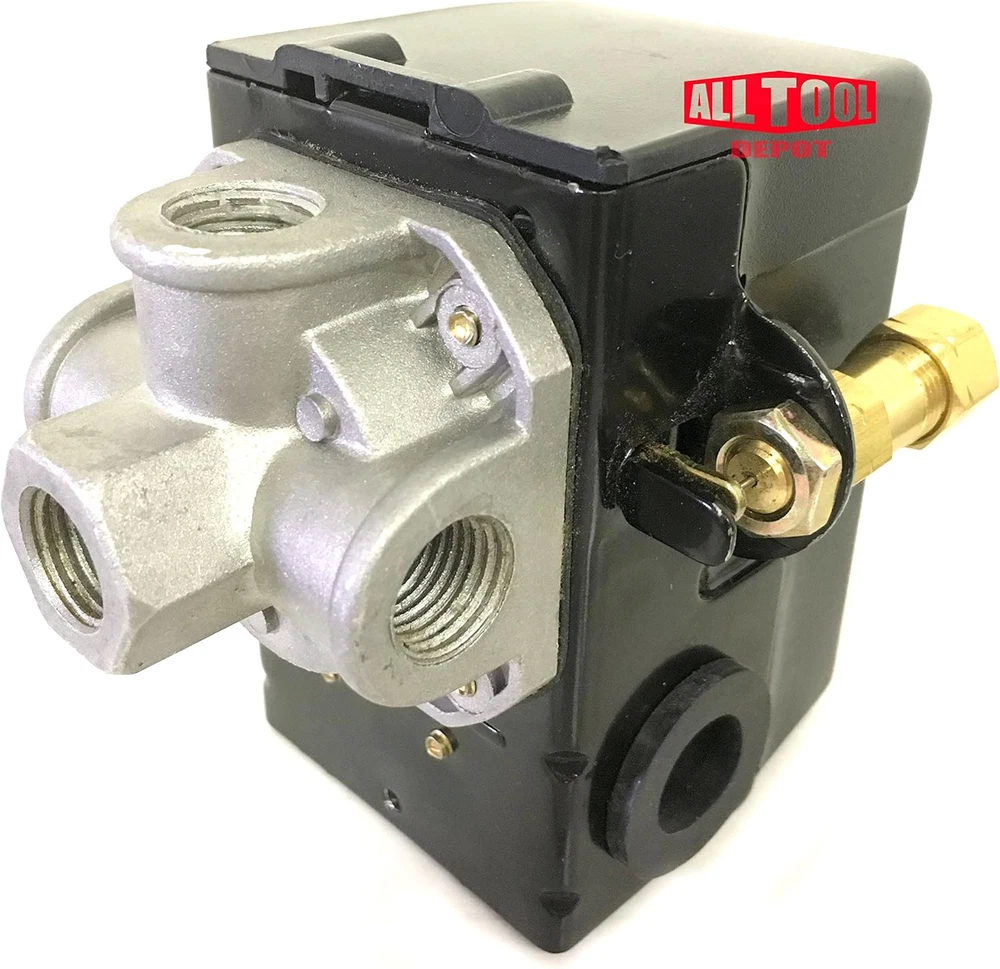

Heavy Duty SUNNY 95-125 PSI air compressor pressure switch, 4 Ports. MAX PRESSURE: 200 PSI MIN CLOSE: 60 PSI, 25AMP DIFFERENTIAL: 28-40 PSI 1/4" COMPRESSION UNLOADER VALVE CONNECTION, 1/4" FEMALE NPT TANK CONNECTION. 1PH: 115v,230v; 3PH: 230V,575V; DC: 32V,115V,230V This Sunny SU-L4 air-compressor pressure switch controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 125 psi. The switch have four 1/4" NPSF internal fluid connection. The adjustable cut-out range is 60-200 psi. The switch is diaphragm actuated and has a fixed differential. The threshold, or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections. The maintained manual cut-out lever has auto and off positions.
