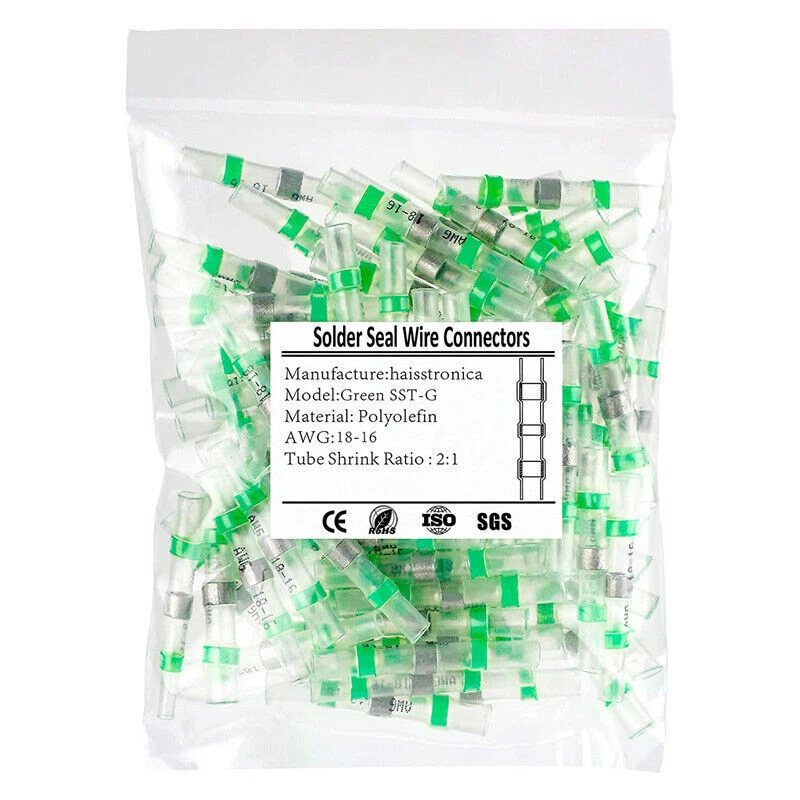

Heat Shrink Solder Seal Butt Connectors Insulated Wire Splice 1000-50X USA
$ 5.81
Description

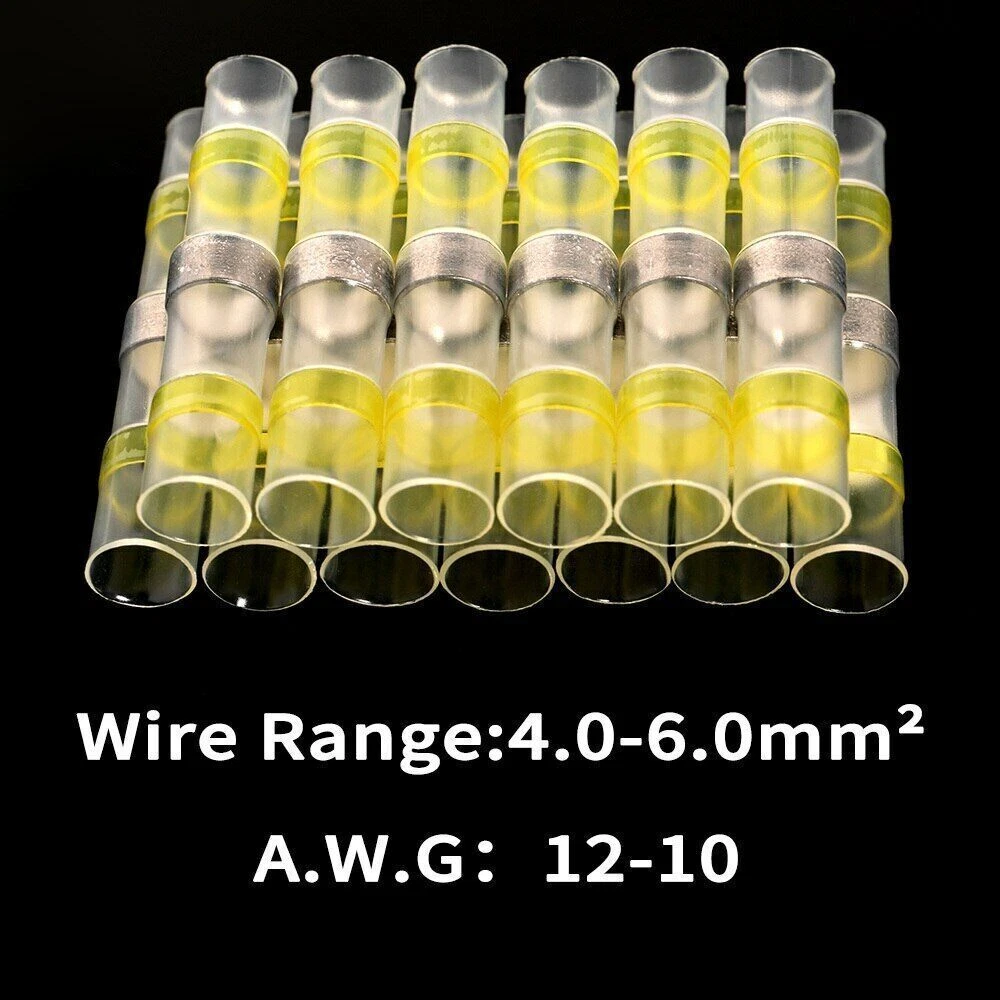

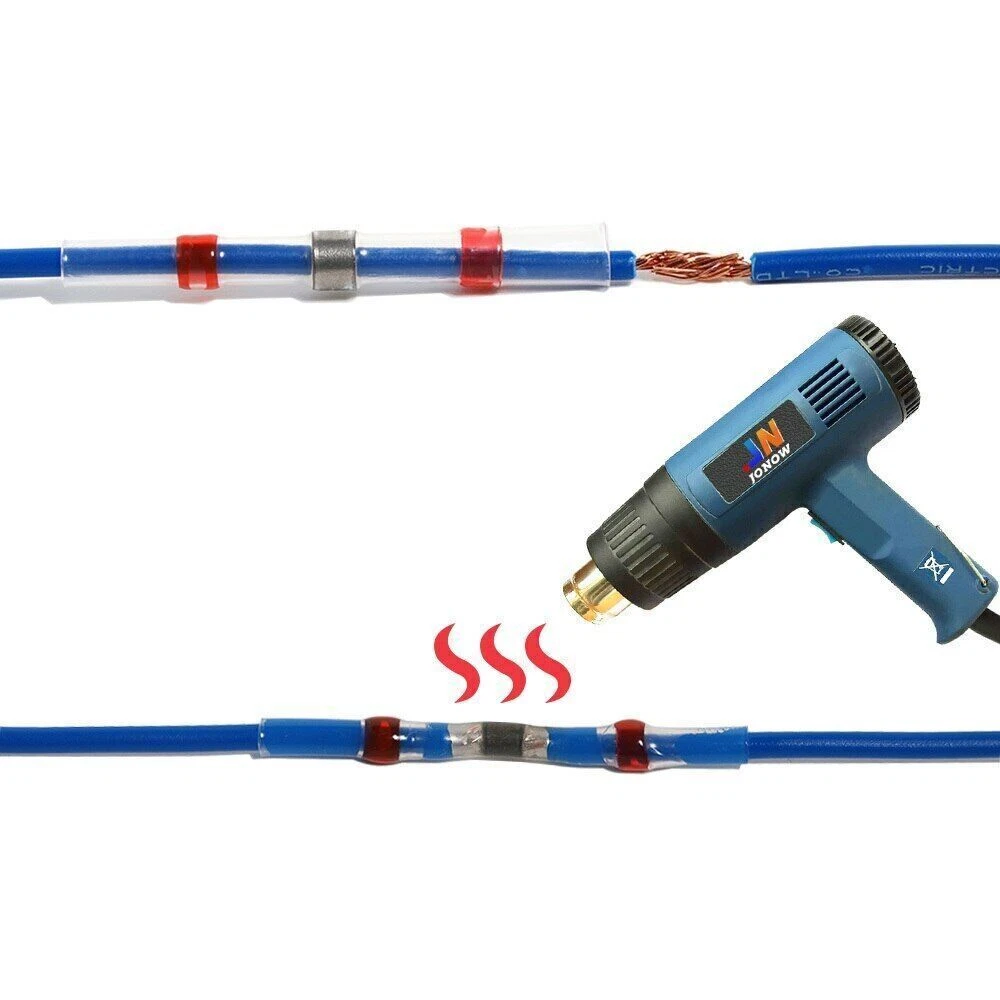

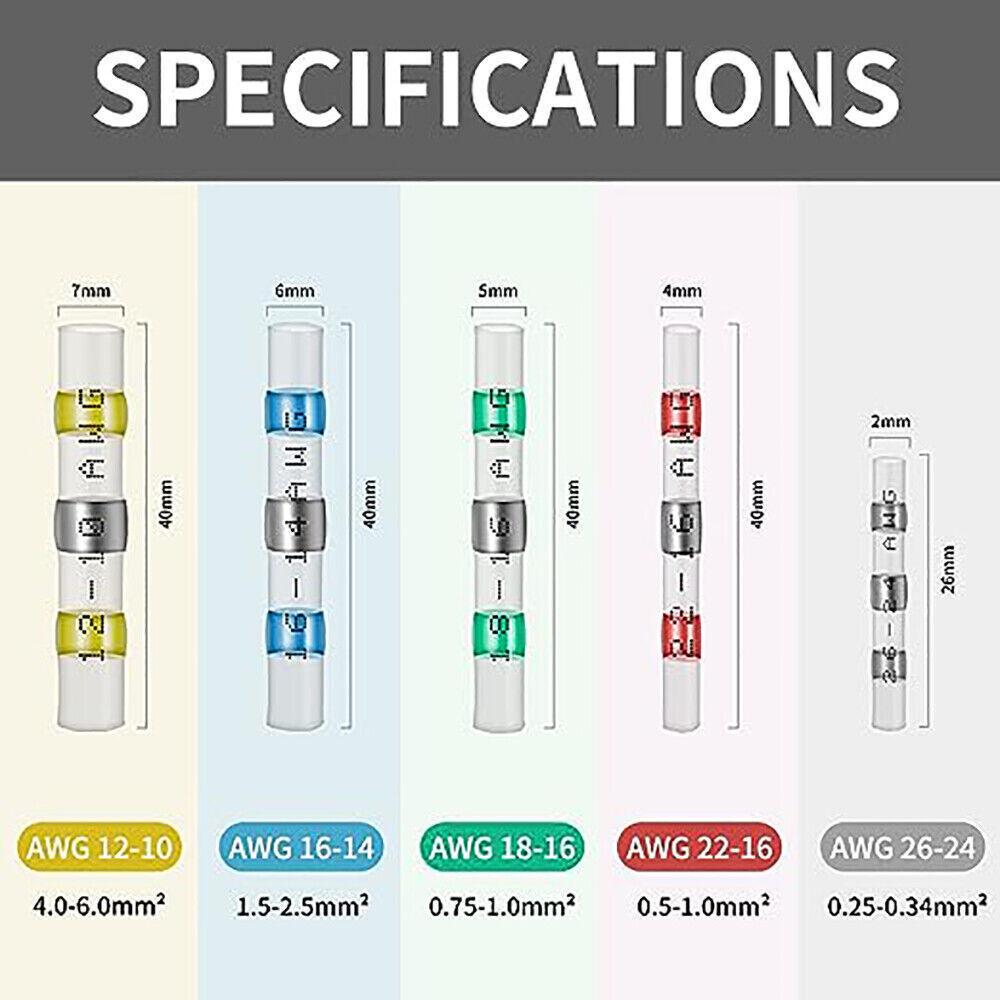

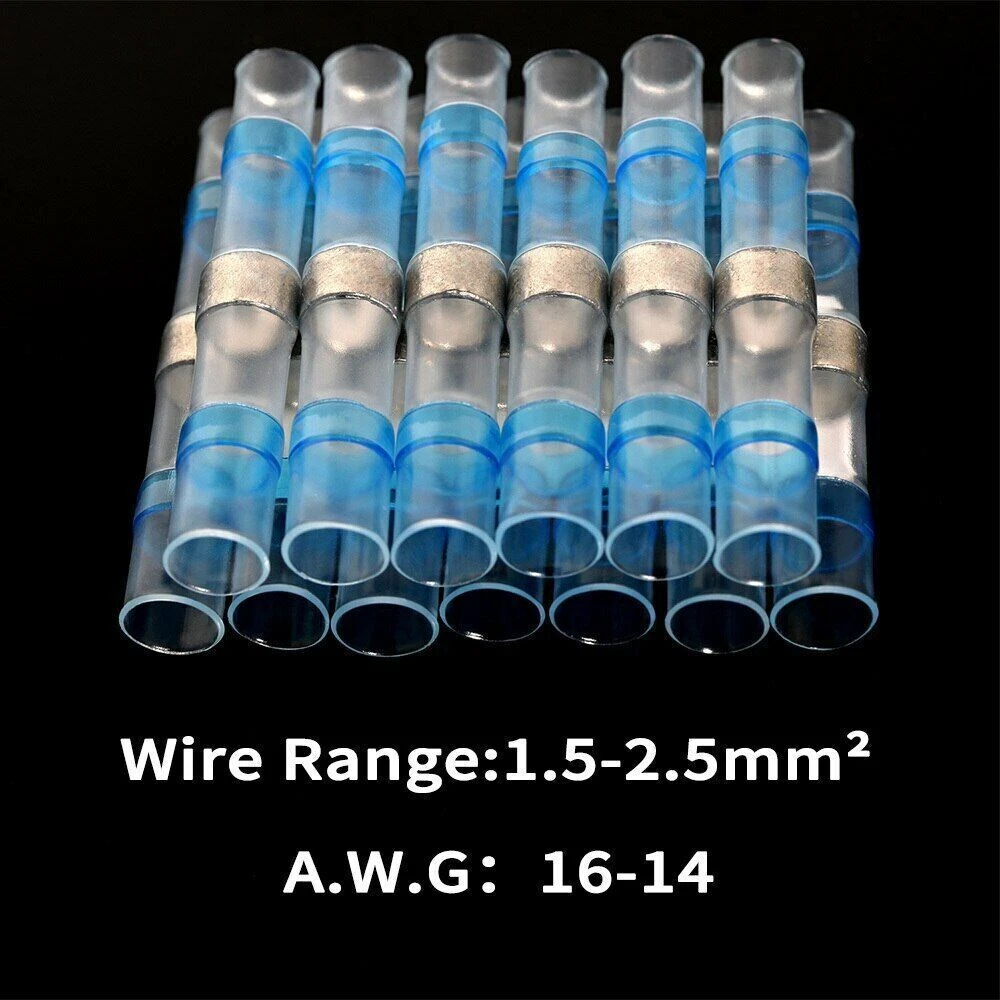

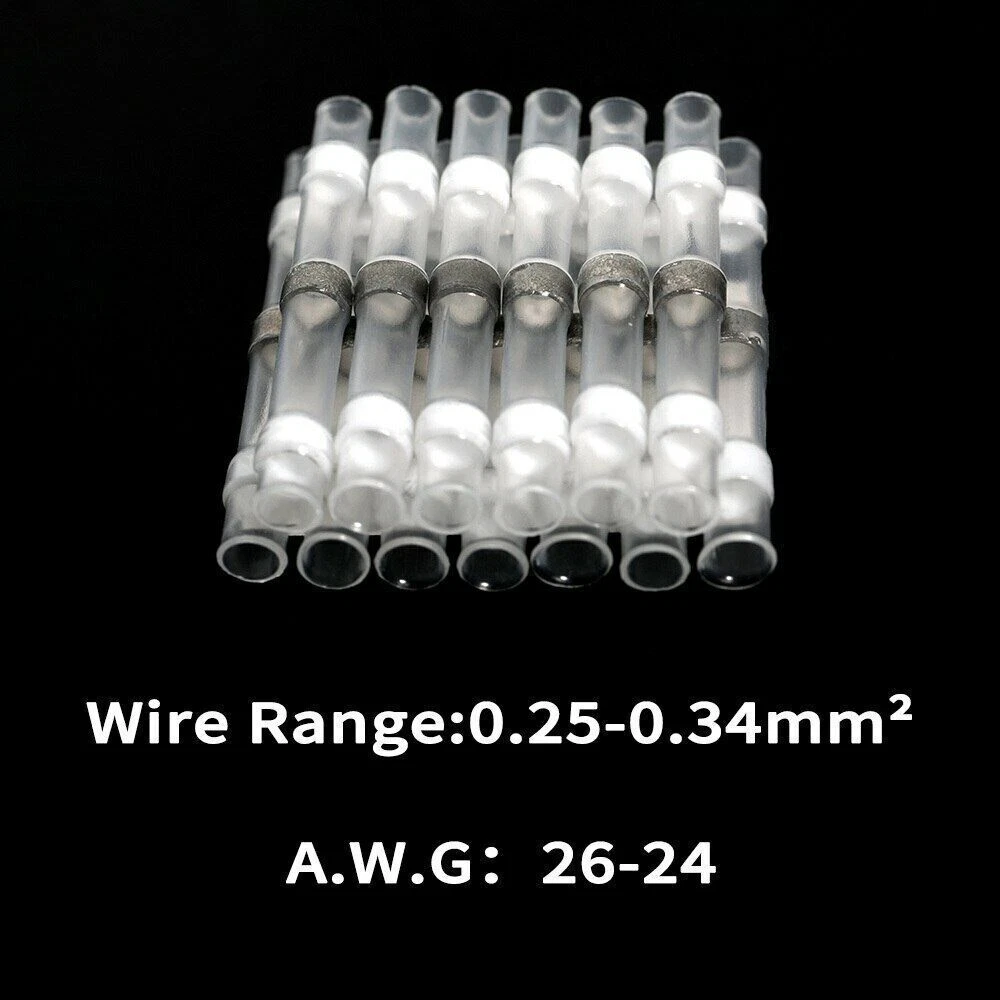

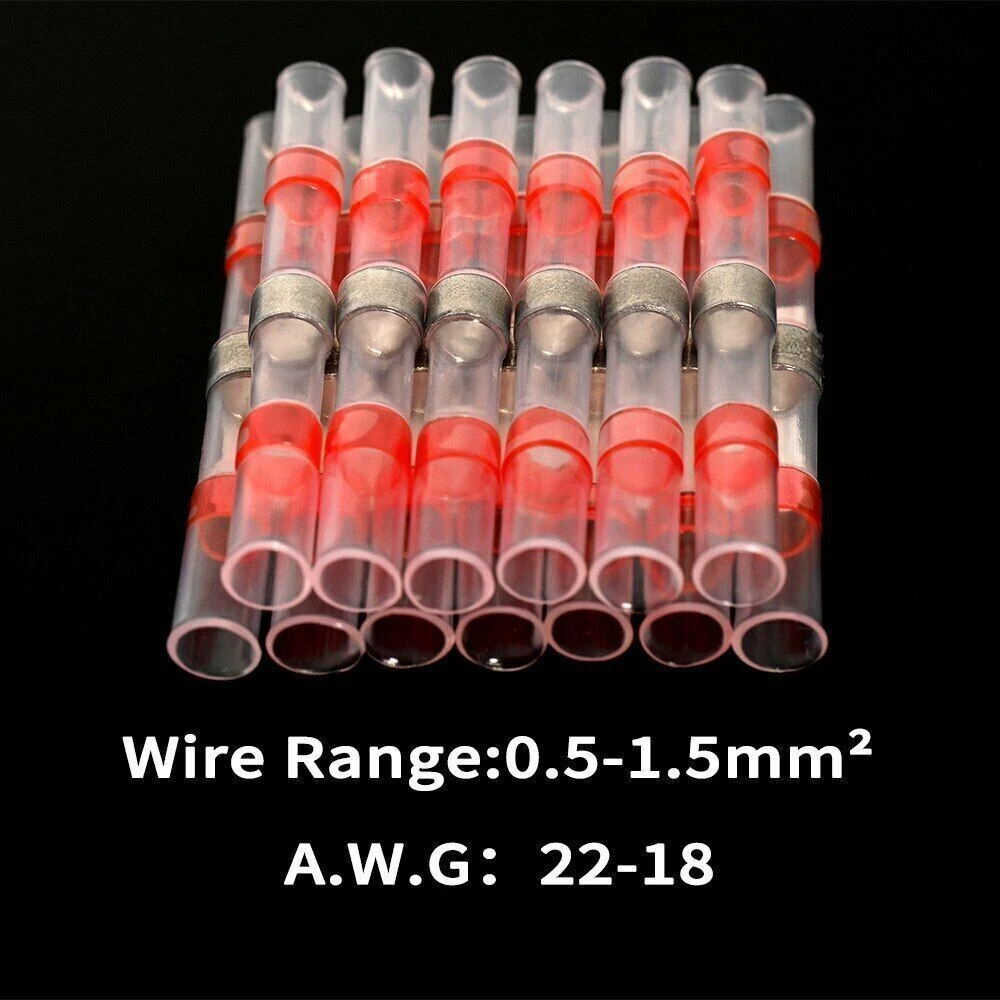

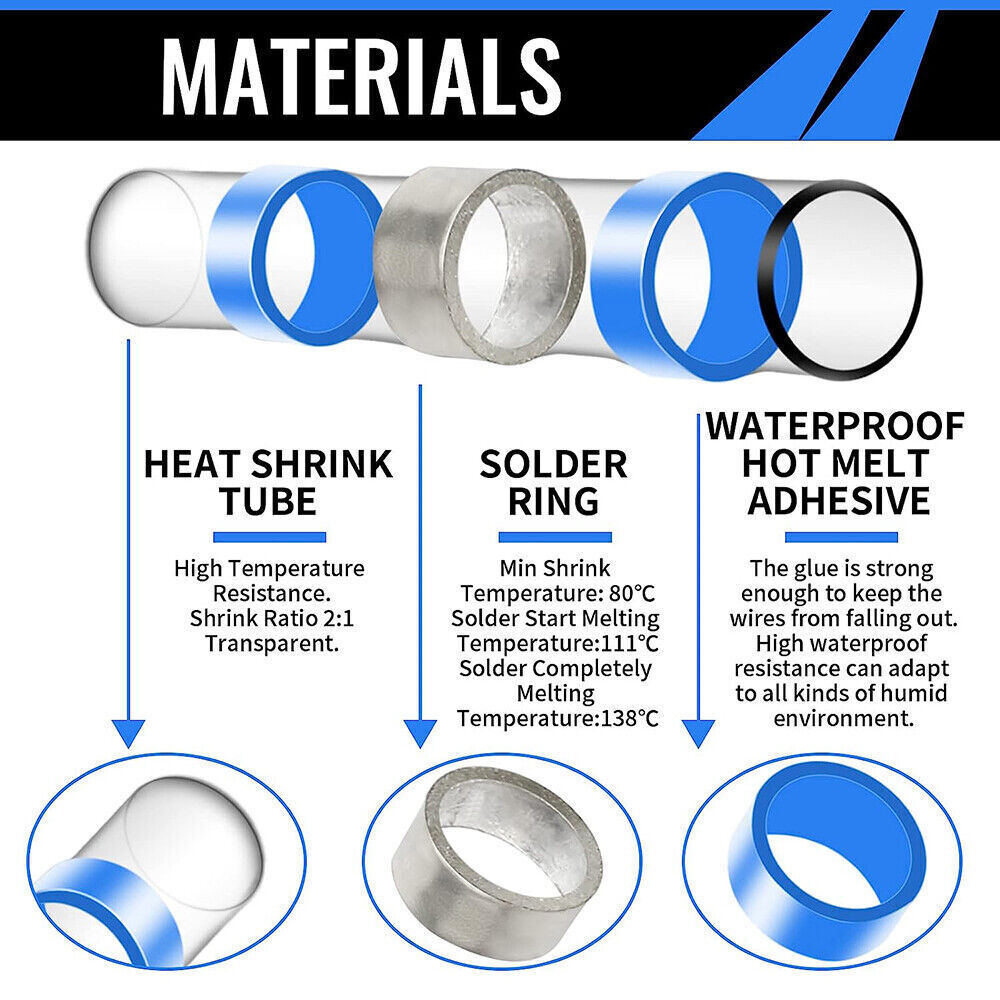

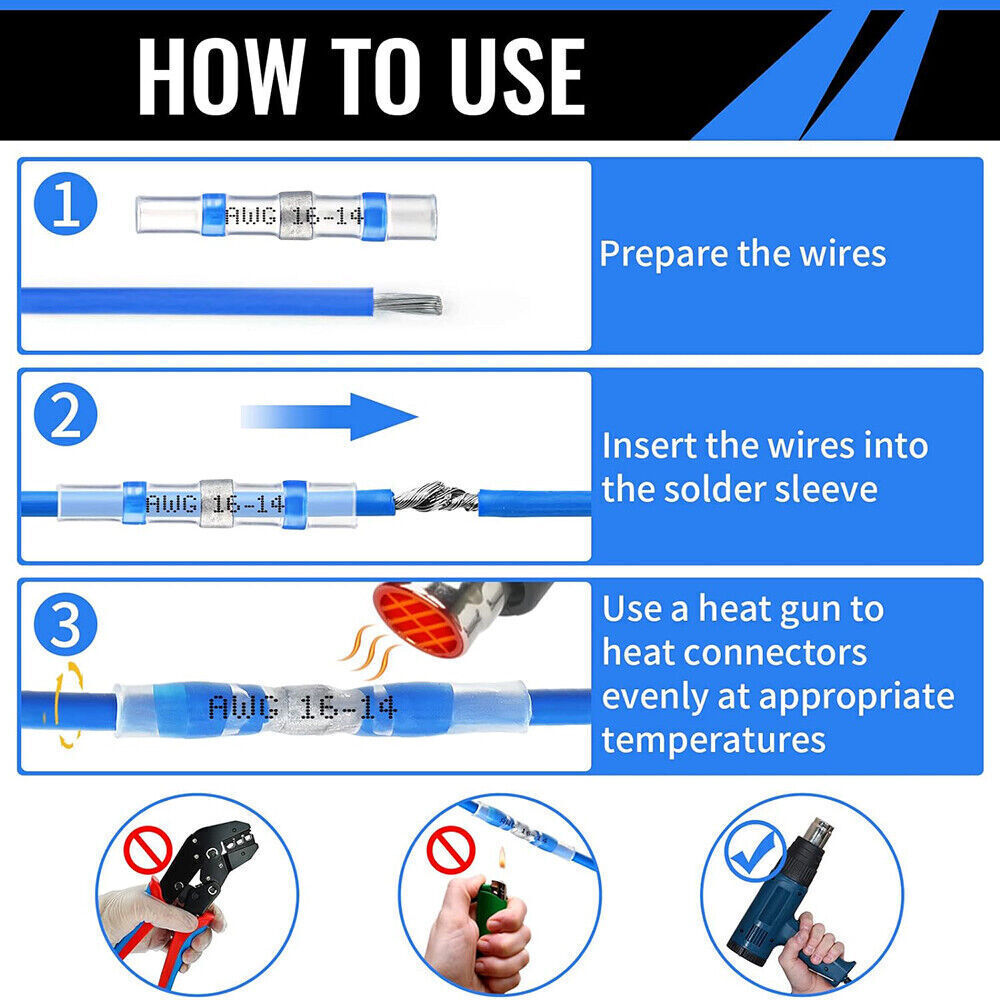

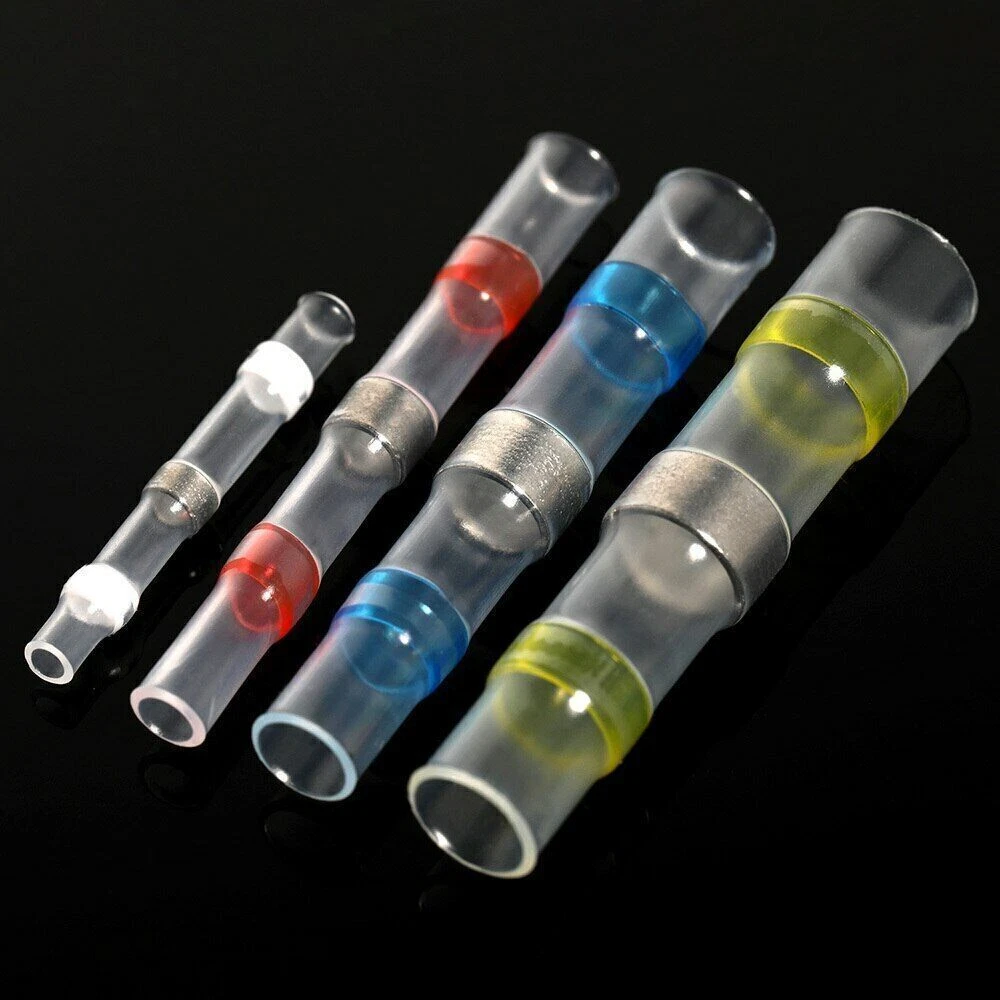

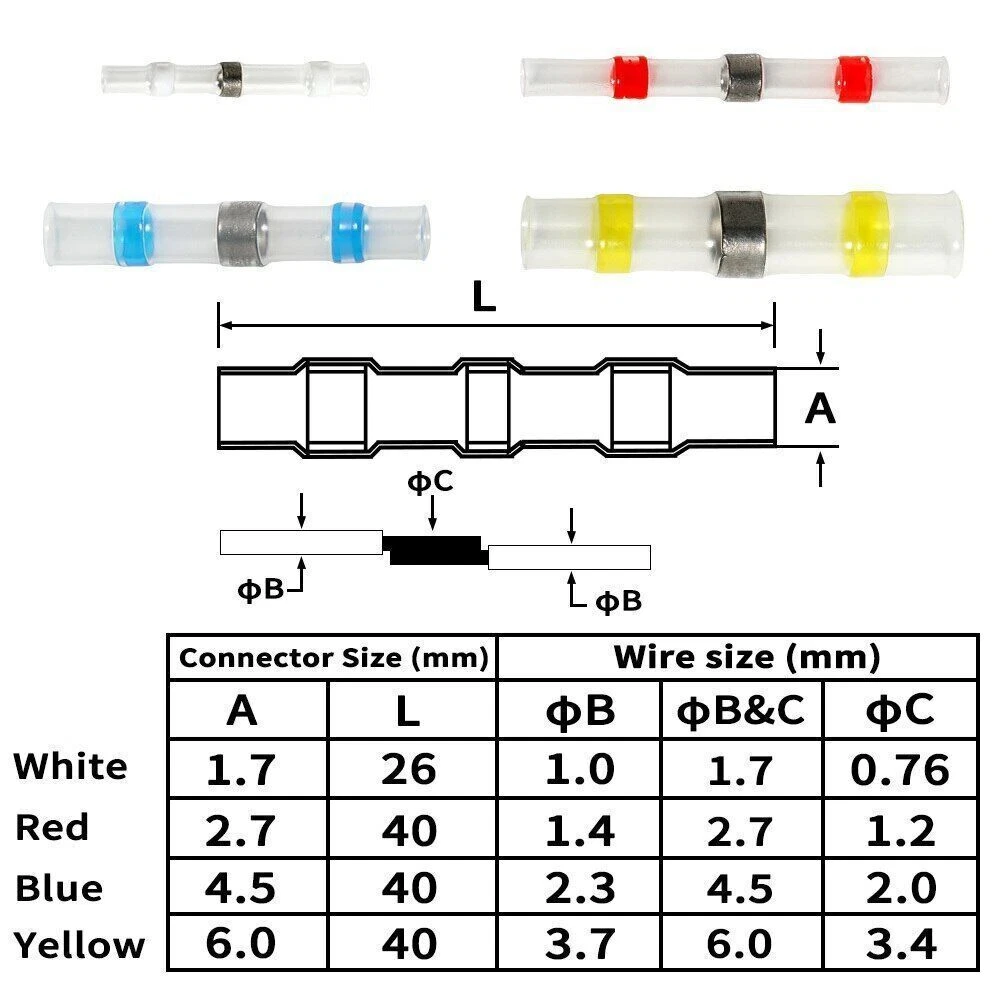

1000-50PCSSolder Seal Sleeve Heat Shrink Butt Wire Connectors Terminals Waterproof Features: An easy one step connection of wires, soldered, insulated and sealed Can be ideal use in marine and automobile applications Polyolefin tubing in outside and hot melt adhesive in inside Solder and seal and with advanced waterproof function Kuzavtye polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation. Specification: Material: PE + Tin Colors: Yellow,Blue,Green,Red,White Operating temperature: -55°c~125°c/-55°c~150°c Minimum shrink temperature: 60°c/125°c Starting temperature of solder melt: 138°c Temperature of fully solder melt: 160°c Type & Size: Yellow Connectors: diameter 6.0mm, cable cross-section 4.0-6.0 mm ² 12-10 AWG Blue Connectors: diameter 4.5mm, cable cross-section 1.5-2.5 mm² 16-14 AWG Green Connectors: diameter 3.5mm, cable cross-section 0.75-1.0 mm² 16-18 AWG Red Connectors: diameter 2.7mm, cable cross-section 0.5-1.0 mm² 22-18 AWG White Connectors: diameter 1.5mm, cable cross-section 0.25-0.34 mm² 26-24 AWG
