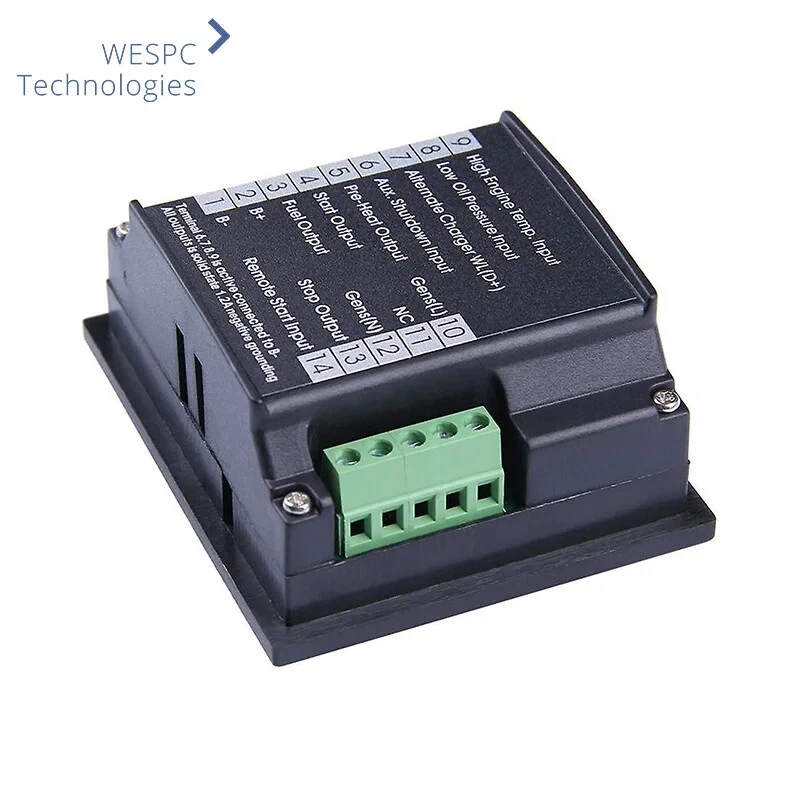

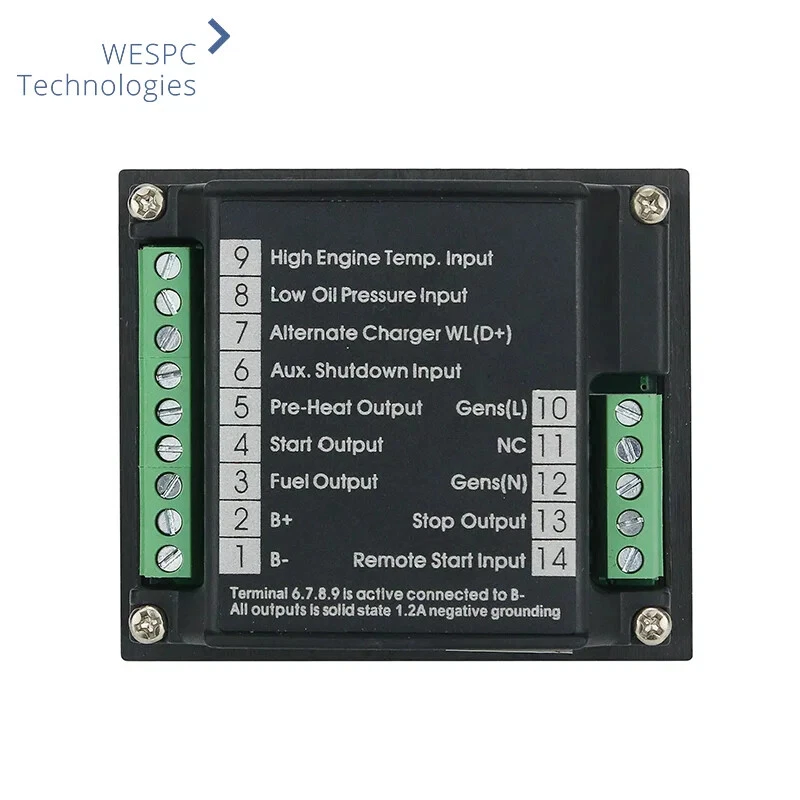

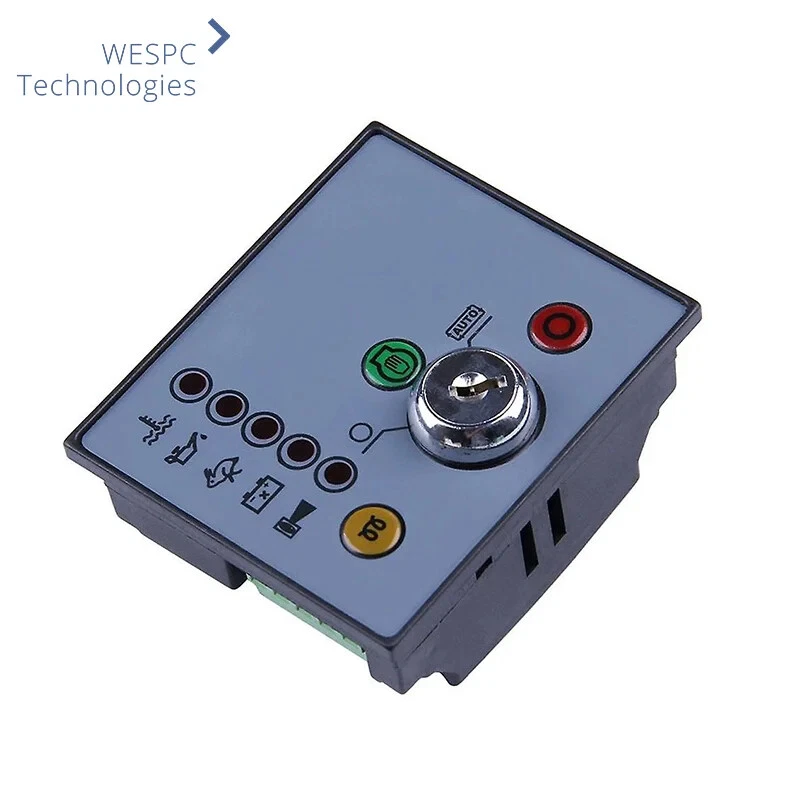

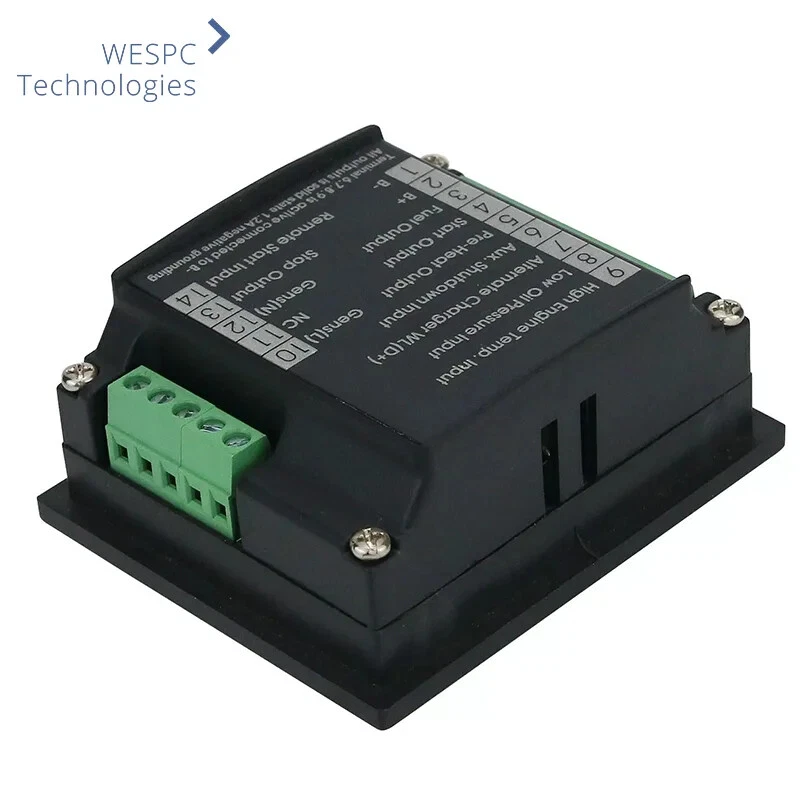

HGM170 Automatic Engine Control Module diesel power Genset generator controller
$ 43.95
Description
HGM170 Automatic Engine Control Module diesel power Genset generator controller Replace for Smartgen HGM170 Features: 1. Wide DC power input range 2. With low oil pressure, high water temperature/cylinder temperature, overspeed protection and indication 3. With charging failure warning indication, no shutdown 4. An additional external input alarm shutdown signal 5. The speed signal is taken from the generating frequency 6. LED displays various alarm states 7. With operating hour meter LCD display (HGM170HC) 8. Built-in frequency selection toggle switch (50/60Hz) 9. With fuel output, start output, preheat output, stop output function 10. Modular structure design, ABS plastic shell, embedded installation method, compact structure, small size, advanced single-chip control, stable performance and convenient operation Parameter: 1. DC power supply: 8～35V 2. Power generation input: AC15～306V(+20%) 50 or 60Hz can be selected 3. Overspeed threshold: 114% of rated frequency 4. Starter separation: generator voltage ≥15VAC and frequency ≥15Hz 5. Charging failure voltage: less than 3V 6.4 output ports: 1.2A (all transistor DC-output) 7.4 switch input ports: connect to B- effective 8. Hour meter: the maximum display time is 99999.9 hours 9. Working temperature: -30～+70℃ 10. Power consumption: (12V: 0.1W, 24V: 0.2W)
