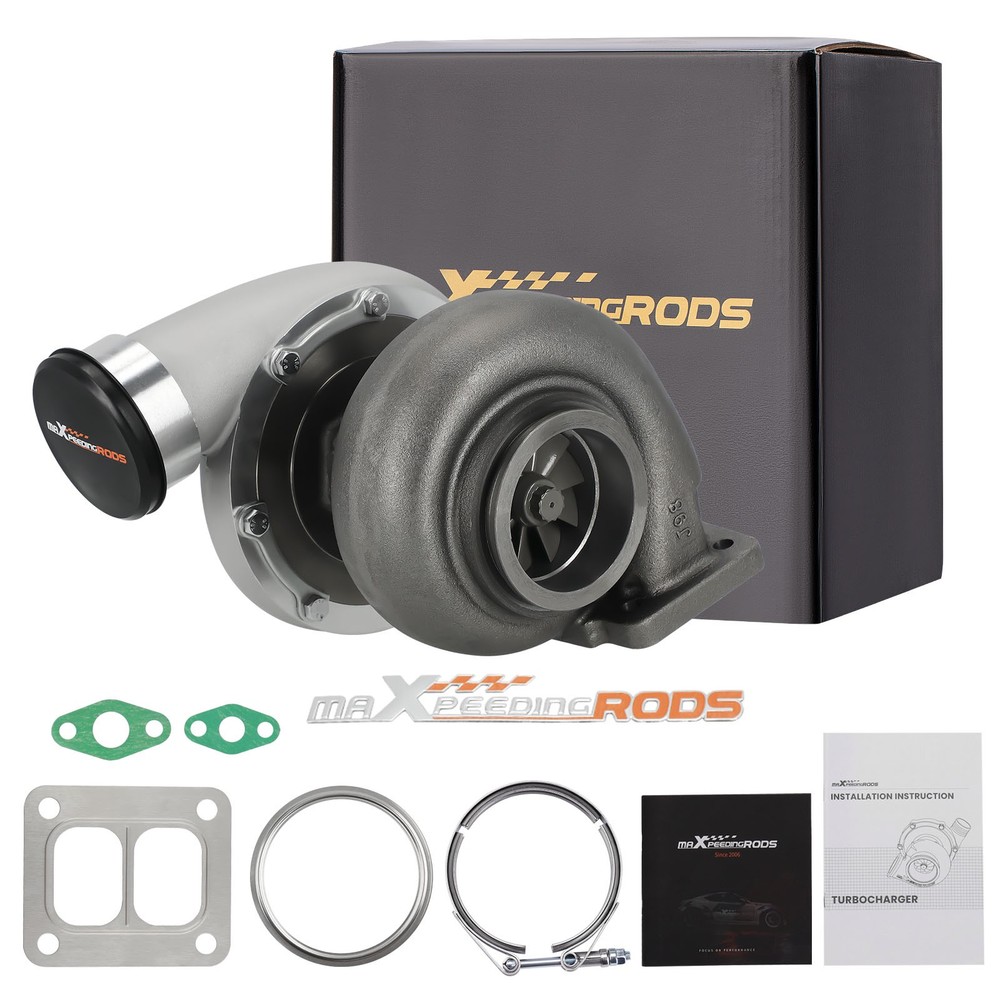

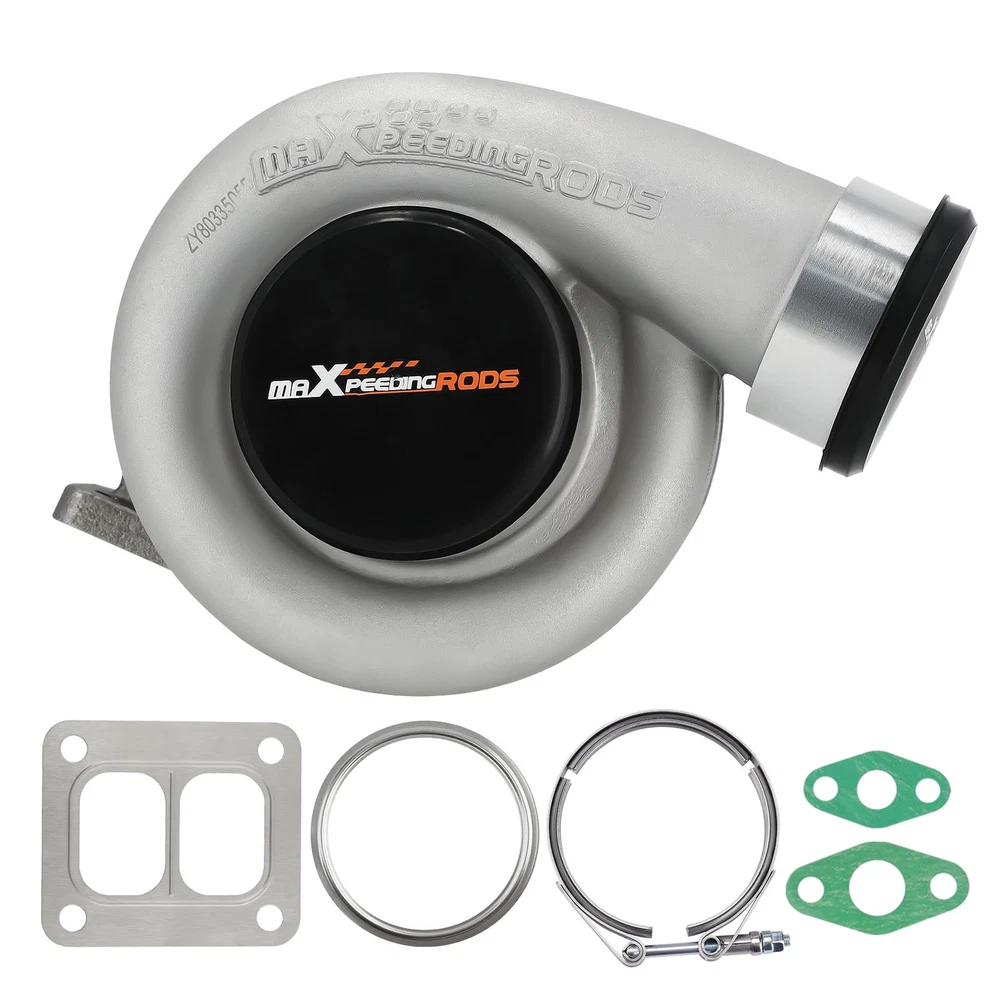

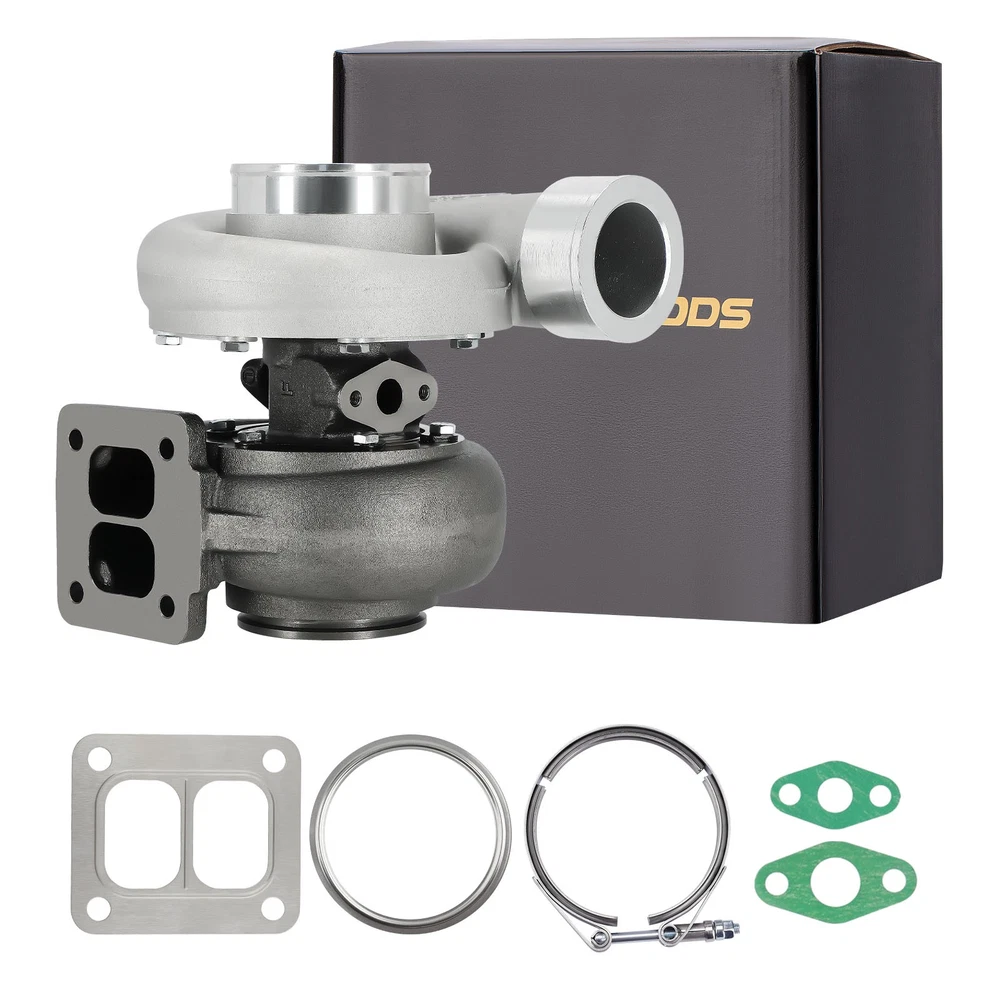

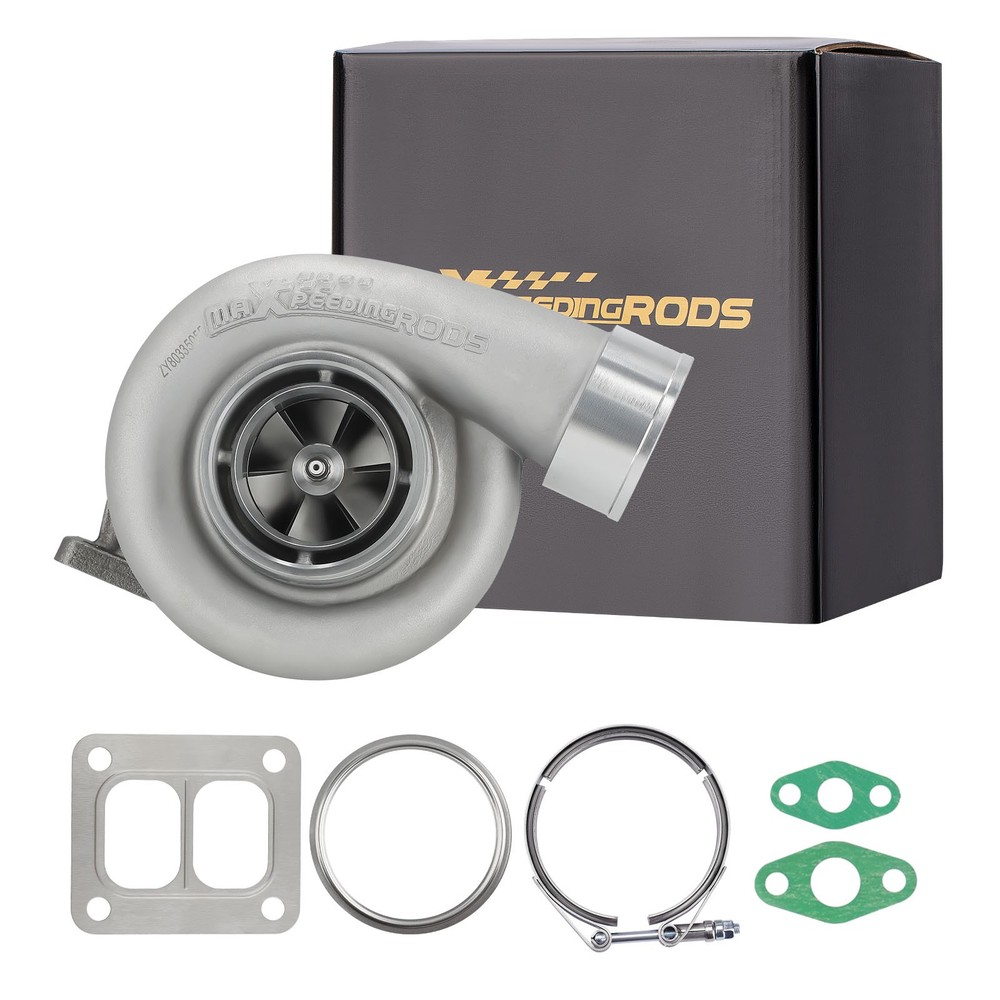

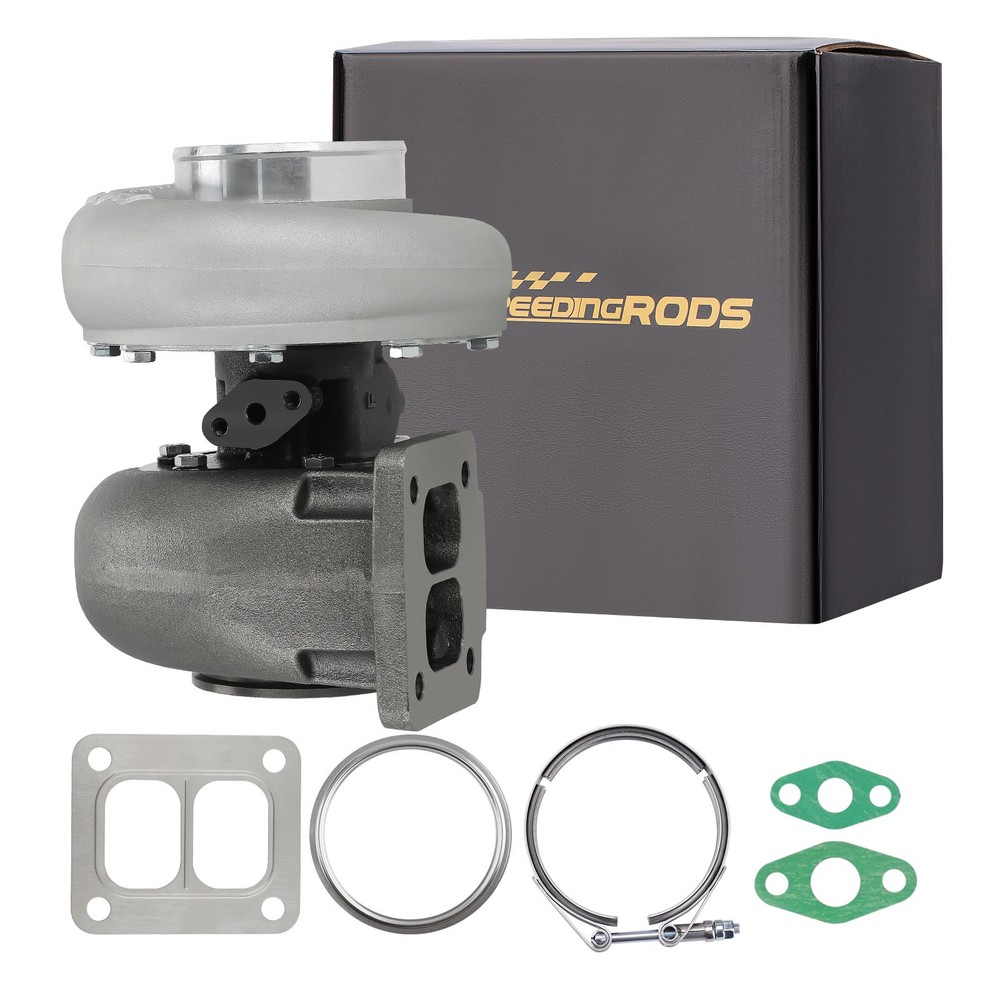

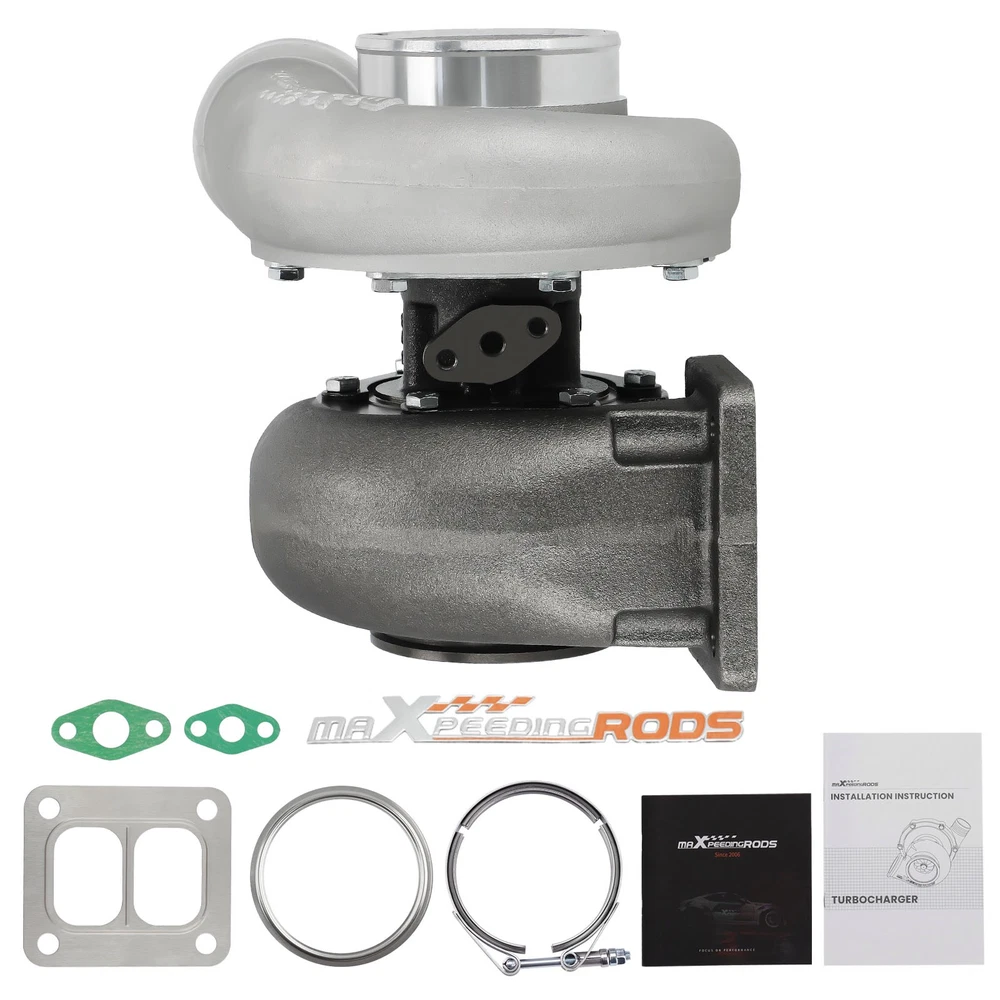

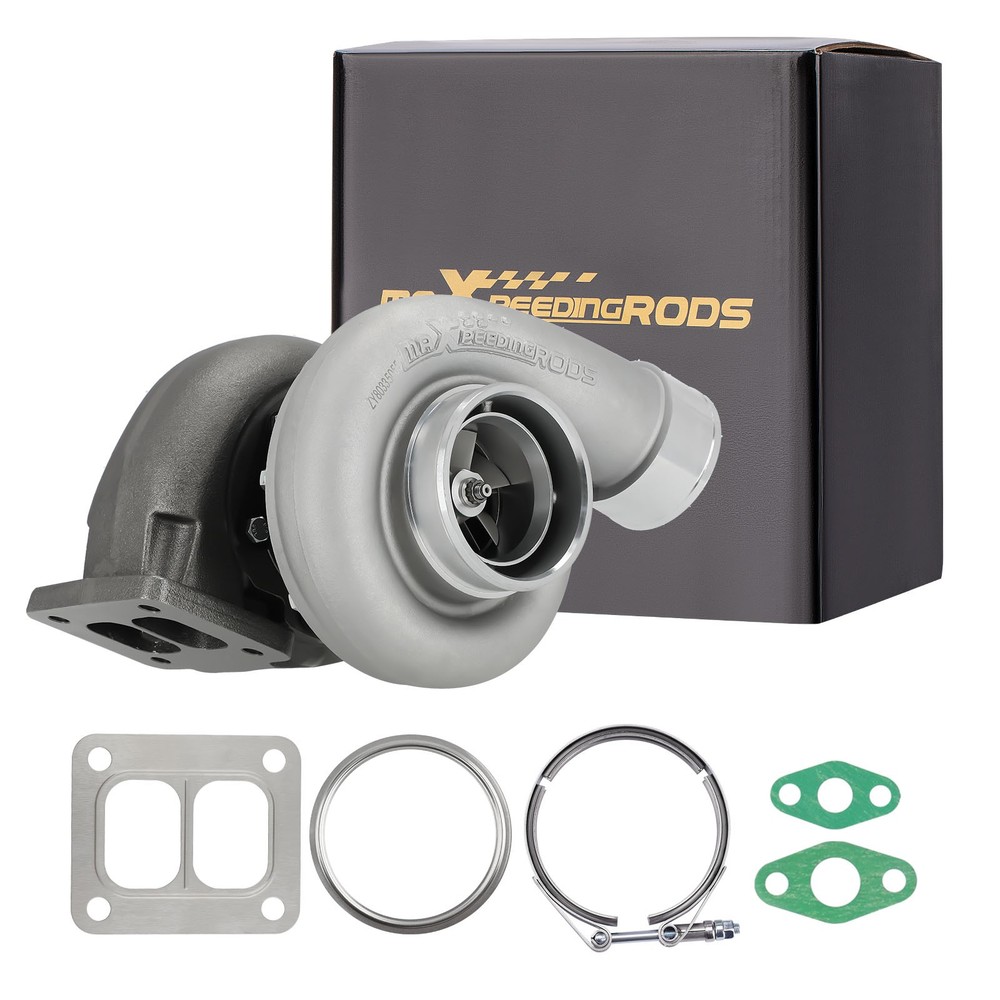

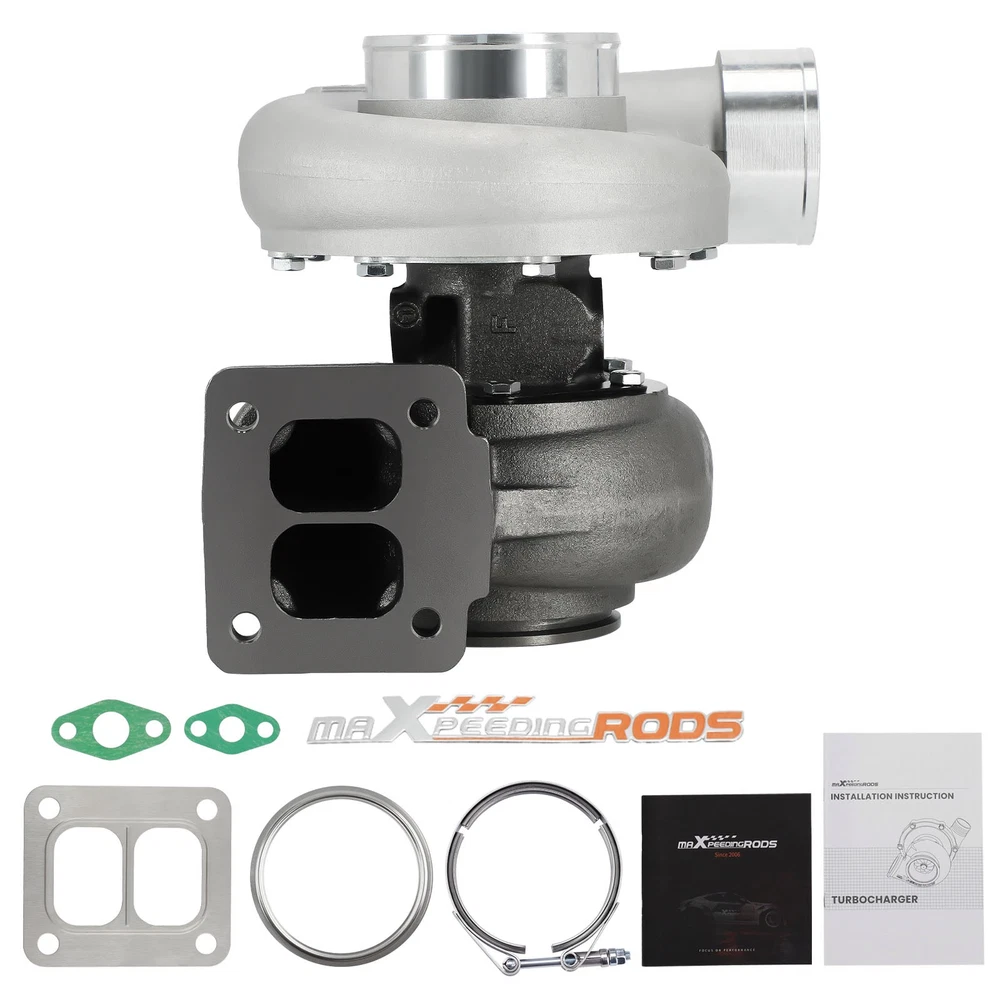

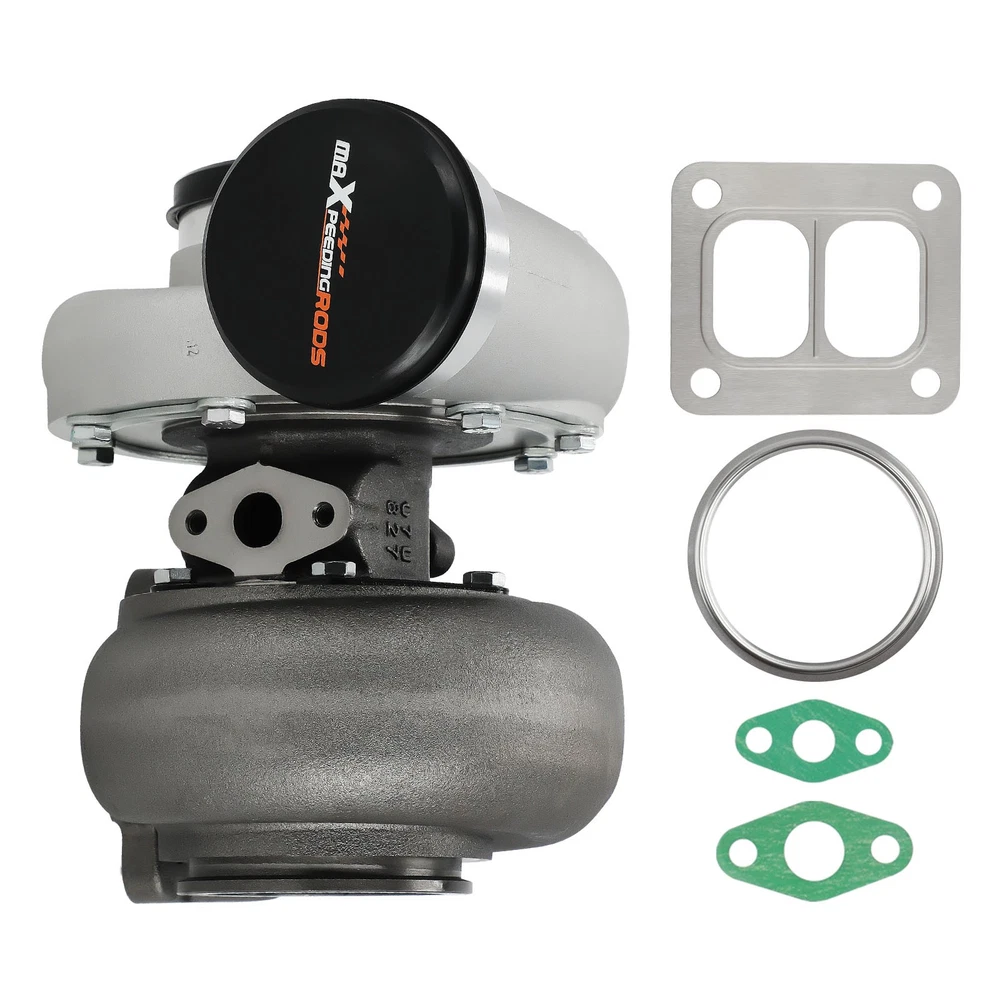

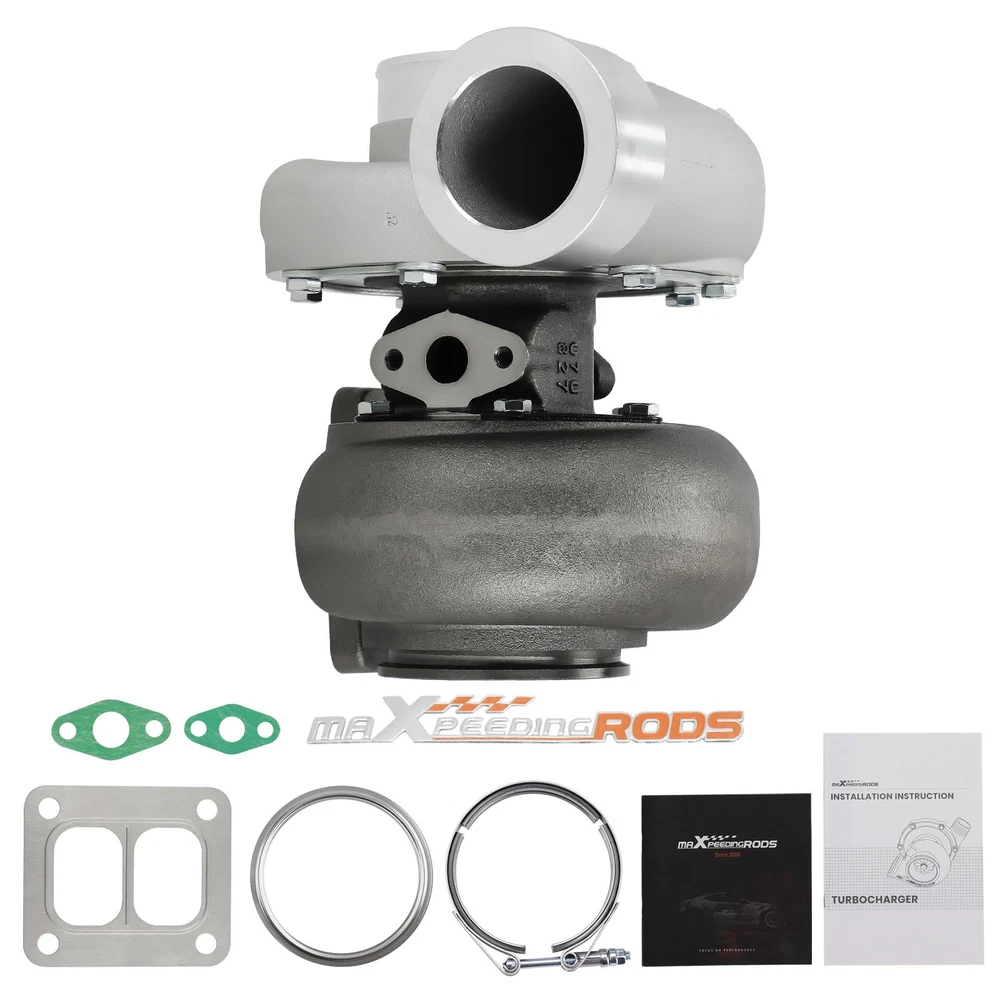

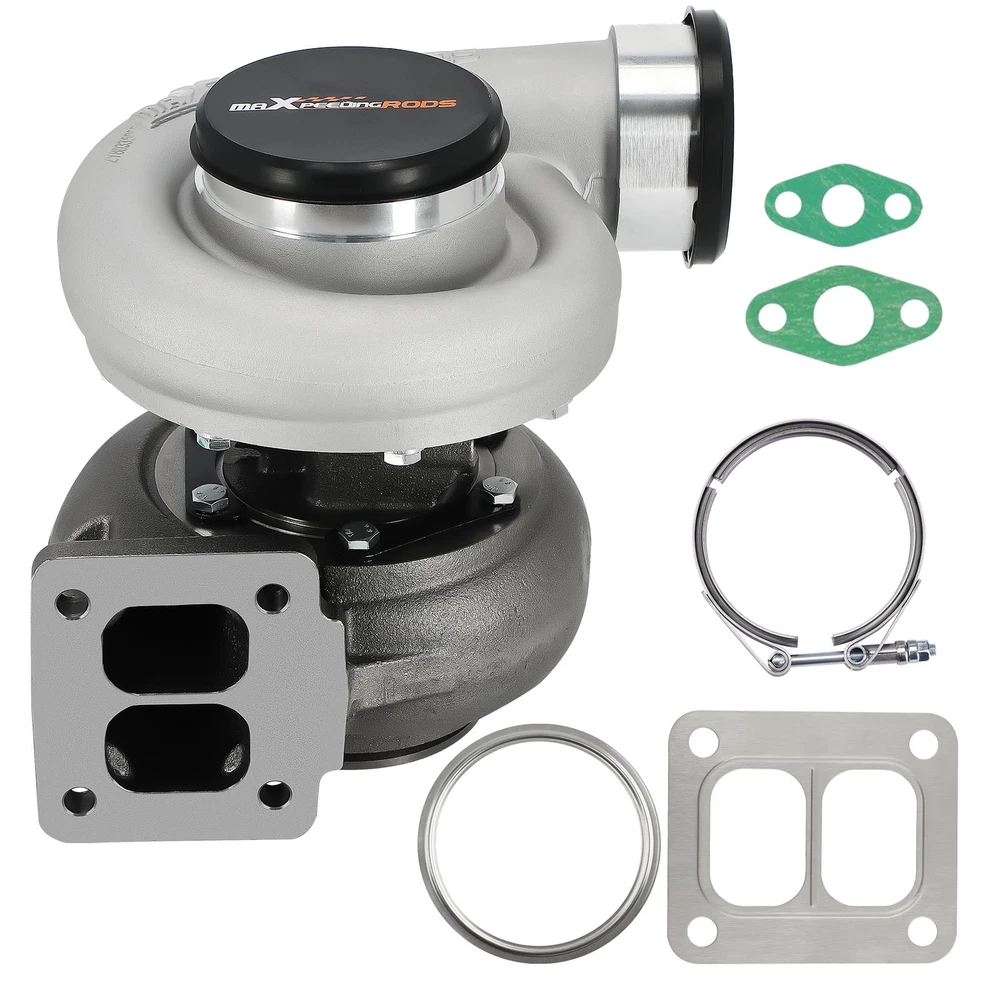

GT45 T4 Racing Turbocharger 1.05 A/R V-Band for 600+ HP Performance

$ 114.58

Exhaust Outlet Flange: 3.25 " Inlet Flange 4.25" Clamp V-Band California Prop 65 Warning: California Prop 65 Warning Turbine Trim: 77.6 Compressor Trim: 49.6 Turbine housing: Ductile iron QT450-10 Oil Inlet: M9 & 2*M8*1.25 Technology Advantage: balancing Test by TURBOTECHNICS  VSR3, G3-min-Flow VNT Turbo testing Universal Fitment: Yes Type: Turbocharger Weight: 17.4kg Horse Power: up to 600+ BHP Oil Outlet: M19 & 2*M8*1.25 Manufacturer Warranty: 2 Year UPC: Does not apply turbine wheel: K418 alloy, resistance  up  to 900℃ Finish: Matte Compressor A/R: 0.66 Compressor wheel: Cast aluminium blades Exhaust (Turbo Manifold) Flange: T4 Twin Scroll Flange Manufacturer Part Number: XRA206 Cooling Type: Oil Cooled OE/OEM Part Number: Turbo , Turbocharger ,Turbine , GT45 Turbo ,, Turbolader, Turbocompresor With gasket, Turbine, Universal Turbo, anti-surge, Twin Scroll, turbosuperchargers, turbocharger compressor wheel, GT45 T4 Flange Exhaust Inlet, V Band exhaust Outlet Turbine A/R: 1.05 Turbine Inducer Diamter /Exducer Diamter: 88 mm/77.5 mm Compressor Inducer Diamter/Exducer Diamter: 69 mm/98 mm Interchange Part Number: GT45 T4 V-BAND 1.05 A/R Color: Silver Bearing Type: Float Bearing gtin13: Does not apply Superseded Part Number: anti-surge, Twin Scroll Turbocharger Model: GT45 Application: Universal for all 3.0L-6.0L engine Brand: maXpeedingrods Features: Individual, Twin-Scroll

Description

Turbocharger GT45 Anti-surge Twin-Scroll T4 V-Band 1.05 A/R 98mm Turbo Application: This turbo is a universal application turbo, some modification may be required based on individual vehicle. Perfect for all 4.0L-6.0L engine Specification: Exhaust Inlet Flange: T4 Twin Scroll Flange Exhaust Outlet Flange: 3.25 " Inlet Flange 4.25" Clamp V-Band Bearing Type: Wet Float Cooling Type: Oil Cooled Oil Inlet: M9 & 2*M8*1.25 Oil Outlet: M19 & 2*M8*1.25 Wastegate: w/o Wastegate Hosepower: Up to 600+HP Turbo Type: Individual Universal Fitment: Yes Finish: Matte Condition: 100% Brand New Package Size:30x 30x 27 cm Package Weight: 16400g Compressor: Compressor Trim: 49.6 Compressor Inducer Diameter: 69 mm Compressor Exducer Diameter: 98 mm Compressor Air Inlet Size: 107mm Compressor Air outlet Size: 86.3mm Compressor A/R: 0.66 Turbine: Turbine Trim: 77.6 Turbine Inducer Diameter: 88 mm Turbine Exducer Diameter: 77.5 mm Turbine A/R: 1.05 Product Material: 1. Turbine housing : Ductile iron QT450-10 - temperature resistant up to 700℃ 2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃ 3. Compressor housing: ZL104 aluminum with lightweight 4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance Product ： 1. Cost-effective turbo increase 20-40% power for your car 2. Rich experience in turbo production and own factory 3. High-Speed oil seal ring and Precision clearance 4. Built for durability and strength * Technology Advantage: 1. 100% balancing Test by TURBOTECHNICS VSR3 2. G3-min-Flow VNT Turbo testing 3. Advanced Actuator Tester/Programmer NOTE： * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage. * Make sure the oil drain line is lower than the turbo itself. * Ensure exhaust outlet are well sealed by welding * Professional installation is highly recommended. * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order. * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)! MXR04FXJT

  1. Very high quality product , good shipping time. Thank you . Will use in the future !

    user24243511

  2. Fast shipping.part fit like is was supposed to.will recommend to other's

    kumar gtgd2b

  3. Product was exactly as advertised and worked properly .

    Kishimy1ad6a
