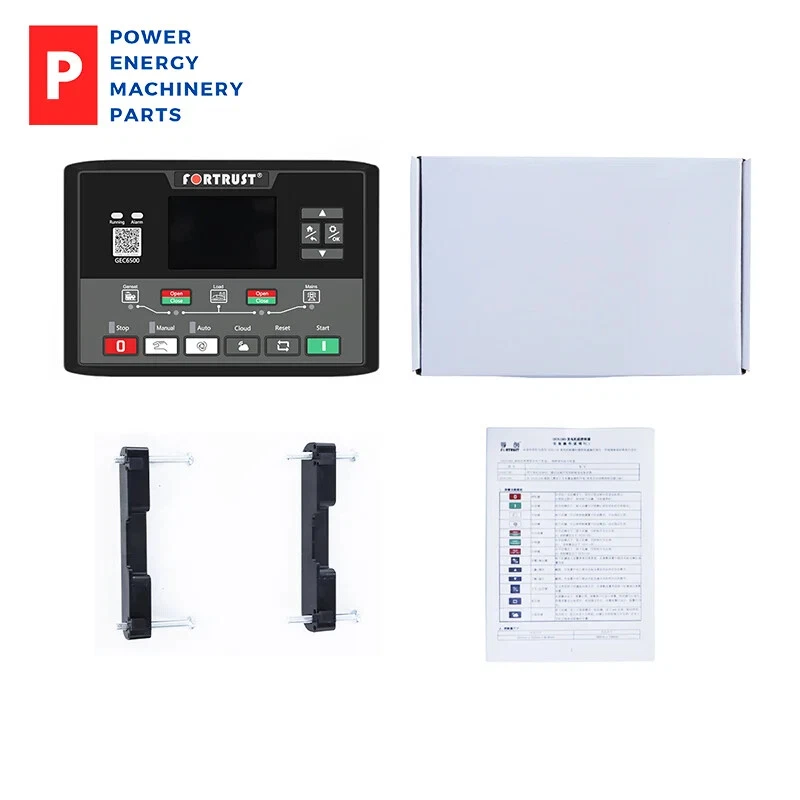

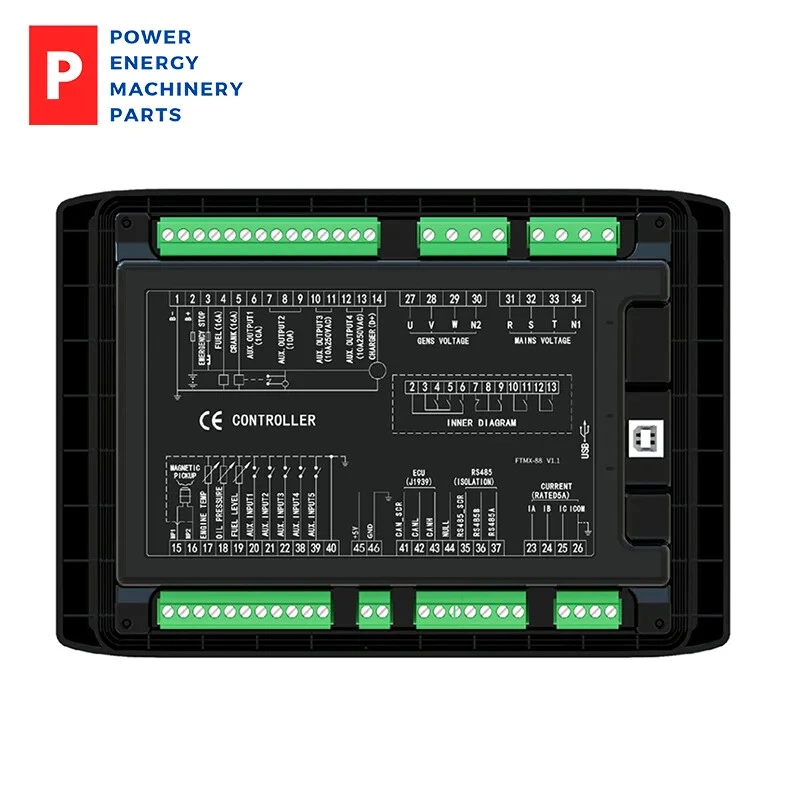

GEC6520-485 Original Automatic Switching Mains Failure Controller RS485 PEMP
$ 140.45
Description
GEC6520-485 Original Automatic Switching Mains Failure Controller RS485 Control Module Panel Working voltage: DC 8V-35V continuous power supply Overall power consumption: <3W (≤2W in standby) Alternator voltage input: Three-phase four-wire: 15VAC-360VAC (ph-N) Single-phase two-wire 15VAC-360VAC (ph-N) Two-phase three-wire 15VAC-360VAC (ph-N) Alternator frequency: 50Hz/60Hz Speed sensor voltage: 1.0V to 24V (effective value) Speed sensor frequency: maximum 10000Hz Starting relay output: 16Amp DC28V DC power supply output Fuel relay output: 16Amp DC28V DC power supply output Programmable relay output 1-4: 10Amp DC30V DC power supply output 10Amp DC30V passive output/250VAC passive output 10Amp DC30V passive output/250VAC passive output 10Amp DC30V passive output/250VAC passive output Operation panel size: 197mmx152mm x51mm Recommended hole size: 184mm x138mm (Module size 183mm x137mm) Current transformer secondary current: Rated: 5A Working conditions: temperature (-25~70)℃ humidity (20~90)% Storage conditions: temperature (-30~+80)℃ Protection level: IP55 (when installed between the controller and control panel Waterproof rubber ring) IP42 (when there is no When installing a waterproof rubber ring) Dielectric strength: Object: Between input/output/power supply Reference standard: IEC688-1992 Test method: AC1.5KV/1min leakage current 3mA
