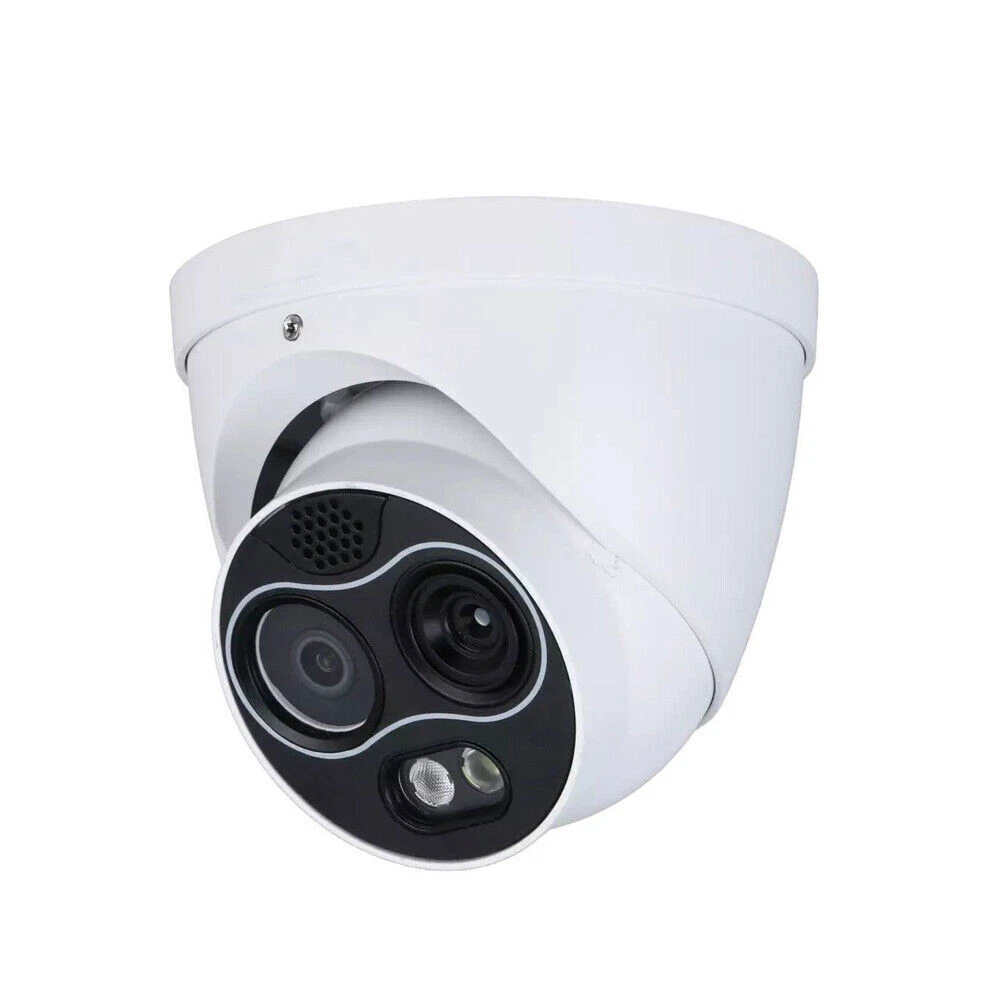

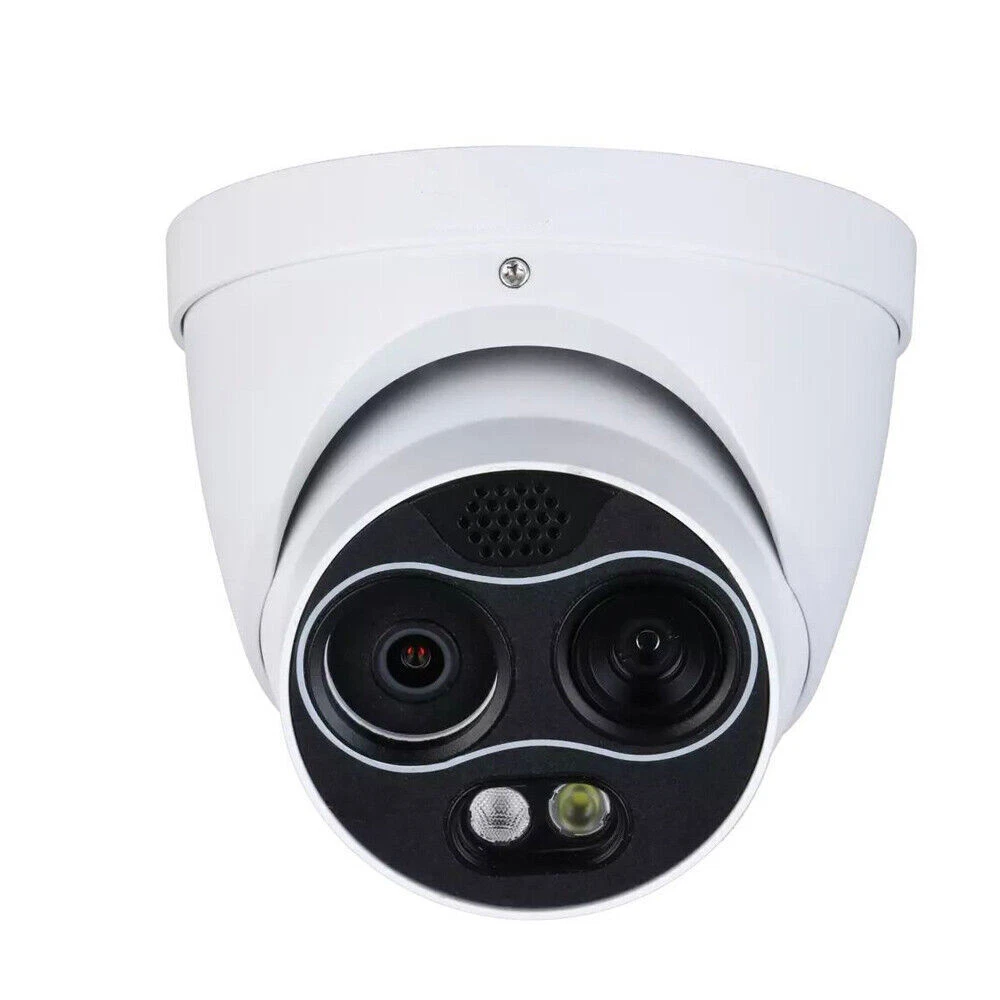

Dahua 4MP Thermal Mini Hybrid Camera TPC-DF1241-B2F2-DW-S8 AI call detect Dome

Description

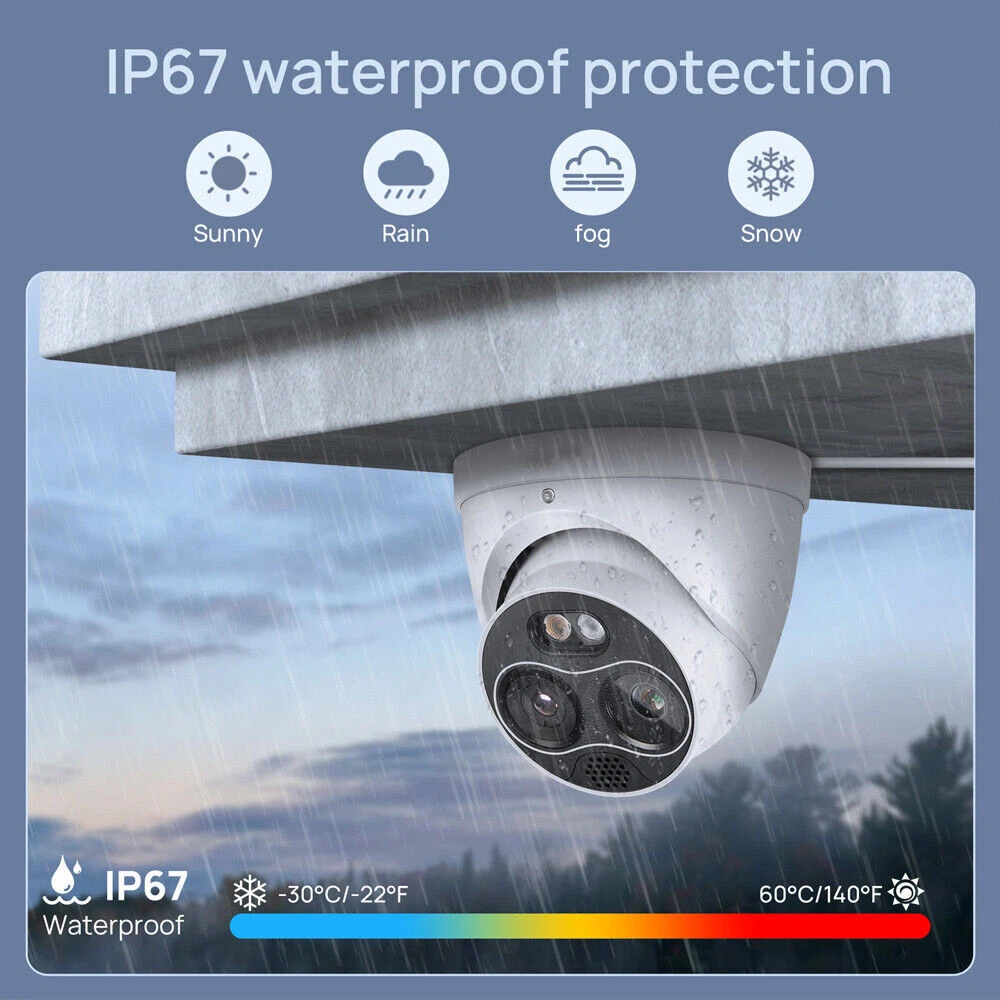

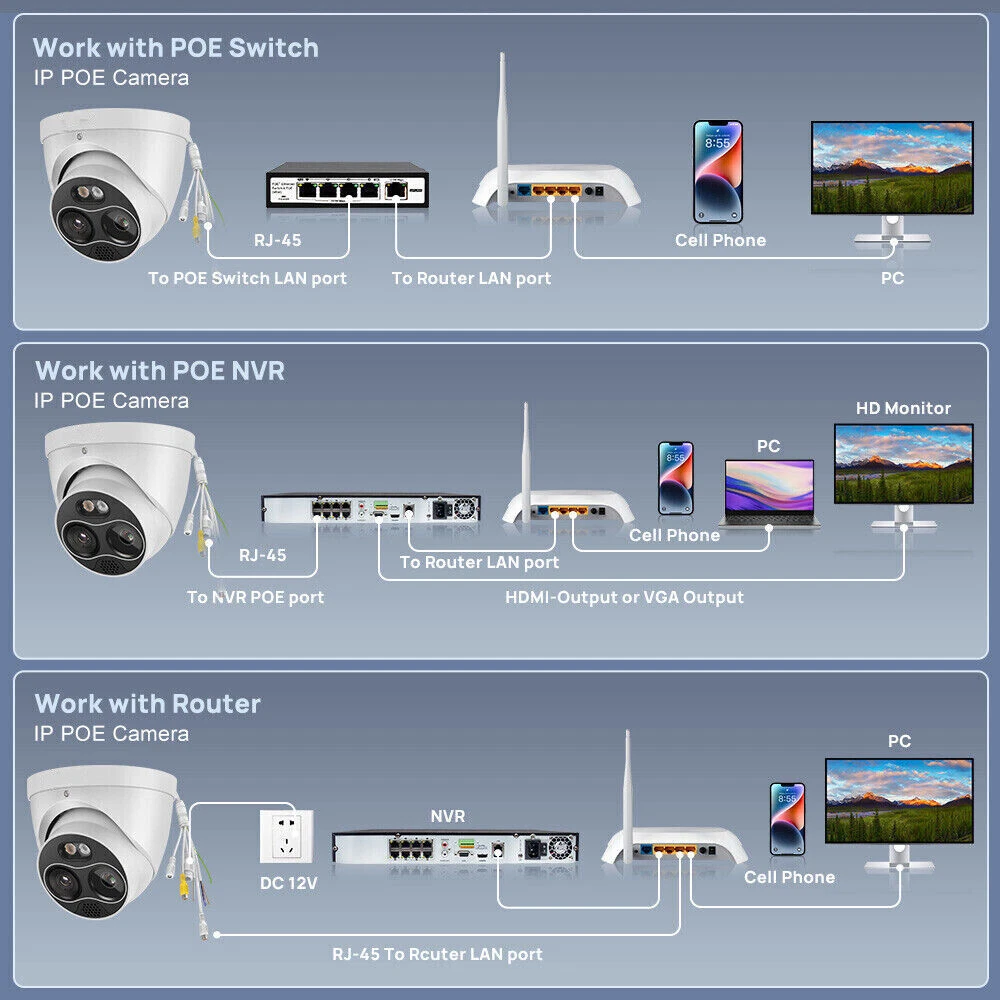

Product Description Thermal Network Mini Hybrid Eyeball Camera > Vanadium oxide uncooled focal plane detector. > 4Megapixel progressive scan CMOS. > AI functions: heat detection, tripwire, human/vehicle classification, smoking detection, and call detection. > Built-in white light and audio alarm. > Remote auxiliary management. > Dual image fusion (visible and thermal channels). > Wide input voltage 12 VDC ± 20%, and PoE. > IP67 rated. Thermal Detector Type Vanadium oxide uncooled focal plane detector Max. Resolution 256 (H) × 192 (V) Pixel Pitch 12 μm Spectral Range 8 μm–14 μm Thermal Sensitivity (NETD) < 40 mK ( f/1.0, 25 Hz, 300 K) Field of View 2 mm: H: 87.8°; V: 63.8° 3.5 mm: H: 50.6°; V: 37.8° 7 mm: H: 24°; V: 18° Close Focus Distance 2mm : 0.3 m (0.98 ft) 3.5 mm: 0.5 m (1.64 ft) 7 mm: 1 m (3.28 ft) Detection Distance ① 2 mm: Vehicle: 256 m (839.90 ft); Human: 83 m (272.31 ft) 3.5 mm: Vehicle: 449 m (1,473.10 ft); Human: 146 m (479.00 ft) 7 mm: Vehicle: 897 m (2,942.91 ft); Human: 292 m (958.01 ft) Recognition Distance ② 2 mm: Vehicle: 63 m (206.69 ft); Human: 21 m (68.90 ft) 3.5 mm: Vehicle: 110 m (360.89 ft); Human: 38 m (124.67 ft) 7 mm: Vehicle: 220 m (721.78 ft); Human: 75 m (246.06 ft) Identification Distance ③ 2 mm: Vehicle: 32 m (104.99 ft); Human: 11 m (36.09 ft) 3.5 mm: Vehicle: 56 m (183.73 ft); Human: 19 m (62.34 ft) 7 mm: Vehicle: 111 m (364.17 ft); Human: 38 m (124.67 ft) Note: ①Detection Distance: Detects objects, but cannot recognize their characteristics (objects must cover more than 3.6 pixels of the image). ②Recognition Distance: Classifies objects into general categories, such as human, vehicle (the object must cover more than 14 pixels of the image). ③Identification Distance: Classifies objects into specific categories based on their characteristics, such as engineering truck, car (the object must cover more than 28 pixels of the image). Aperture F1.0 Digital Detail Enhancement (DDE) Yes Digital Zoom 16 levels AGC Auto; Manual Noise Reduction 2D NR; 3D NR Image Flip 180° Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) Fusion Mode 3 (Warm color; Cool color; Ironred) Visible Image Sensor 1/2.7'' CMOS Max. Resolution 2336 (H) × 1752 (V) Pixel 4 MP Electronic Shutter Speed 1/30,000 s–1 s Min. Illumination Color: 0.05 lux Black & white: 0.005 lux 0 lux (IR on) IR Illumination Distance 30 m (98.43 ft) IR Illuminator On/Off Control Auto; Manual Aperture 2 mm: F2.2 4 mm: F1.6 8 mm: F2.0 Field of View 2 mm: H: 94°; V: 72° 4 mm: H: 71.2°; V: 52° 8 mm: H: 33.4°; V: 25° Focus Control Fixed Close Focus Distance 2 mm: 0.3 m (0.98 ft) 4 mm: 1 m (3.28 ft) 8 mm: 2.5 m (8.2 ft) Day/Night Auto (ICR); Color; B/W BLC Yes WDR DWDR HLC Yes White Balance Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural AGC Auto; Manual Noise Reduction 2D NR; 3D NR S/N Ratio ≥55 dB Region of Interest (RoI) Yes Image Flip 180° Exposure Compensation Yes Intelligence General Intelligence Tripwire; Intrusion Advanced Intelligence Heat Detection & Alarm Cold & Hot Spot Trace Human & Vehicle Classification Smoking Detection Call Detection Video and Audio Video Compression H.265; H.264; H.264H; MJPEG Resolution Thermal: Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default) Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default)Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default) Frame Rate Thermal 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default Audio Compression G.711a; G.711mu; PCM Network Protocol HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP Edge Storage Micro SD card (256 G) Interoperability ONVIF; CGI; DaHua SDK Browser IE: IE 8 and later Google: 42 and earlier Firefox: 42 and earlier User/Host 10 Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access Port Network 1 × RJ-45 (10/100 Base-T) Audio Input 1 Audio Output 1 Alarm Input 2 Alarm Output 2 RS-485 1 pair Power Power Supply 12 VDC , 1.2 A ± 20%; PoE Power Consumption Basic: <3 W (12 VDC, LED off); 3.5 W (PoE) Max: <7W (12 VDC, LED on, heater on); 9 W (PoE) Environment Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F) Storage Temperature –30 °C to +70 °C (–22 °F to ﹢158 °F) Operating Humidity ≤95% Protection IP67 Structure Product Dimensions 122 mm × 122 mm × 112 mm (4.80" × 4.80" × 4.41") (L × W × H) Packaging Dimensions 155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31") (L × W × H) Net Weight ≤0.85 kg (1.87 lb) Gross Weight ≤1 kg (2.20 lb) Heat Detection Distance Focal Length Max. Distance 2 mm 25 m (82.02 ft) 3.5 mm 45 m (147.64 ft) 7 mm 86 m (282.15 ft) Note: The table displays the measured distances obtained from using the target size 0.2 m × 0.2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. Perimeter Protection Distance Focal Length Distance (Human) Distance (Vehicle) 2 mm 14 m (45.93 ft) 42 m (137.80 ft) 3.5 mm 24.5 m (80.38ft) 72.5 m (237.86 ft) 7 mm 49 m (160.76 ft) 146.5 m (480.64 ft) Note: The table displays the measured distances obtained from using the target sizes 1.8 m × 0.5 m (human) and 1.4 m × 4 m (vehicle) for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. Shipping & Handling: Warranty & Return Policy: Feedback & About Us: About Customs duty/Tax: 1. Item will be shipped out within 5 business days after the payment. Please check and make sure your address is correct before payment. (In order to make sure you can receive the items successfully, please provide your phone number as well.) 2. The items will be shipped via Post Office Airmail. It usually takes around 2 to 3 weeks to United Stated, United Kingdom, Australia, Canada and some European countries. But for other countries, it may need 4-6 weeks to deliver the parcel. It may take longer time if there is abnormal weather condition or customs control issue. Please kindly contact us for refund or assistance if the item doesn’t receive during the time. (If you want a faster service, please contact us before your bidding or purchase.) 3. Please contact us for further assistance if you don't receive the item on time. (Before opening up any "Item not received" dispute/claim, please contact us for a full refund if you don't get the package 35 days after your cleared payment.) 1. All items will be tested or checked carefully and packaged in good condition before sending out to you. Some faulty items might happen especially after overseas transportation. We offer a replacement warranty within 30 days from the date of receipt. 2. You will be responsible for the returning shipping cost, and we will ship the replacement at our cost after receiving the returned item. Please contact us for details before sending the item back to us. Replacement or refund will be issued after the items are received by us. 1. We will automatically leave you a positive feedback after receiving your payment. 2. Your positive feedback is highly appreciated and very important to us. 3. If anything found less satisfactory, please kindly contact us for assistance first. We promise we will provide prompt and satisfactory solution to you. Your 100 satisfaction is our greatest goal here. 4. Every email / message will be responded within 24 hours. If no response within 24 hours, please kindly resend the message / email. Sometimes it might get filtered as a spam or our office is closed for weekends and public holidays. 1. Import duties, taxes and fees are not included in the commodity price or freight, these fees are collected by your country's customs. Buyers need to pay import duties themselves, which is also eBay's regulations. 2. Please check with the customs of your country/region before purchasing to determine these additional customs fees. Shipping & Handling: 1. Item will be shipped out within 5 business days after the payment. Please check and make sure your address is correct before payment. (In order to make sure you can receive the items successfully, please provide your phone number as well.) 2. The items will be shipped via Post Office Airmail. It usually takes around 2 to 3 weeks to United Stated, United Kingdom, Australia, Canada and some European countries. But for other countries, it may need 4-6 weeks to deliver the parcel. It may take longer time if there is abnormal weather condition or customs control issue. Please kindly contact us for refund or assistance if the item doesn’t receive during the time. (If you want a faster service, please contact us before your bidding or purchase.) 3. Please contact us for further assistance if you don't receive the item on time. (Before opening up any "Item not received" dispute/claim, please contact us for a full refund if you don't get the package 35 days after your cleared payment.) Warranty & Return Policy: 1. All items will be tested or checked carefully and packaged in good condition before sending out to you. Some faulty items might happen especially after overseas transportation. We offer a replacement warranty within 30 days from the date of receipt. 2. You will be responsible for the returning shipping cost, and we will ship the replacement at our cost after receiving the returned item. Please contact us for details before sending the item back to us. Replacement or refund will be issued after the items are received by us. Feedback & About Us: 1. We will automatically leave you a positive feedback after receiving your payment. 2. Your positive feedback is highly appreciated and very important to us. 3. If anything found less satisfactory, please kindly contact us for assistance first. We promise we will provide prompt and satisfactory solution to you. Your 100 satisfaction is our greatest goal here. 4. Every email / message will be responded within 24 hours. If no response within 24 hours, please kindly resend the message / email. Sometimes it might get filtered as a spam or our office is closed for weekends and public holidays. About Customs duty/Tax: 1. Import duties, taxes and fees are not included in the commodity price or freight, these fees are collected by your country's customs. Buyers need to pay import duties themselves, which is also eBay's regulations. 2. Please check with the customs of your country/region before purchasing to determine these additional customs fees. You may also like Hikvision DS-2CD2387G2P-LSU/SL 8MP ColorVu Panoramic IP Camera 2-Way Audio Black 209.0 USD Free shipping Hikvisiion DS-2SF8C442MXG-ELW/26(F0) TandemVu 4MP 42X DarkFighter Dome Camera 2203.0 USD Free shipping Dahua IPC-HFW2441T-ZS 4MP Starlight 5x Zoom WizSense IP Bullet Camera PoE SMD+ 38.0 USD Free shipping Hikvision AcuSense 8MP 4K Outdoor Bullet IP Camera 2.8mm PoE DS-2CD2086G2-I NEW 165.0 USD Free shipping HIKVISION DS-2CD2043G2-IU 2.8/4/6mm 4MP PoE Bullet IP Camera +Mic audio Outdoor 27.0 USD Free shipping Dahua IPC-HFW2449TL-S-PV 4MP Full-Color IR WizSense IP Camera POE Smart-Light 29.0 USD Free shipping Hikvision 8MP 4k IP Camera ColorVu Dome Smart-Hybrid-Light DS-2CD2187G2H-LISU 209.0 USD Free shipping Hikvision DS-2DE3A404IWG-E 4MP DarkFighter 4X Zoom PTZ Camera Audio Visual Alarm 219.0 USD Free shipping NEW ! DAHUA Brand Original 4MP IPC-HDBW2431F-AS-S2 MIC Dome IP Camera 2.8MM 92.0 USD Free shipping Hikvision Compatible Panoramic 4MP IP Camera POE Dual lens Full Color IR Light 68.0 USD Free shipping Dahua 4K 8MP 180° Panoramic Dual-Lens TiOC2.0 IP Camera IPC-PFW3849S-A180-AS-PV 220.0 USD Free shipping NEW Dahua PFB205W-E Wall Mount Bracket for IPC-HDW2841T-S IPC-HDW2441T-S Camera 89.0 USD Free shipping Dahua IPC-HDBW2431R-ZAS-S2 4MP 5X ZOOM Starlight IP Camera IR Dome Audio Alarm 124.0 USD Free shipping Dahua IPC-HFW3849T1-AS-PV-S5 8MP Full-Color 2-Way Audio SMD4.0 TiOC3 PoE Camera 205.0 USD Free shipping Dahua 8MP 5x Zoom IP Camera Dual Light Full-color+IR MIC SMD+ IPC-HDW2849T-ZS-IL 175.0 USD Free shipping DaHua IPC-HDW2449TM-S-IL 4MP HD PoE IP Camera Dual Light Audio IR IP67 MIC Color 96.0 USD Free shipping Hikvision 8MP ColorVu Smart-light 2-Way Audio PoE IP Camera DS-2CD2087G2H-LIU/SL 52.0 USD Free shipping Dahua IPC-HFW2449T-ZAS-IL 4MP Color 5x Zoom WizSense IP Camera POE Smart-Light 185.0 USD Free shipping Dahua 4K 8MP OEM IPC-HDW2849T-S-IL Dual Light Full Color+IR WizSense IP Camera 119.0 USD Free shipping Dahua 8MP 5X Zoom WizSense IR Starlight IP Camera MIC IPC-HFW3841T-ZAS-S2 SMD 215.0 USD Free shipping powered by
