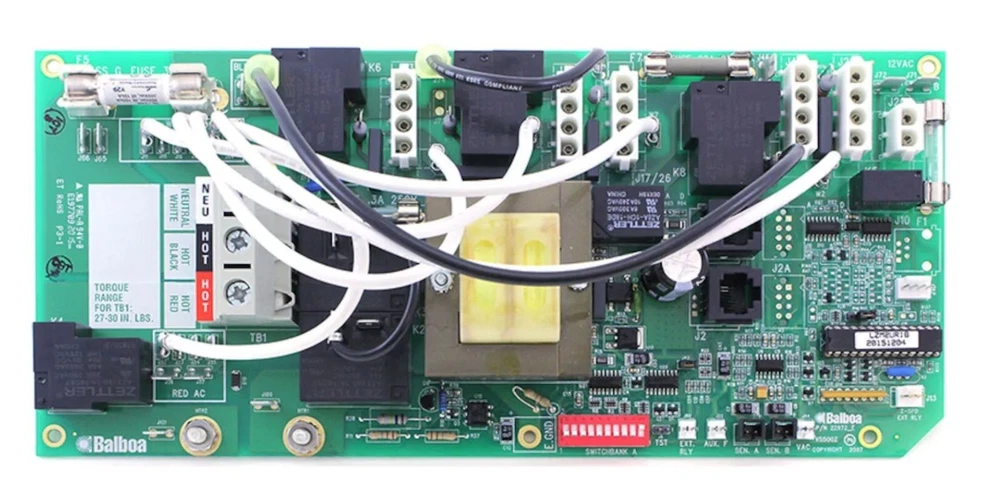

Balboa WG® VS500Z / VS501Z main CIRCUIT BOARD control unit G1152 factory direct
$ 195.07
Description
MONTRÉAL SPA DEPOT Welcomes you ! Please visit my boutique for all Gecko Electronics, Balboa WG®, Waterway & Aqua-Flo pumps original OEM warranty products needs for your spa, hot tub or bath tube https://www.ebay.com/str/montrealspadepot This Ebay item is for: OEM BALBOA WATER GROUP® ValueSystem (VS) SERIES™ OEM Printed circuit board for VS500Z & VS501Z spa pack control model product number # new PN G1152 new plug-'n-click heater connections VS500Z/501Z will operate: Pump#1 (1 or 2-speed) Pump#2 (1-spd) OR Blower optional 24h. circ pump optional ozone generator Direct output A/V 120/240V @ 50/60Hz max 48A Brand New, factory seal, 1 year warranty ! No topside provided, RJ45 (phone style) dual sockets Compatible panels keypads: 52144 (VL200), 53850 (VL404), 52312 (VL200), 55050 (VL260), 53645 (VL260), 55559 (VL260), 54754 (VL260), 55049 (VL260), 55051 (VL260), 53566 (VL260), 53777 (VL260), 51223 (VL404), 51248 (VL404), 53646 (VL240), 53565 (VL240), 55129 (VL400), 50176 (VL400), 54094 (VL401), 54251 (VL401), 54107 (VL402), 54093 (VL402), 54104 (VL403), 51676 (VL403), 55349 (VL406T), 55570 (VL406T) Can run as a VS500Z with any rectangular topside control panel - medium or large, VL600 3 or 4 button, VL260 3 or 4 button. Balboa products infos: Built on patented M7 sensor technology US & Canadian safety approvals Custom designed plastic enclosure 120/240v convertible power supply High reliability - built-in & tested Easy to install & service Integrated functionality Value Series Comparison Chart Device/Function VS 500 VS 501 VS 502 VS 510S Circ Pump Continuous Continuous 24 Hr or 3°F above set temp shut off Continuous Pump 1 (max 12A) 2 Speed 2 Speed 2 Speed 2 Speed Pump 2 (max 12A) 1 Speed 1 Speed 1 Speed Blower (max 8A) 1 Speed 1 Speed 1 Speed Spa Light Control FiberEFX™ Yes Yes Yes No Synchronized MoodEFX™ Yes Yes Yes Yes Value Series Controls Next Generation of Entry Level Hot Tub Control Systems The Value Series (VS) family of hot tub control systems were designed using Balboa’s patented M7 temperature and flow sensor technology and a new universal control platform. These features increase the reliability, ease of installation and serviceability of the control. Designed for Easy Installation and Service The VS family is based on a common universal control platform, which increases feature flexibility while reducing installation and configuration problems. The VS family has exceptionally good feature flexibilities, so its performance is competitive with much higher-end products. The units incorporate Balboa’s patented M7 temperature probe technology, which eliminates the more failure prone pressure switches and simplifies the installation process by not having to drill additional holes in the spa. Flexible, High Reliability, Feature Rich The systems have a plastic enclosure to eliminate water intrusion. Connectors are built on to the circuit board minimizing wires and simplifying service. The different models have controls for a single two-speed pump or an additional blower or pump. All models featurea convertible power supply that can be wired for 120 or 240 volts, a 1.0, 1.5, 4.0, or 5.5 Kw heater and support mini, duplex or standard digital panels. registered trademark of Balboa Water Group ® ------------------------------------------------------------------ OEM BALBOA WATER GROUP® ValueSystem (VS) SERIES™ OEM Printed circuit board for VS500Z & VS501Z spa pack control model product number # new PN G1152 new plug-'n-click heater connections VS500Z/VS501Z will operate: Pump#1 (1 or 2-speed) Pump#2 (1-spd) OR Blower optional 24h. circ pump optional ozone generator (min. 23 gpm) Direct output A/V 120/240V @ 50/60Hz Brand New, factory seal, 2 years warranty ! No topside provided, RJ45 (phone style) dual sockets COMPLETE OEM PRODUCT FROM BALBOA WATER GROUP®, no refurbished items. Never use or try. Brand new object. Come with 1 year of warranty. Minimum selling retail price: 769.99$ + tx Real cost shipping rates (insured 100%) with shipping calculator 12" x 12" x 4" inches. Weight: 2 lbs Item location: Memphis, TN / Tucson, AZ CANADA: by USPS & CanadaPost Priority Mail International & Expedited parcel 2-9 days, with tracking# USA: USPS & FedEx USPS Priority Mail 1-5 days with tracking# FedEx ground 1-5 days, with tracking# FedEx 2-days 2-3 days with tracking# INTERNATIONAL: USPS + your local Postal services Priority Mail International 6-20 days, with tracking#
