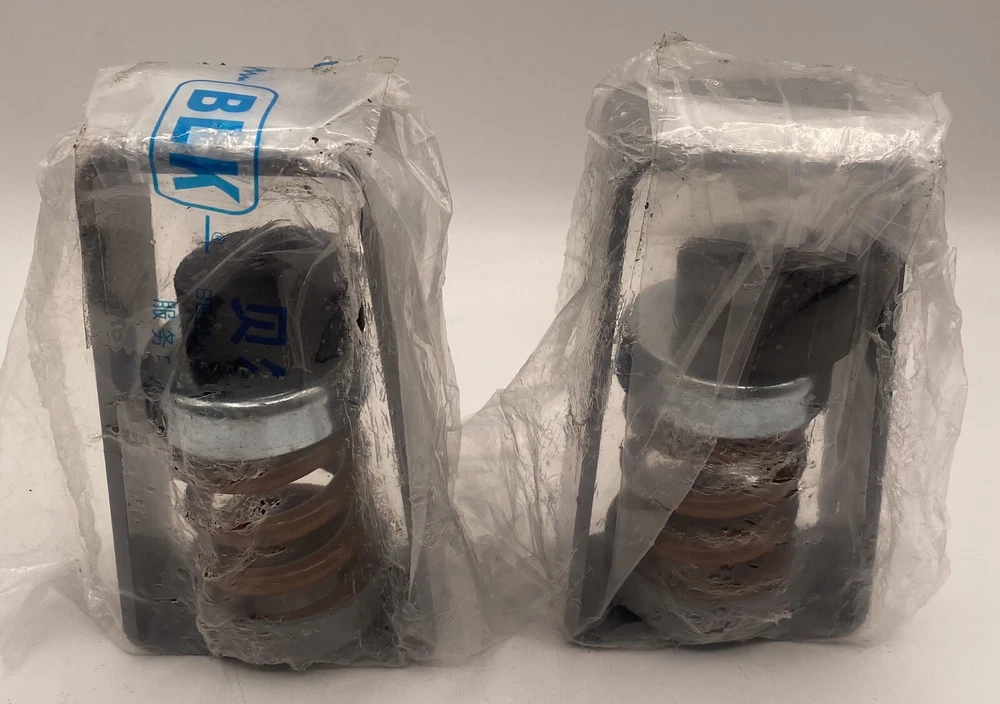

BLK 150mm Anti-Vibration Spring Hangers 150-180 Kg. - 2 Hangers
$ 26.4
Description

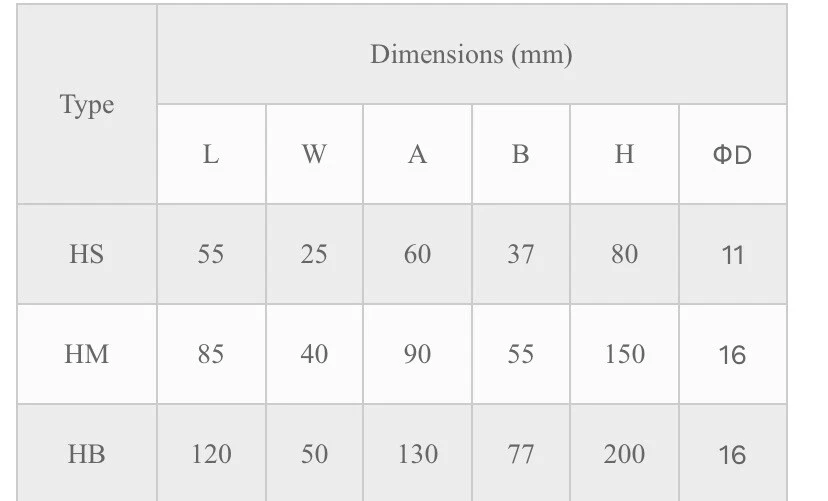

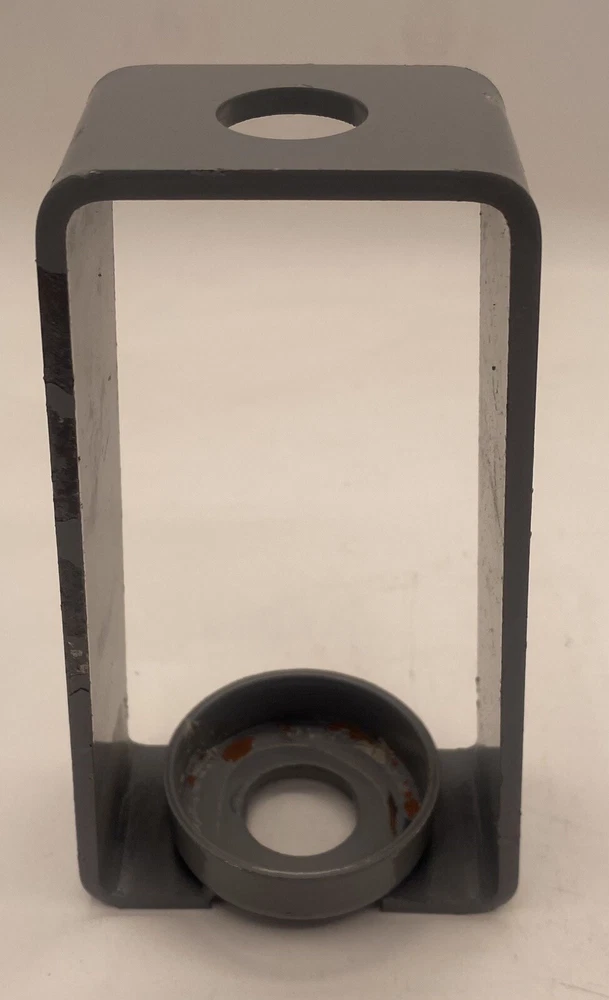

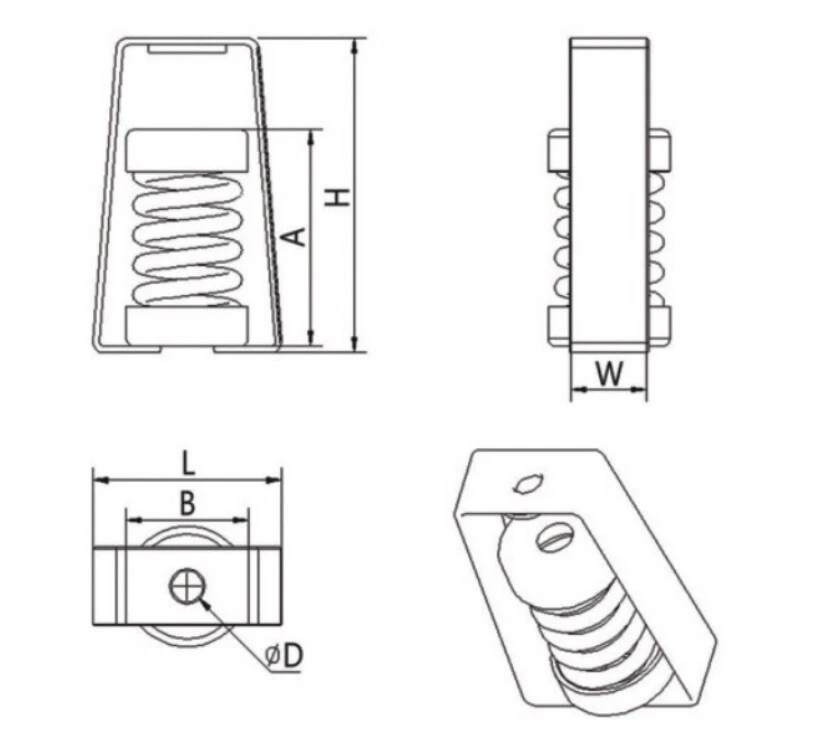

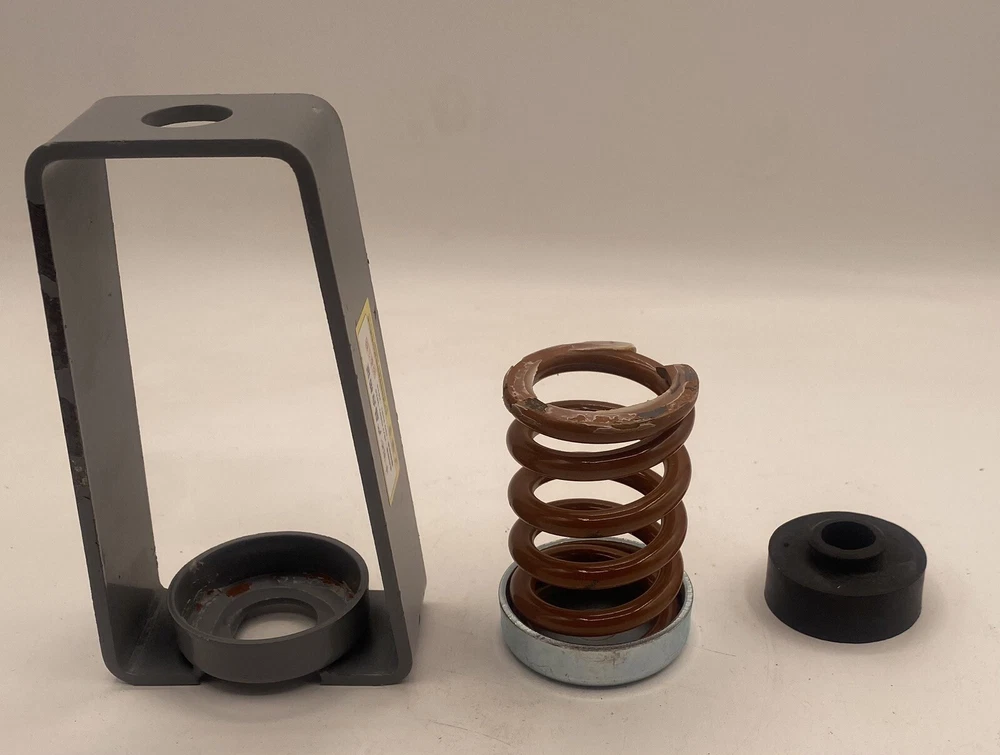

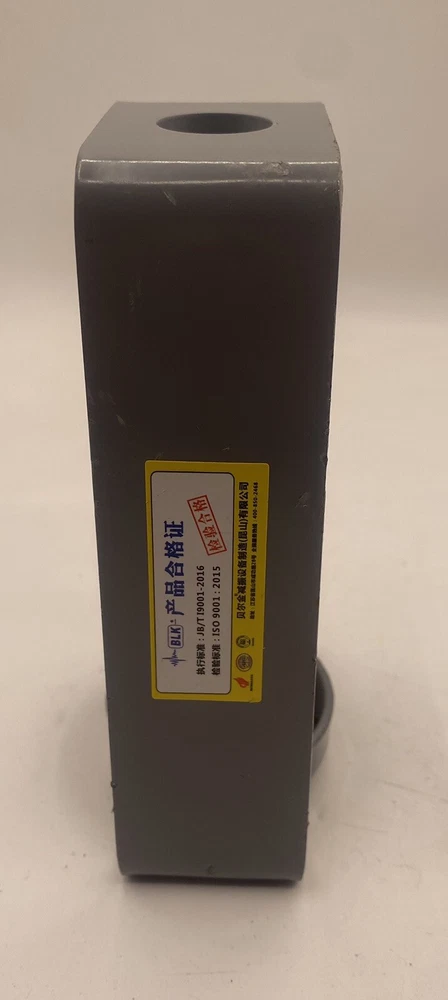

Spring hangers are designed to isolate high frequency vibrations in suspension pipes and equipment to prevent vibration transmission to the building structure. Bellking Spring flexible hangers are designed to isolate low frequency vibrations in suspension equipment and piping. Bellking elastomer and spring hangers are designed to isolate low and high frequency vibrations. The spring used in all hangers has been treated with heat treatment and stress elimination, and the service life is long. The springs are colored and instantly recognize load capacity. Steel spring pipe hangers contain a spring and a rubber acoustic stopper. These low frequency hanger mounts are great for suspension of rotating equipment and piping work. Typical uses include suspending mechanical equipment such as in-line fans, cabinet fans, and piping and ductwork in close proximity to mechanical equipment. Features ● The outer frame is made of multi-layer anti-rust paint and tested bysalt spraytest. The anti-rust effect is good. ● The bottom is anti-skid design. ● The spring is designed with low natural frequency. ● lt can effectively isolate the low frequency noise caused by vibration. Type HM-180 Rated Capacity (Kg) 150-180 Spring Rate (Kg/mm) 7.2 Rated Deflection (mm) 25 Color Code Orange
