4' Wide Table Top Spray Paint Booth (3 Phase) - Made in USA
$ 789.36
Description

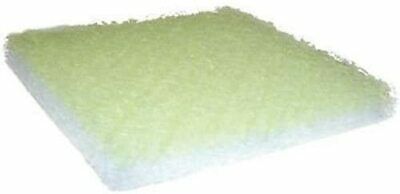

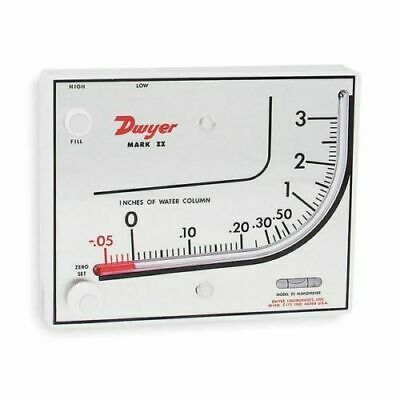

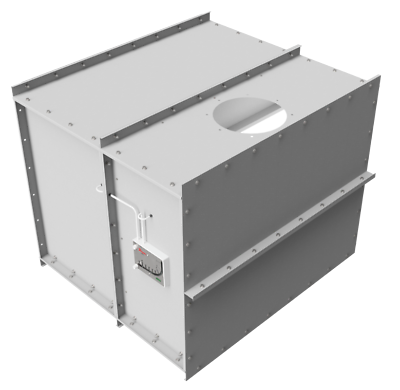

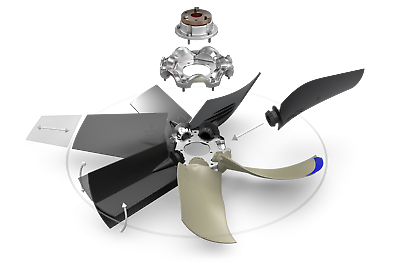

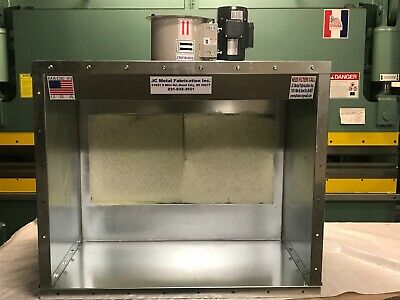

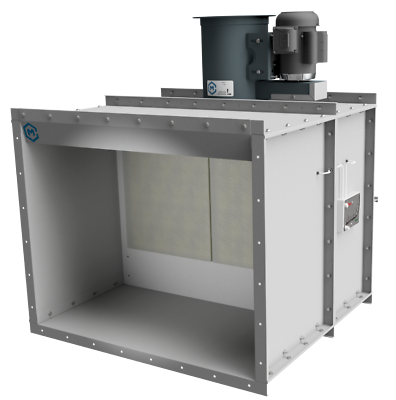

New 4' Wide Table Top Spray Paint Booth Direct From The Manufacturer - Cook Manufacturing - This Spray Paint Booth is designed to meet your business needs and conforms to OSHA & NFPA spray booth regulations. Spray Booth Specifications: Working Dimensions: 44" Wide X 36" Tall X 24" Deep Overall Dimensions: 48" Wide X 40" Tall X 42" Deep (58" With Fan) Exhaust Location: Top Fan Specifications: Inside Diameter: 12" Height: 20" Housing: 18GA Steel Housing Motor Mount: 12GA Steel Motor Mount Drive: V Belt CFM: 1,600 CFM @ .25" Static Pressure Motor: TEFC Motor - 1 Hp - 3 Ph - Mounted Outside Air Stream Voltage: 230/460 V Amperage: 2.94/1.47 A Fan: WingFan 6 Blade Fan With Aluminum Hub Bearings: Dual Pillow Block Bearings - Greaseable Hole Pattern: Eight 7/16" Diameter Holes on a 14" Bolt Circle Included: 1 - Manometer - Dwyer Mark II 1 - 12" Tube Axial Fan With TEFC Motor - 1 Hp - 1 Ph 4 - Fiberglass Paint Arrestor Filters 98.6% Efficiency - 20" X 20" X 2.5" 2 - Wire Filter Holding Grids - 20" X 20" 1 - Lot of Sheet Metal Panels 1 - Lot of Fasteners 1 - Drawings / Assembly Instructions Optional Accessories: - Companion Flanges - Ductwork - Roof Curbs - Auto Dampers - Single Phase Motor Warranty: All products manufactured by Cook Manufacturing are backed by a 1 Year Warranty. Lead Time: Table top spray booths are in stock and ship within 2 business days. Shipping: Free shipping in the continental United States to a commercial address with a loading dock or fork lift. Otherwise, the product can be shipped to and picked up from your local freight terminal.
