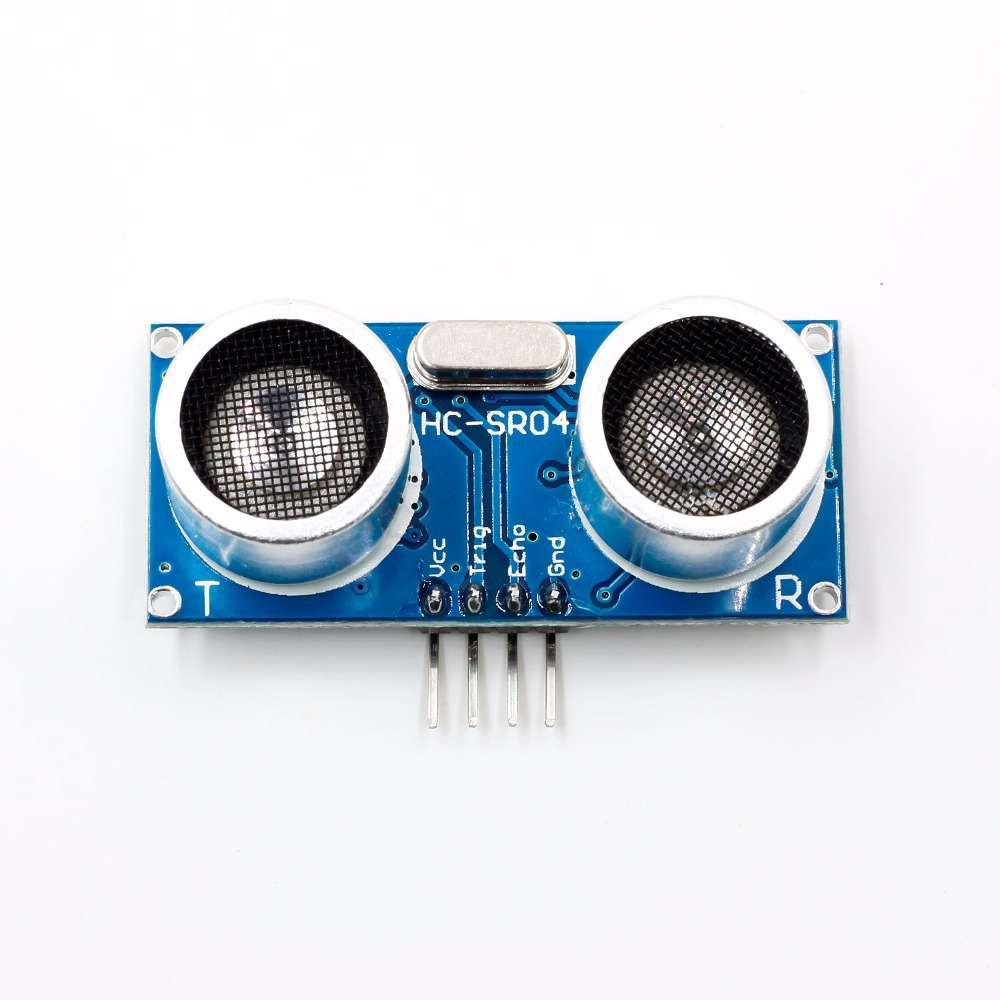

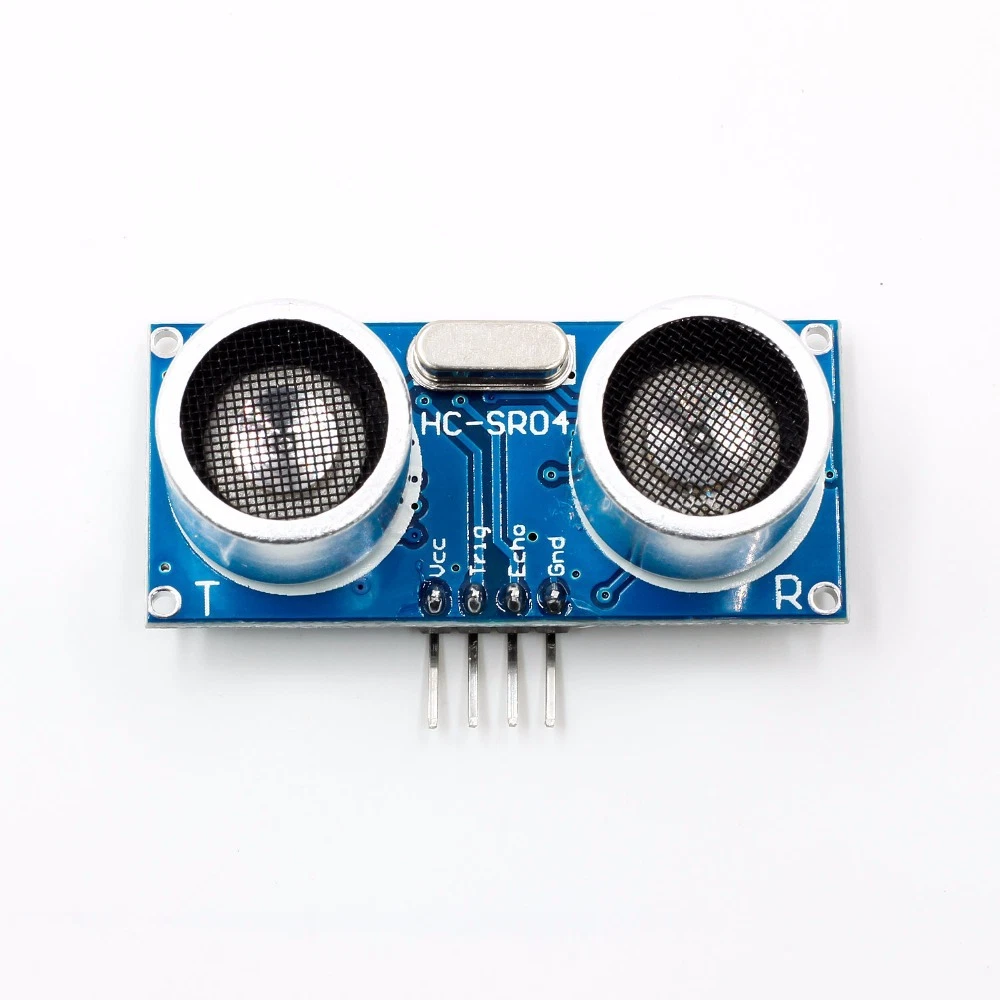

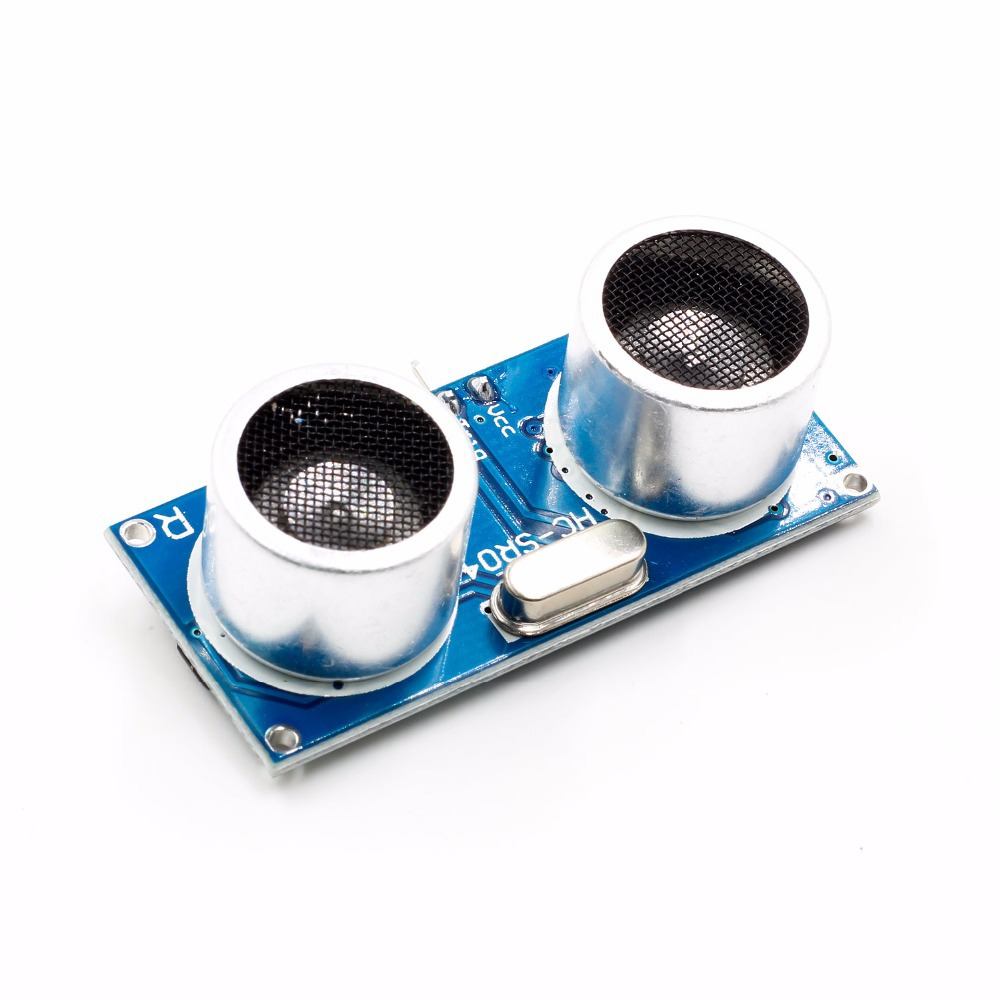

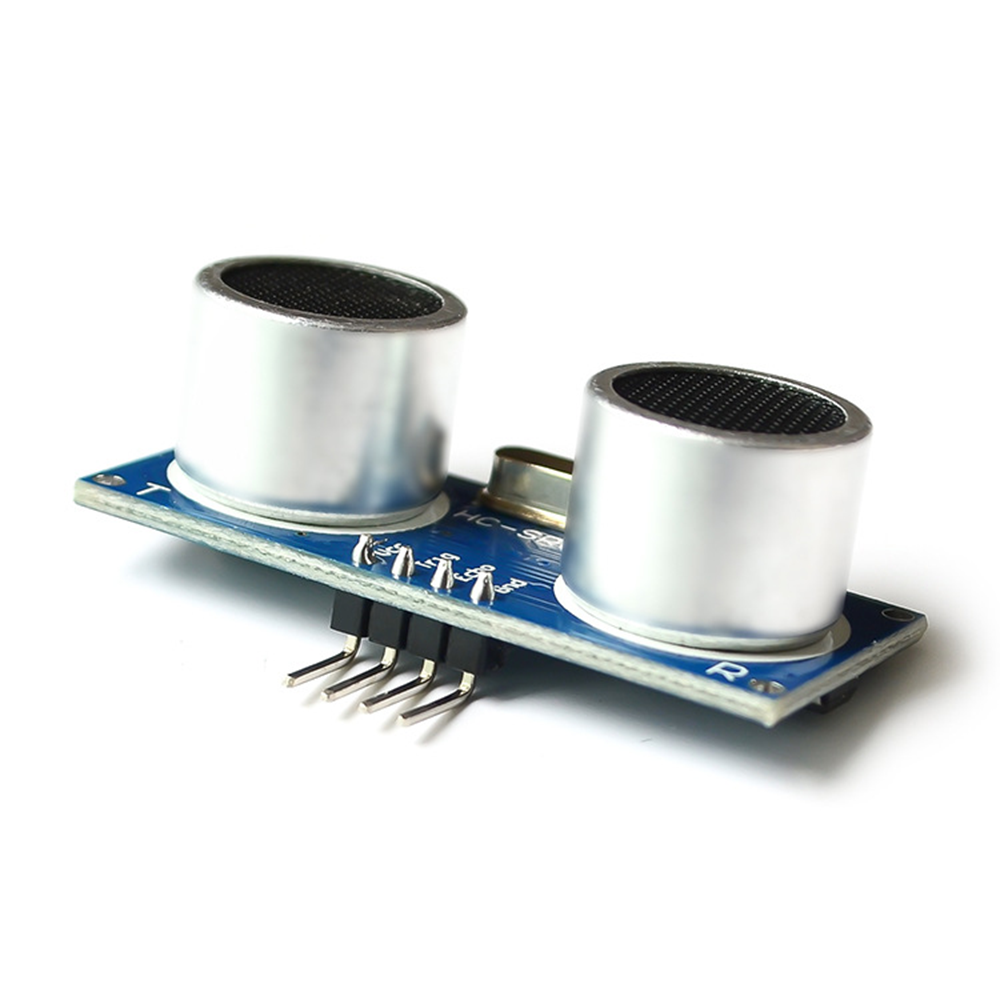

2PCS For HC-SR04 Arduino Ultrasonic Distance Measuring Transducer Sensor Module
$ 5.83
Description

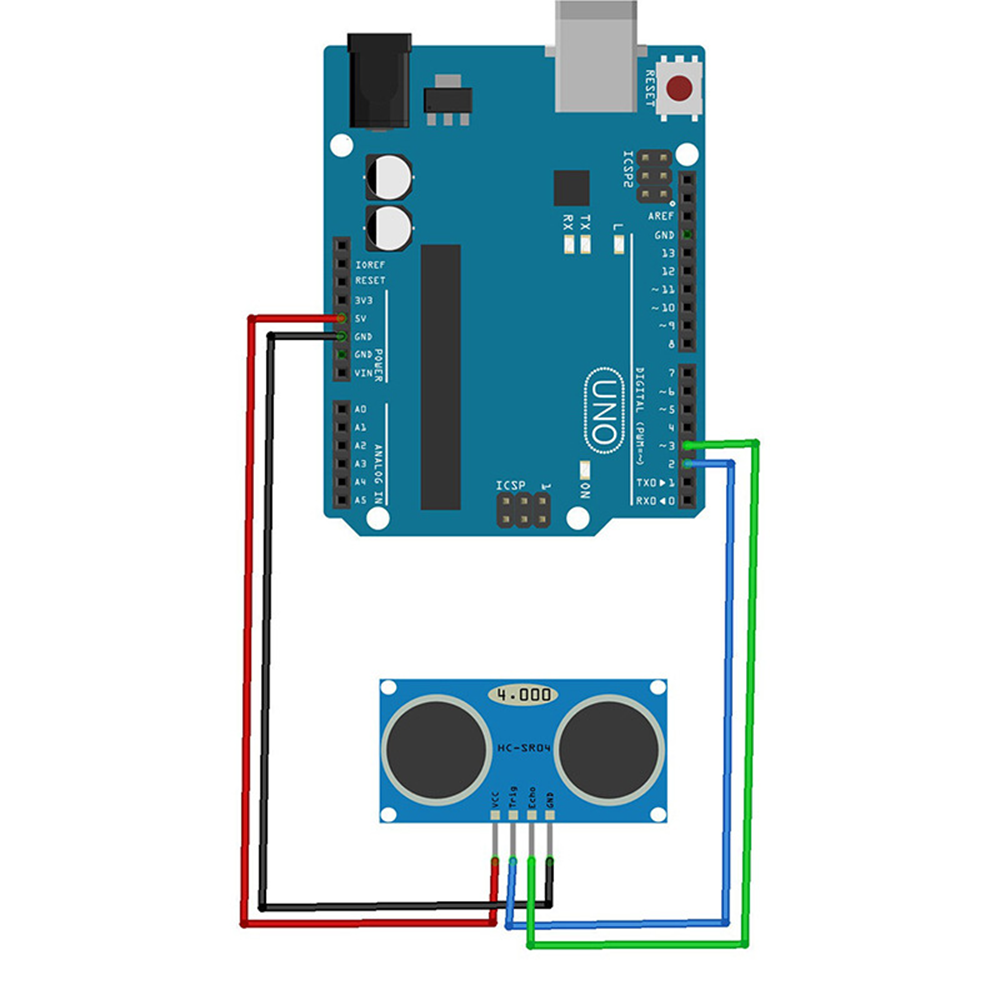

2PCS For HC-SR04 Arduino Ultrasonic Distance Measuring Transducer Sensor Module Welcome contact for available wholesale price, thank you! DESCRIPTION Product Description: The HC-SR04 ultrasonic sensor uses sonar for precise, non-contact distance measurement (2cm to 400cm). Unlike optical sensors, it is unaffected by sunlight or dark colors, providing stable readings in an easy-to-use package with integrated transmitters and receive PRODUCT SPECIFICATIONS: Working Voltage: 5 VDC Static Current: Less than 2mA Output Signal: Electrical frequency signal (High 5V, Low 0V) Sensor Angle: Not more than 15 degrees Detection Distance: 2cm - 400cm (1 inch to 13 feet) Accuracy: Up to 3mm Input Trigger Signal: 10us TTL impulse Echo Signal: Output TTL PWL signal Item Size: 44mm * 20mm * 15mm Net Weight: 11g MODE OF CONNECTION: VCC: 5V DC supply input Trigger (T): Control signal input (10us TTL impulse) Echo (R): Echo signal output (duration is time from transmit to receive) Ground (GND): Ground wire OPERATION GUIDELINES: Supply the module with 5V. Trigger the ranging process by applying a 10us high-level (TTL) signal to the Trigger (T) port. The module automatically sends an output square wave through its acoustic transducer and tests for a returned signal. If a signal returns, the Echo (R) port will output a high-level signal. The duration of this high-level signal represents the time from transmission to reception. CALCULATION: Distance to object = (Duration of ECHO high level signal * sound velocity of 340m/s) / 2 PACKAGE INCLUDES: 2 x HC-SR04 Ultrasonic Distance Sensor Module ESTIMATED DELIVERY TIME We ship orders in 1-5 days after payment. Remote area surcharge will be extraly applied if you select Expedited shipping and your shipping address is outside of couriers' normally served areas. Please contact us before bidding if you are not sure if your address is in normal areas. - Economy: 15-60 days - Standard: 10-35 days - Expedited: 4-7 days Note: Average delivery time for reference only, actual time varies for different countries and related to uncontrollable factors such as weather, natural disasters and pandemic. WARRANTY - Exchange/replace item within 30 days counting from the day you receive merchandise. - Buyer pay the return shipping cost. - Exchange/replace item should be new. CONTACT US Please do not leave neutral or negative feedback, If you have any questions, please contact us, Our aim is to provide top level customer service, Normally so we will try our best to solve any problem. We reply your ebay message within 24 hours, thank you!
L'objet livré était tout à fait conforme à l'annonce. Le points très positifs sont: Tout d'abord le délai de livraison: prévue le 28/11/25 elle est arrivée fin octobre. Qualité de l'emballage: carte mère très bien protégée. qualité du produit: vendu pour neuf(et à prix très raisonnable) il est neuf. Je suis extrêmement satisfait de ce vendeur.
Great set of casters for my tool box. I work in an aluminum foundry and these casters are well built.great packaging value and fast shipping. Everything described just as pictured
Great quality, and very fast delivery time. Well packaged. I will definitely buy from this store again. It is always a pleasure buying from this seller
Related products
Keyence SR-1000W Automatic Focus Code Reader, CMOS 1D & 2D, 1280x1024p

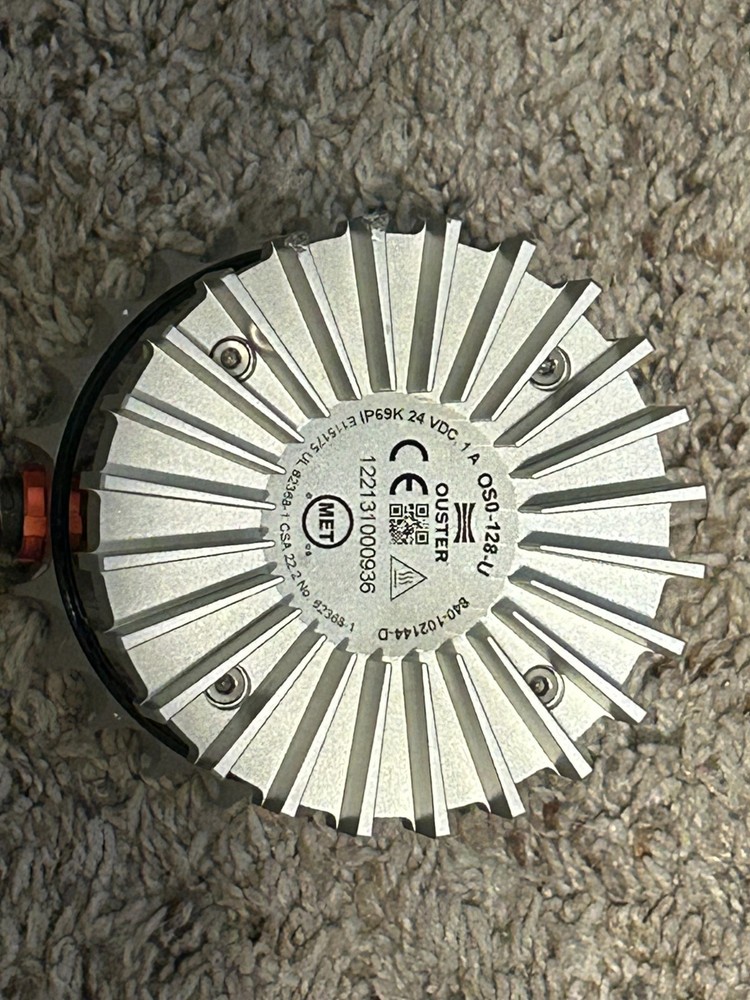

$ 153.07Ouster LiDAR OS0-128-U Rev D

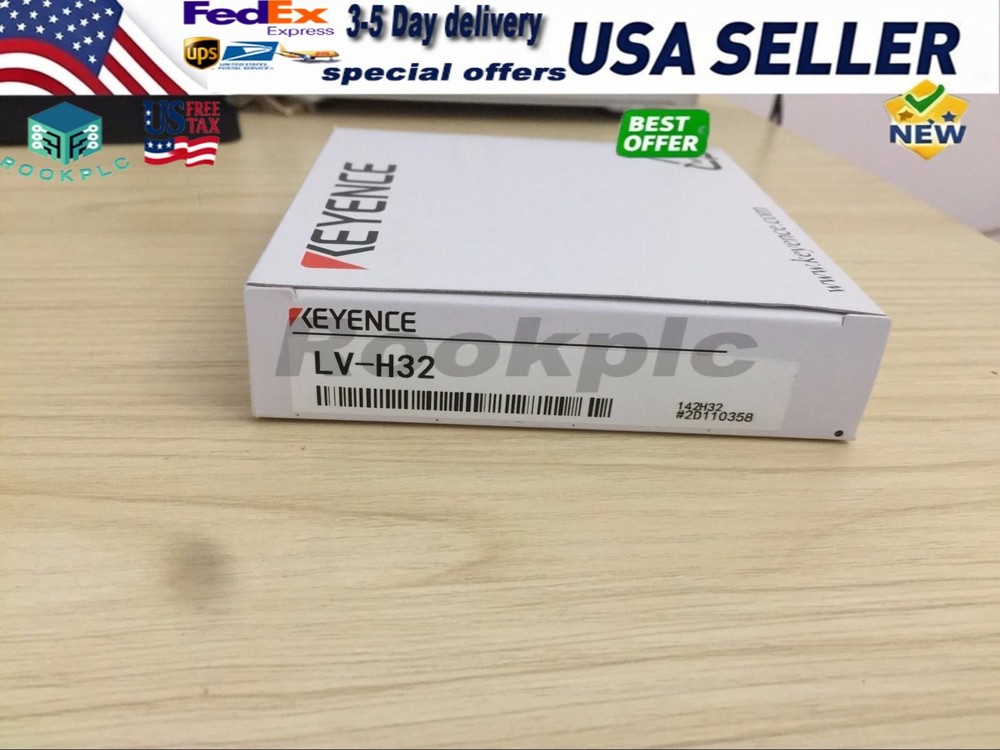

$ 527.481PC Keyence LV-H32 Laser Sensor LVH32 New Free Shipping
