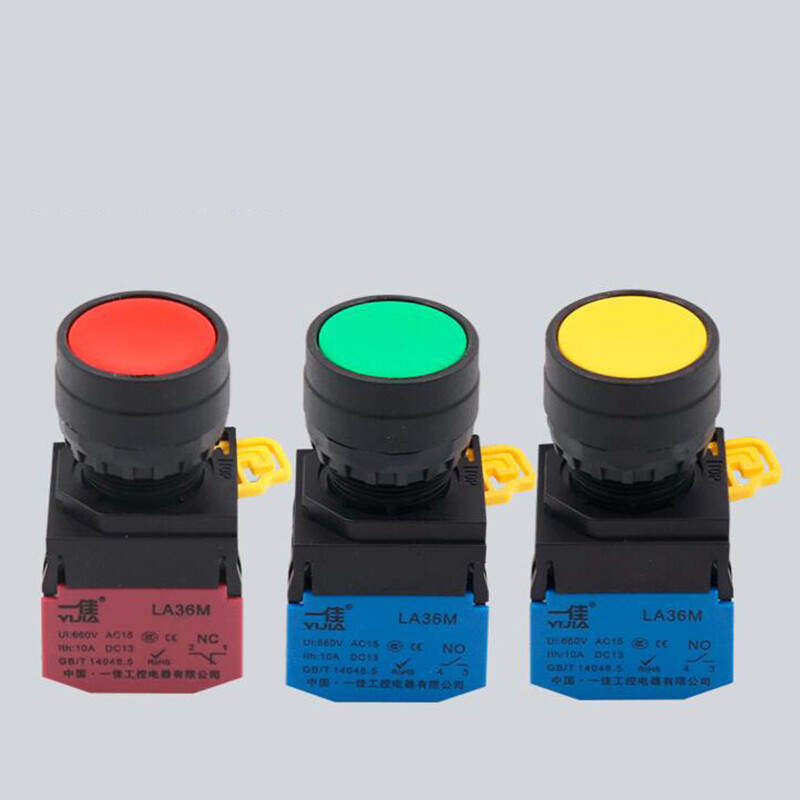

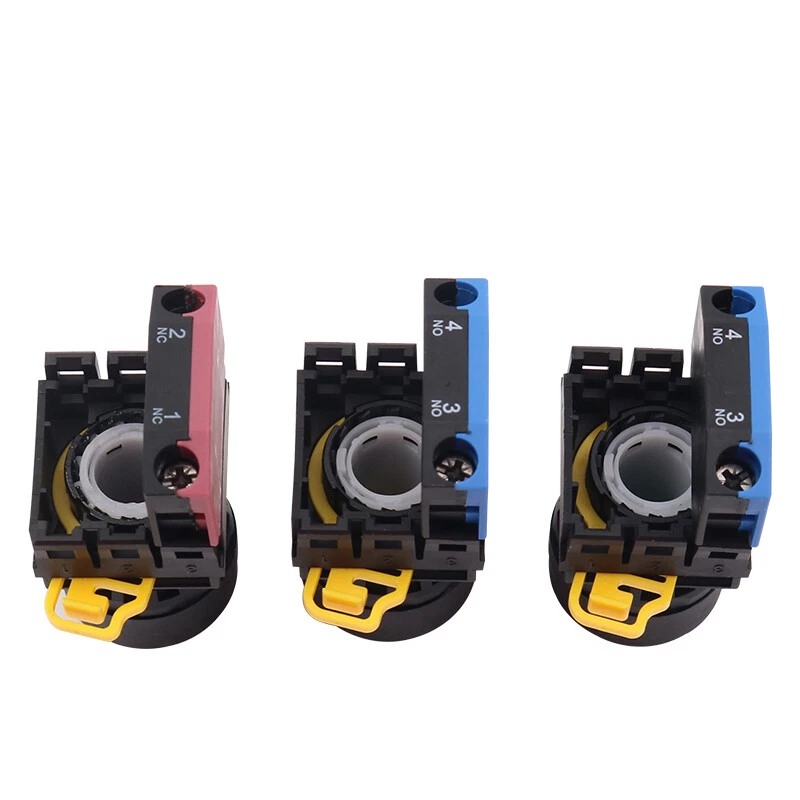

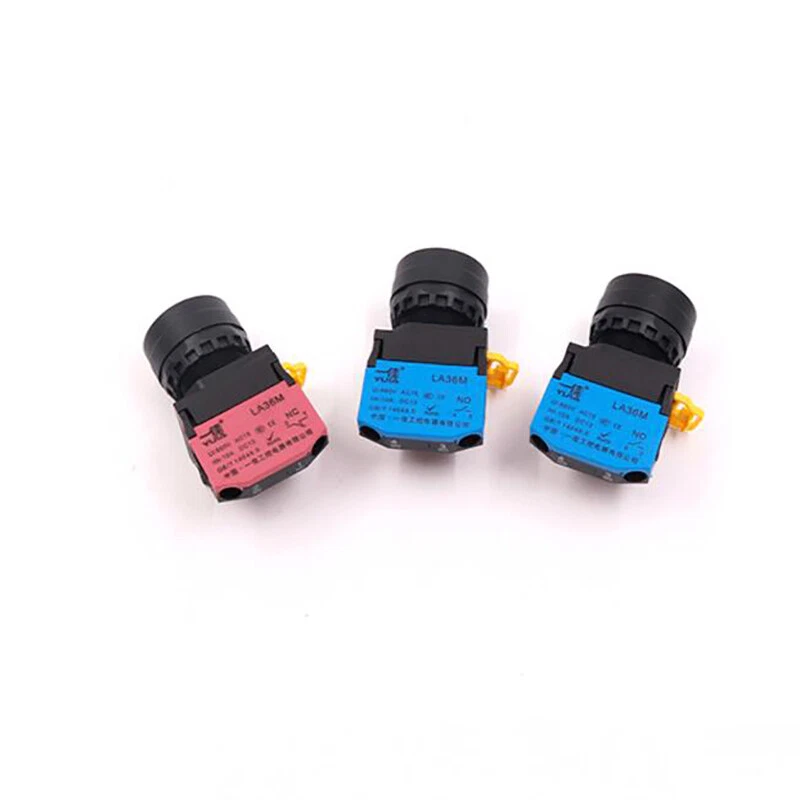

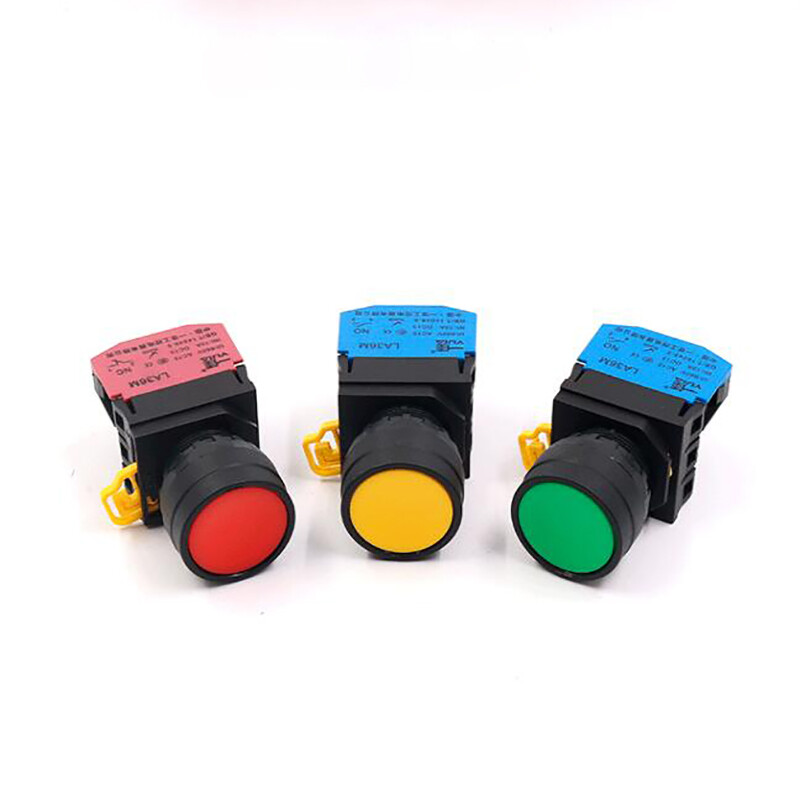

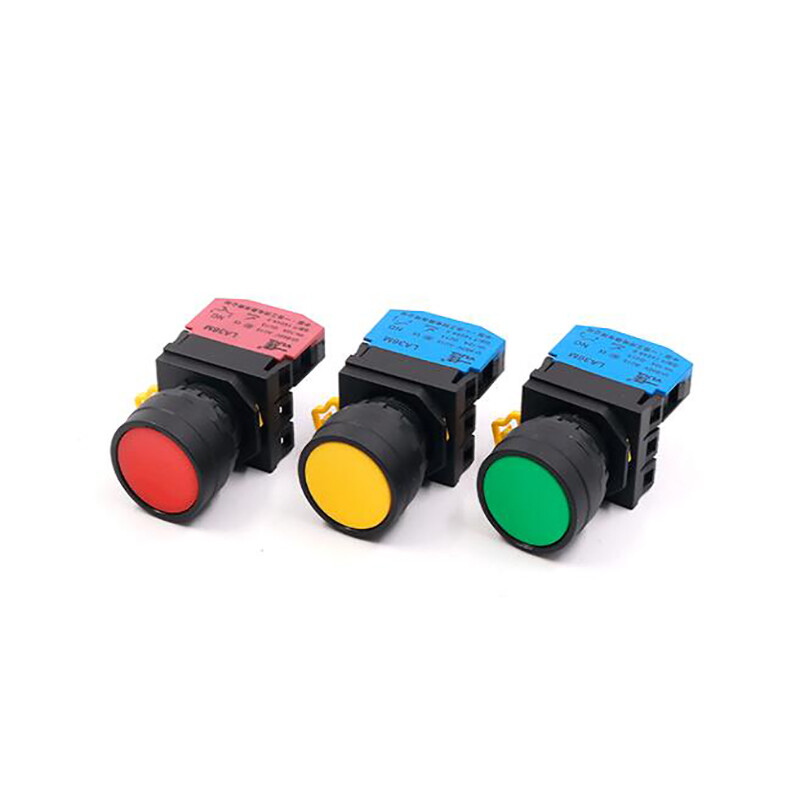

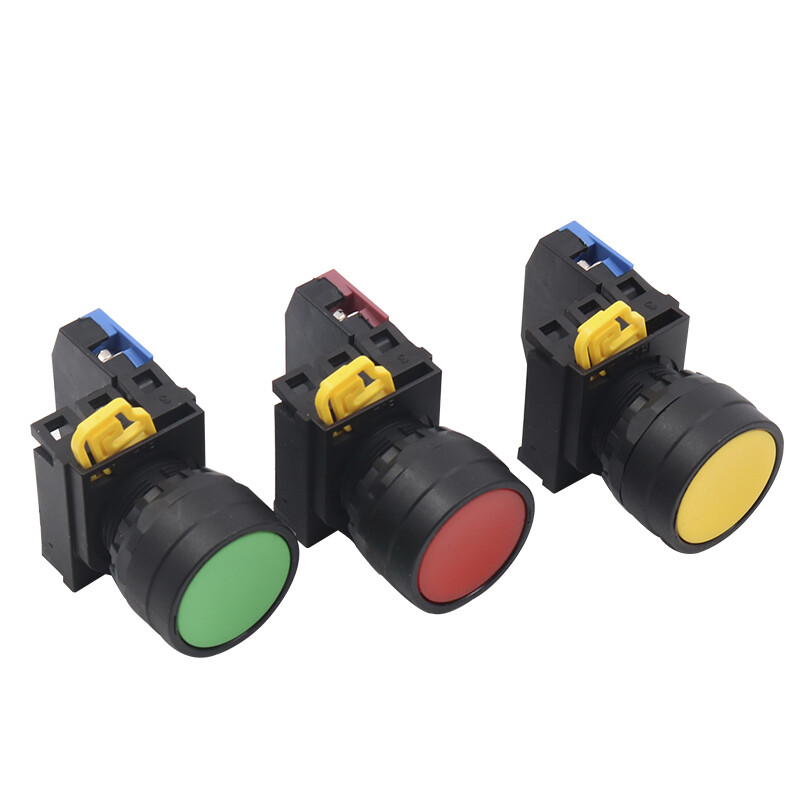

22mm Momentary/Latching Push Button Switch in Black White Red Green Blue Yellow

$ 1.39

Features: Heavy duty Button Colour: Multicoloured Finish: Various Type: Switch Hardware Switch Style: Push Button/Retractive Number in Pack: 1/2/5 Suitable For: Exterior Country/Region of Manufacture: China Application: Commercial, Control Equipment Panels, Electronics, Electrical Wiring, Industrial, Instruments, Large Appliances, Light Control MPN: Does not apply Model: Flat Push Button Momentary/Latching Switch Brand: Unbranded Current Type: AC/DC Contact Material: Silver alloy Smart Home Protocol: N/A Mounting Style: Panel Resistance Properties: Dustproof Smart Home Compatibility: N/A Room: Any Room

Description

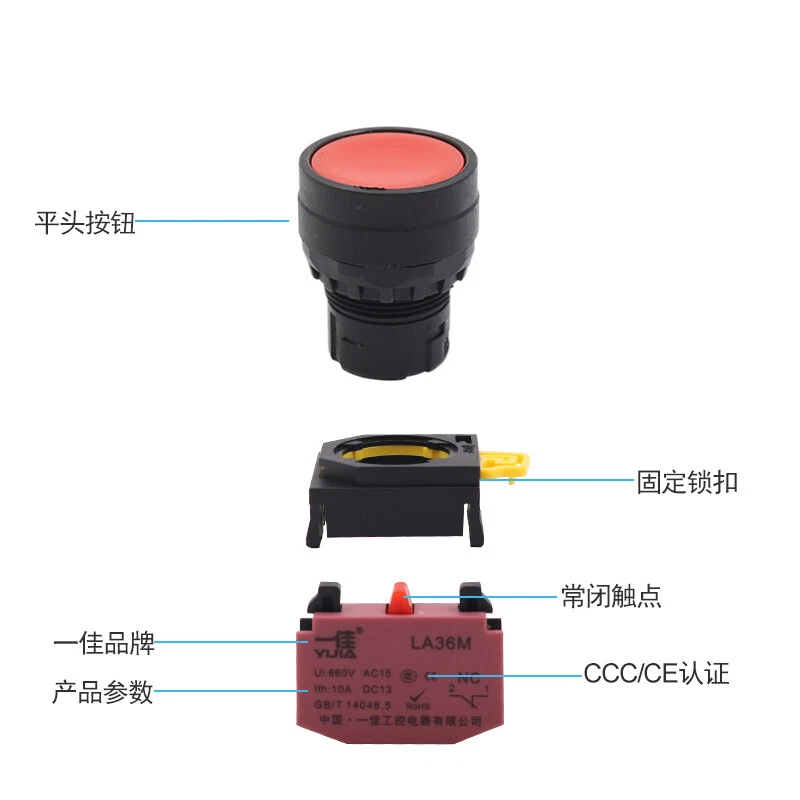

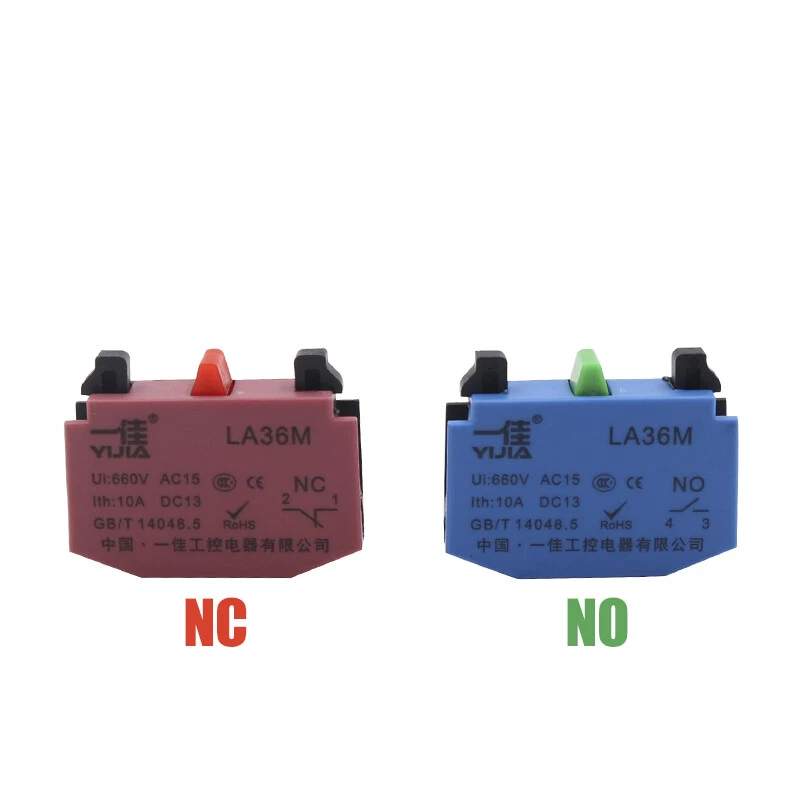

22mm Flat Push Button Momentary/Latching Switch Product Information: 22mm Flat Push Button Switch Black White Red Green Blue Yellow Suitable for Panel Mounting Hole Size: 22mm Rated insulation voltage（Ui）: 660V Contact: Silver Alloy Contact: 1 NO / 1NC / 1NO 1NC / 2NO / 2NC Working mode: Momentary / Latching Features: - Thermosetting material, good heat resistance, will only gradually carbonize even if it encounters an open flame, and will not burn, making it safer to use. - Adapting to more extreme use environments. Button function description: Momentary : press the switch, power on the load, release the finger, reset the button, power off the load Latching : press the switch, load power on, and then press the switch, load power off Description of contact switch: Normally open (NO): default state,Normally Open; The contacts close when pressed（Green means NO） Normally close(NC): default state, Normally Closed; Contacts open when pressed（Red means NC） P a ckage Including: According to your choice.
